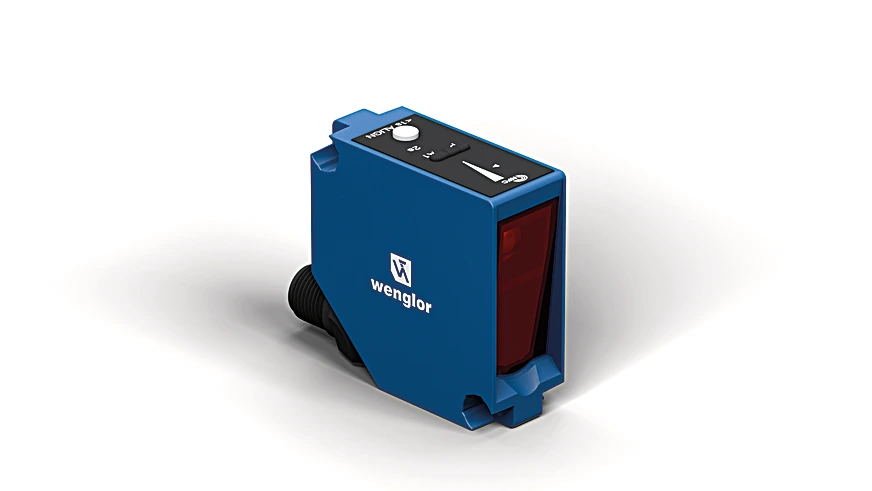

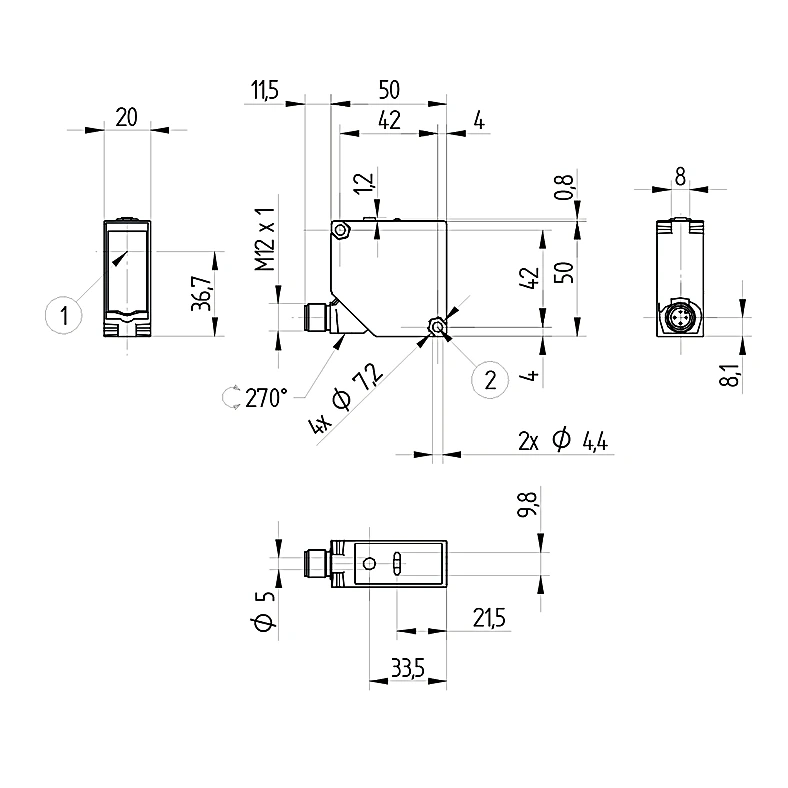

Wenglor P1PK102 Retro-Reflex Sensor for Transparent Objects

Retro-Reflex Sensor for Transparent Objects.

$357.00
Part Number
  • P1PK102
Highlights...

Features

  • Dynamic readjustment of the switching threshold
  • High-end
  • Special for glass, PET and films
  • Wireless settings via NFC
  • Innovative display unit for alignment and diagnosis
  • Range: 3,500 mm
  • Reference Reflector/Reflector Foil: RQ100BA
  • Clear Glass Recognition: yes
  • Smallest Recognizable Part: see table 2
  • Switching Hysteresis: < 5 %
  • Light Source: LED, red
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optics: Single-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 15 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 1,000 Hz
  • Switching frequency (speed mode): 2,000 Hz
  • Response Time: 0.5 ms
  • Response time (speed mode): 0.25 ms
  • Temperature Drift: < 3 %
  • Temperature Range: -40°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT
  • Interface: IO-Link V1.1
  • Data Storage: yes
  • Protection Class: III
  • Setting Method: Teach-in/NFC

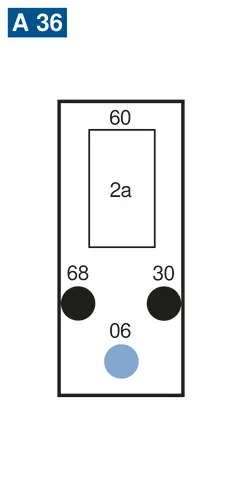

  • Display unit: Bar display
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

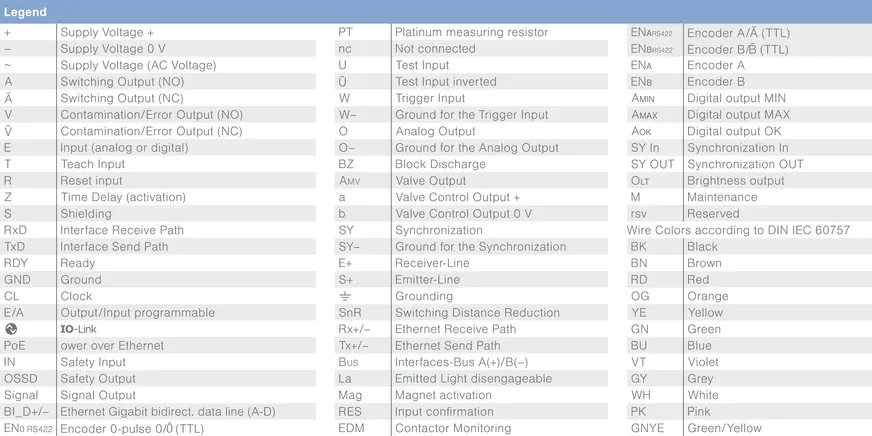

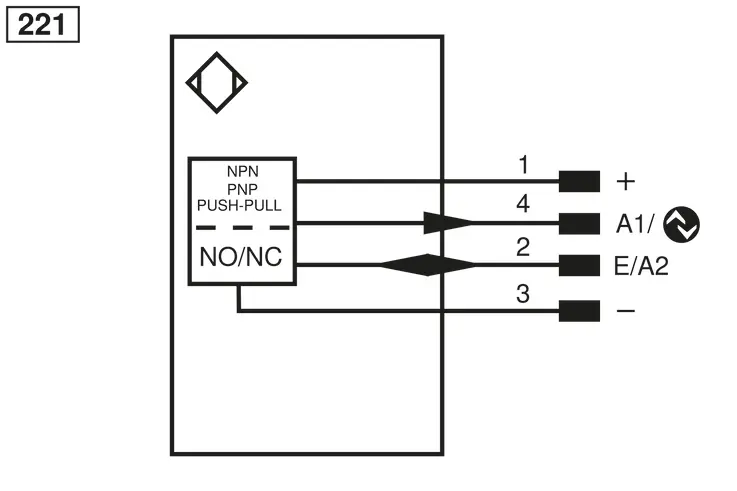

  • Connection Type: Plug variant
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 53 g
  • MTTFd (EN ISO 13849-1): 1,631.95 a
  • Scope of delivery: 1 × Z1PE002 mounting set, 1 × initial start-up instructions, 1 × sensor
  • Contamination Output: yes
  • IO-Link: yes
  • PNP NO: yes
  • NFC interface: yes
  • Output: Push-pull, PNP, Contamination Output
  • Circuit: NC, NO, NC/NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light, Dynamic readjustment
  • Working Distance: 0,3 m, 1,7 m, 3,5 m
  • Light Spot Diameter: 20 mm, 55 mm, 110 mm
  • RQ100BA: 0 to 3.5 m
  • RE18040BA: 0 to 2.5 m
  • RQ84BA: 0 to 3 m
  • RR84BA: 0 to 3.5 m
  • RE9538BA: 0 to 1.4 m
  • RE6151BM: 0 to 2.8 m
  • RR50_A: 0 to 2.5 m
  • RE6040BA: 0 to 2.8 m
  • RE8222BA: 0 to 1.6 m
  • RR34_M: 0 to 1.8 m
  • RE3220BM: 0 to 1.1 m
  • RE6210BM: 0 to 0.8 m
  • RR25_M: 0 to 1 m
  • RR25KP: 0 to 0.5 m
  • RR21_M: 0 to 0.7 m
  • Z90R005: 0 to 1.8 m
  • ZRAE02B01: 0 to 1.5 m
  • ZRME01B01: 0 to 0.35 m
  • ZRME03B01: 0 to 1.5 m
  • ZRMR02K01: 0 to 0.5 m
  • ZRMS02_01: 0 to 0.7 m
  • RF508: 0 to 0.7 m
  • RF258: 0 to 0.7 m
  • ZRDF__K01: 0 to 2.2 m
  • Z91R001: 0 to 1.5 m
  • ZRDF10K01: 0 to 2.2 m
  • Complementary Products: Protective Screen, Reflector, Reflector Foil, IO-Link Master, Software, Protective housing set, Dust extraction tube
The retro-reflex sensor for transparent objects, such as clear glass, works with red light and a reflector. It has a IO-Link interface with a data storage function as well as additional configuration and diagnostic options. The interface can also be used to configure the sensor settings (PNP/NPN, NC/NO, switching threshold, error output) as well as for reading out switching statuses and signal values. The dynamic readjustment of the switching threshold function automatically adjusts this for contamination, aging, or temperature deviations, meaning that these factors have almost no effect on functionality.
