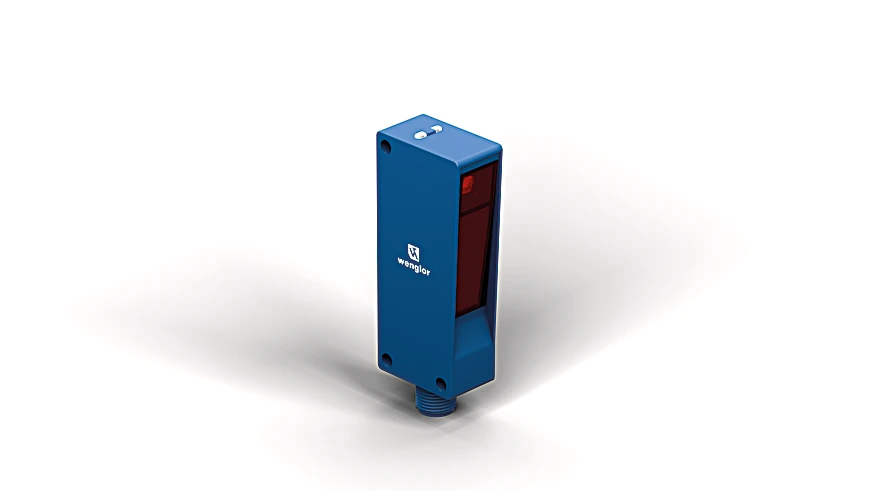

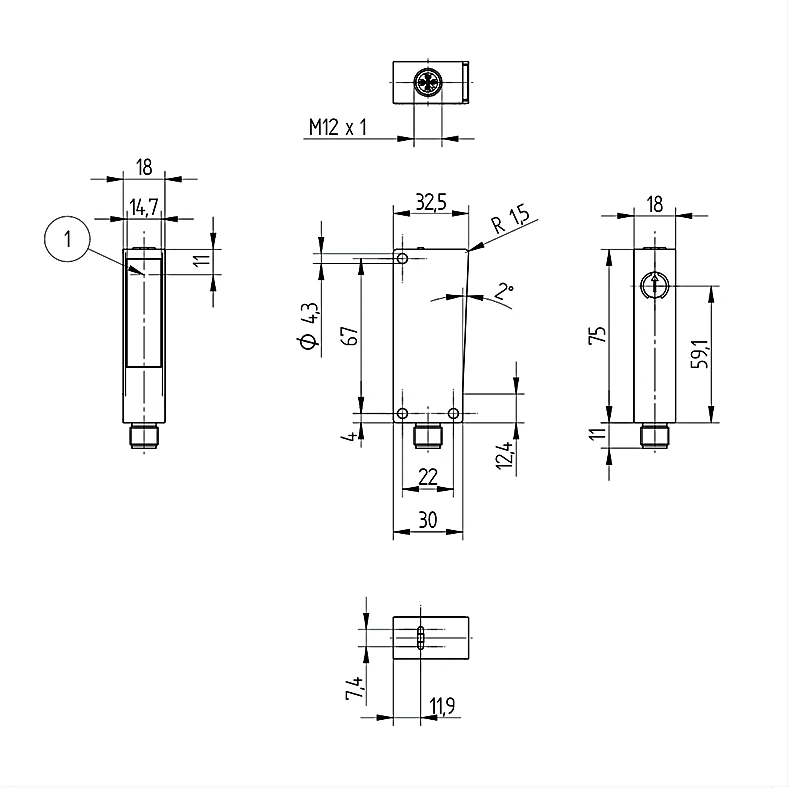

Wenglor P1NL401S01 Retro-Reflex Sensor Universal

Retro-Reflex Sensor Universal.

$694.00
Part Number
  • P1NL401S01
Highlights...

Features

  • Condition monitoring
  • High switching frequency
  • IO-Link 1.1
  • Detect extremely small parts starting at 0.75 mm
  • Range: 9,500 mm
  • Reference Reflector/Reflector Foil: RE6151BM
  • Min. Distance to Reflector: 0 mm
  • Smallest Recognizable Part: see table 2
  • Switching Hysteresis: < 15 %
  • Light Source: Laser, red
  • Light spot geometry: Collimated
  • Polarization Filter: yes
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Optics: Single-Lens Optic
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 20 mA
  • Switching Frequency: 2,000 Hz
  • Switching frequency (speed mode): 3,500 Hz
  • Response Time: 0.25 ms
  • Response time (speed mode): 0.14 ms
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III
  • FDA Accession Number: 1911373-000

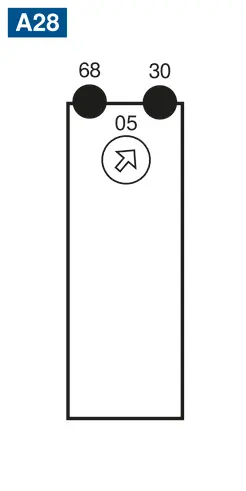

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67, IP68

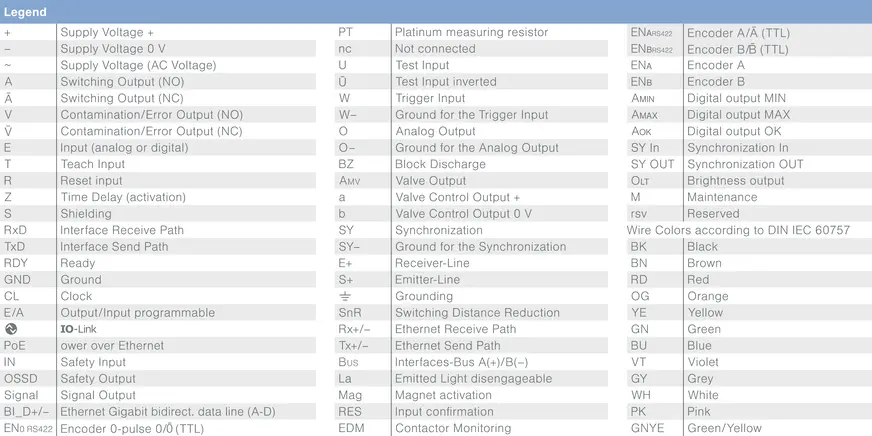

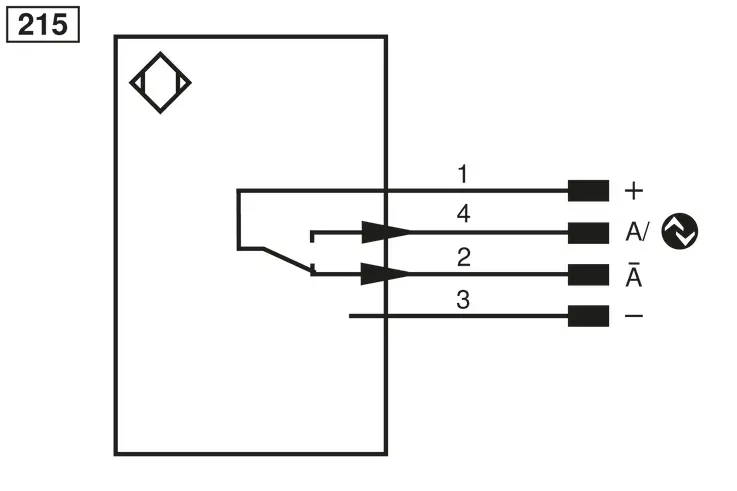

  • Connection Type: Plug variant
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 30 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • IO-Link: yes
  • PNP NC, PNP NO: yes
  • Output: Push-pull, NPN, PNP
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Emitted light
  • Working Distance: 2 m, 5 m, 9,5 m
  • Light Spot Diameter: 20 mm, 50 mm, 70 mm
  • RQ100BA: 0.07 to 9.5 m
  • RE18040BA: 0.07 to 6 m
  • RQ84BA: 0.07 to 8 m
  • RR84BA: 0.07 to 9.5 m
  • RE9538BA: 0 to 3 m
  • RE6151BM: 0 to 9.5 m
  • RR50_A: 0.06 to 8.5 m
  • RE6040BA: 0.07 to 9 m
  • RE8222BA: 0.06 to 5 m
  • RR34_M: 0 to 4.5 m
  • RE3220BM: 0 to 5 m
  • RE6210BM: 0 to 2 m
  • RR25_M: 0 to 3.3 m
  • RR25KP: 0 to 1.3 m
  • RR21_M: 0 to 1.8 m
  • Z90R004: 0 to 3.9 m
  • Z90R005: 0 to 5.3 m
  • ZRAE02B01: 0.07 to 4.5 m
  • ZRME01B01: 0 to 1 m
  • ZRME03B01: 0 to 3.8 m
  • ZRMR02K01: 0 to 1.5 m
  • RF505: 0 to 1.5 m
  • RF508: 0 to 1.6 m
  • RF258: 0 to 1.5 m
  • ZRAF08K01: 0 to 1.5 m
  • ZRDF03K01: 0 to 6 m
  • ZRDF10K01: 0 to 6 m
  • Complementary Products: Reflector, Reflector Foil, Dust Extraction Tube STAUBTUBUS-03, IO-Link Master, Set Protective Housing Z1NS001, Software
The retro-reflex sensor works with a fine laser beam and a reflector. The laser class 1 collimated laser beam detects objects, for instance, when checking installation, feed or presence, starting at a size of 0.75 mm over the entire range. The IO-Link interface can be used to configure retro-reflex sensors (PNP/NPN, NC/NO, switching distance)and to output switching statuses and signal values.
