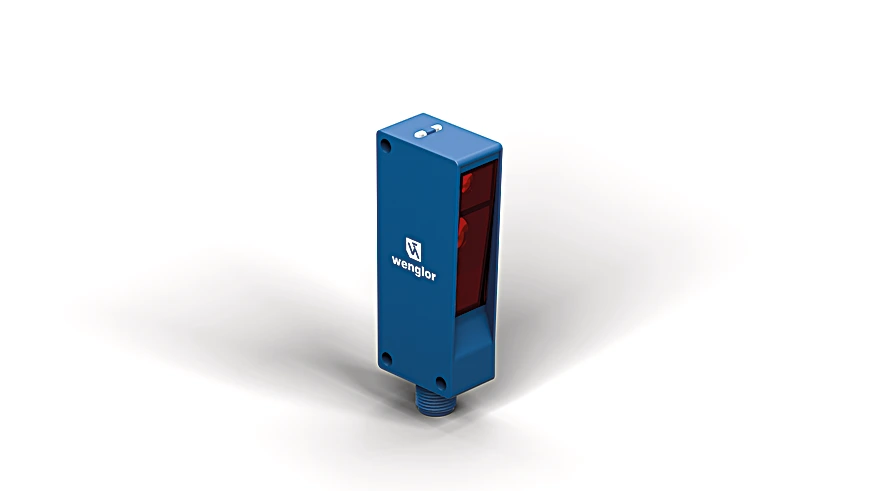

Wenglor P1NH706 Reflex Sensor with Background Suppression Mechanical

Reflex Sensor with Background Suppression Mechanical.

$565.00
Part Number
  • P1NH706
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Laser class 1
  • Recognition of small parts
  • Range: 300 mm
  • Setting Range: 65 to 300 mm
  • Switching Hysteresis: < 1 %
  • Light Source: Laser, red
  • Wavelength: 655 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 1,000 Hz
  • Switching Frequency (interference-free mode): 500 Hz
  • Response time (interference-free mode): 1 ms
  • Response Time: 0.5 ms
  • Temperature Drift: < 2 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 100 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

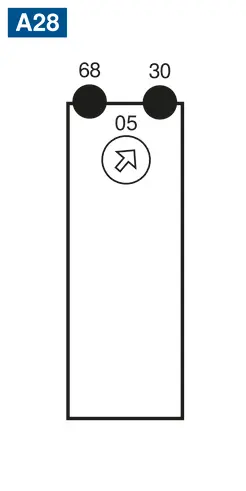

  • Setting Method: Single-turn

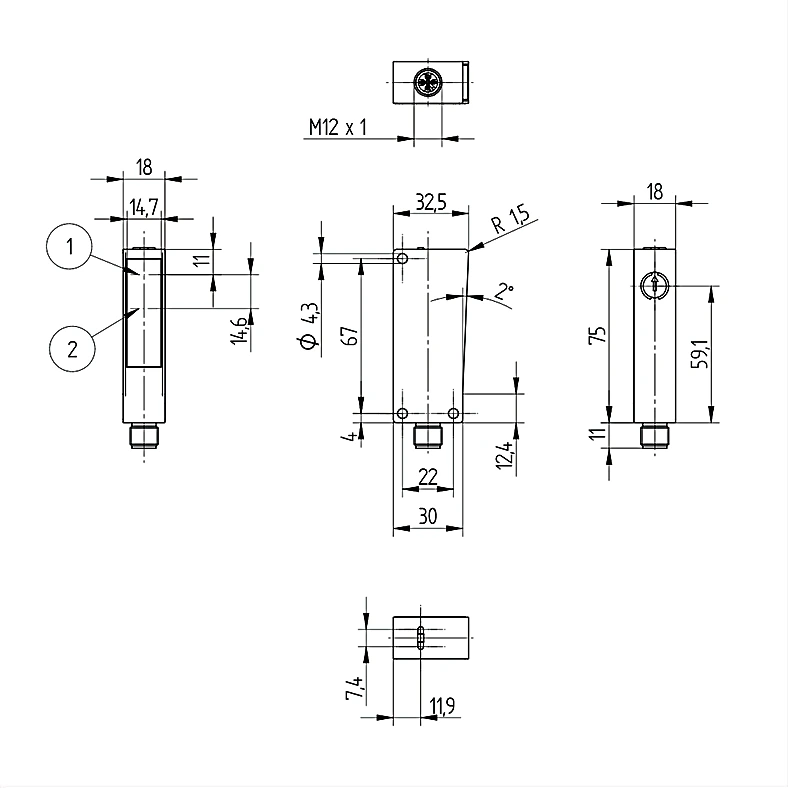

  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68

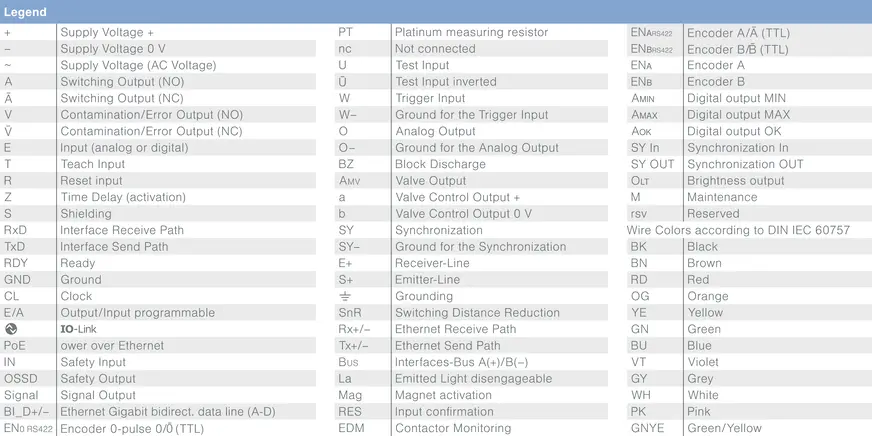

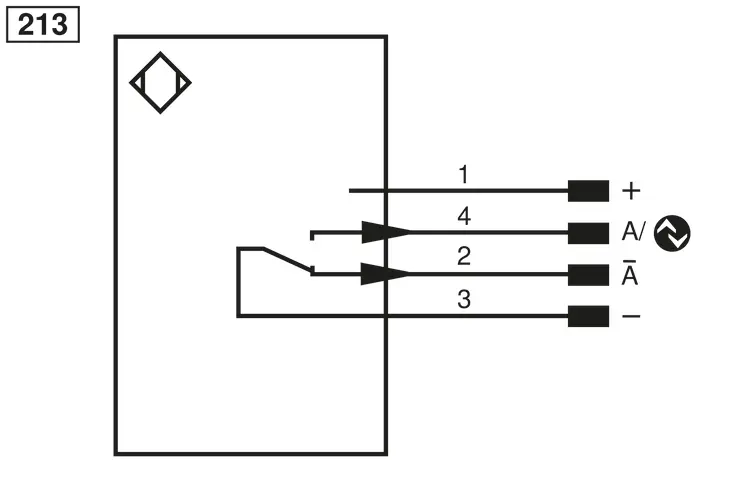

  • Connection Type: Plug variant
  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 29 g
  • MTTFd (EN ISO 13849-1): 2,096.76 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • NPN NC, NPN NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NO, inactive, Error output, NC+NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light

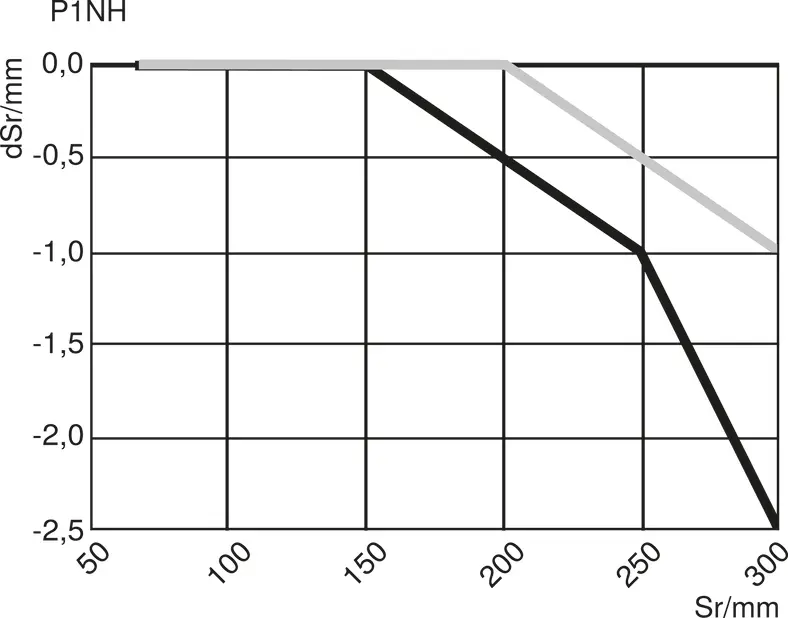

  • Detection Range: 65 mm, 150 mm, 300 mm
  • Light Spot Diameter: 3 mm, 2,5 mm, 1,5 mm
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-03, IO-Link Master, Set Protective Housing Z1NS001, Software
The reflex sensor with background suppression works with laser light according to the angle measurement principle and is designed to detect objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Thanks to the fine laser beam, even small parts can be reliably detected. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
