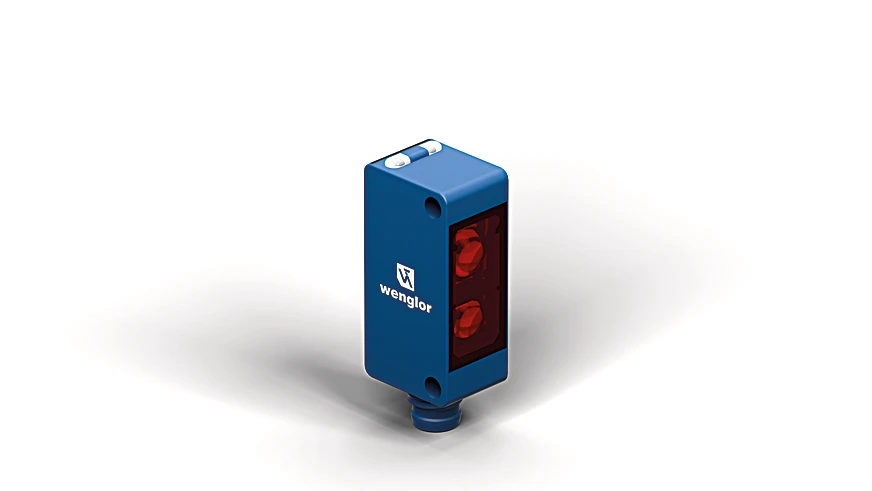

Wenglor P1KH041 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$333.00
Part Number
  • P1KH041
Highlights...

Features

  • Condition monitoring
  • IO-Link 1.1
  • Increased switching distance
  • Laser class 1
  • Range: 250 mm
  • Setting Range: 60 to 250 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Laser, red
  • Wavelength: 680 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Triple Dot Laser: yes
  • Optical axis: Aligned
  • Switching point: Calibrated
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Supply Voltage with IO-Link: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Switching Frequency: 250 Hz
  • Switching Frequency (interference-free mode): 150 Hz
  • Response time (interference-free mode): 6.7 ms
  • Response Time: 4 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -22°F to 113°F
  • Switching Output Voltage Drop: < 2 V
  • Switching Output/Switching Current: 50 mA
  • Residual Current Switching Output: < 50 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Interface: IO-Link V1.1
  • Protection Class: III

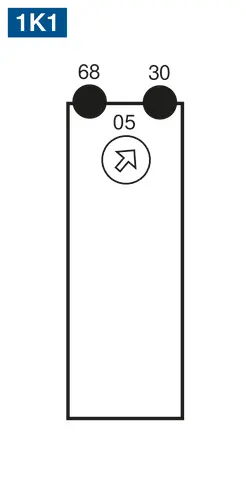

  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS/PC
  • Degree of Protection: IP67, IP68
  • Connection Type: Plug variant

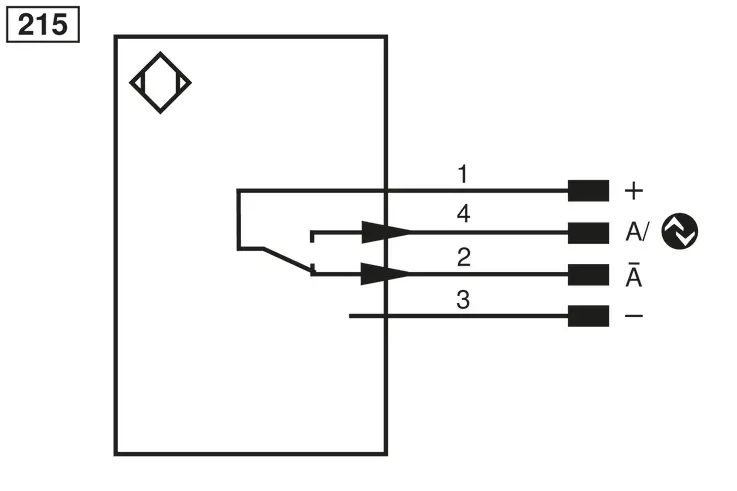

  • Connection: M8 × 1; 4-pin
  • Optic Cover: Plastic, PMMA
  • Weight: 6 g
  • MTTFd (EN ISO 13849-1): 1,641.23 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • PNP NC, PNP NO: yes
  • IO-Link: yes
  • Output: Push-pull, NPN, PNP
  • Circuit: NC, NC+NO, NO
  • Other parameters: Off-delay, On-delay, Mode of operation, Hysteresis, Switching point, Emitted light
  • External Information: Switching distance preset to 250 mm
  • Detection Range: 60 mm, 150 mm, 250 mm
  • Light Spot Diameter: 2 mm, 2,5 mm, 3 mm
  • Complementary Products: IO-Link Master, Software
The reflex sensor with background suppression works with laser light according to the angle measurement principle and is designed to detect objects against any background. The sensor has almost the same switching distance, regardless of the color, shape and surface of the objects. Thanks to the fine laser beam, even small parts can be reliably detected. The IO-Link interface can be used to configure reflex sensors (PNP/NPN, NC/NO) and to output switching statuses.
