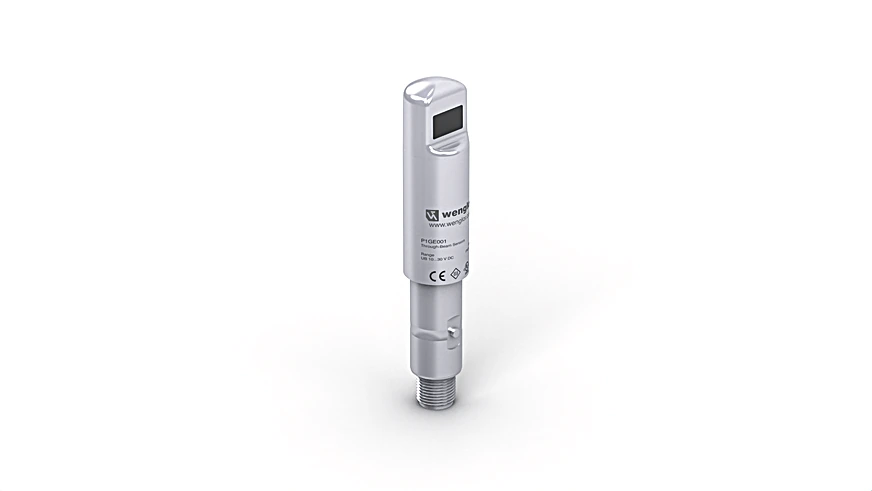

Wenglor P1GE002 Through-Beam Sensor

Through-Beam Sensor.

$275.00
Part Number
  • P1GE002
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in
  • Range: 4,000 mm
  • Light Source: LED, red
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 3 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Teach Mode: NT, MT, XT
  • Test input: yes
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K, IP68

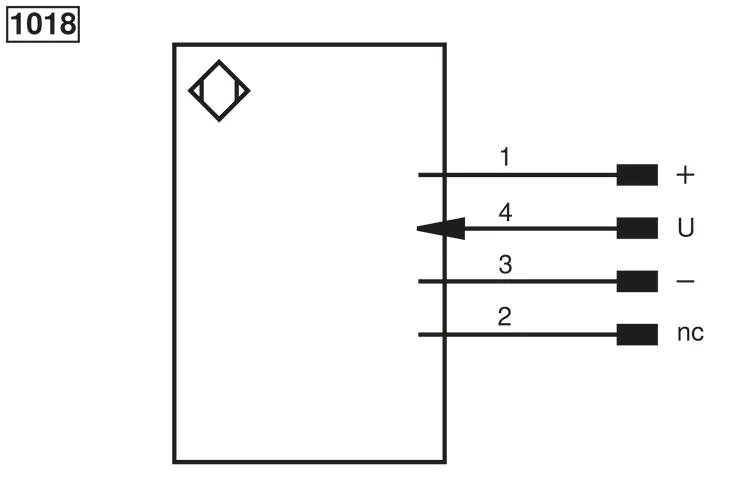

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA (FDA)
  • Weight: 104 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: FDA compliant, Ecolab
  • Complementary Products: Adapterbox A232
The sensors are distinguished by their innovative format, which allows dirt and cleaning agents to flow off them. A large number of components form a complete system that integrates seamlessly into the machine. The laser-welded 316L stainless steel housing (1.4404/V4A) is corrosion-free and resistant to cleaning agents. Mounted flush with a bayonet lock and fitted with undetachable optics, it is also ideal for environments that require a great deal of cleaning. Setting is performed by external teach-in.
