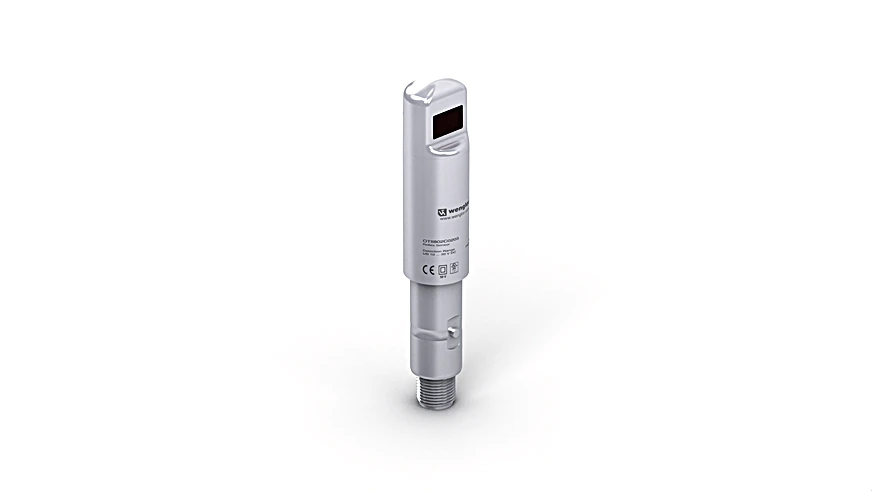

Wenglor OTII802C0203 Reflex Sensor Energetic

Reflex Sensor Energetic.

$379.00
Part Number
  • OTII802C0203
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • Touch teach-in, external teach-in
  • Range: 800 mm
  • Switching Hysteresis: < 15 %
  • Light Source: Infrared, LED
  • Wavelength: 880 nm
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 40 mA
  • Switching Frequency: 1,600 Hz
  • Response Time: 313 µs
  • On-/Off-Delay (RS-232): 0 to 5 s
  • Temperature Drift: < 5 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: NT, MT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K, IP68
  • Connection Type: Plug variant

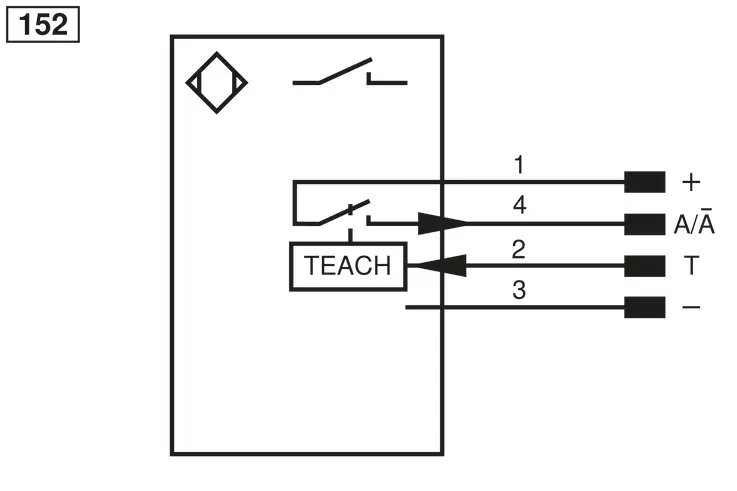

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Glass

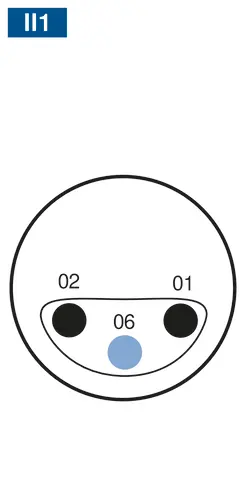

  • Material Control Panel: Plastic, PC (FDA)
  • Weight: 106 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab, FDA compliant
  • PNP NO: yes
  • External teach-in input: yes
  • RS-232 with Adapterbox: yes
  • Circuit: NC, NC/NO, NO
  • Detection Range: 100 mm, 500 mm, 800
  • Light Spot Diameter: 19 mm, 40 mm, 55 mm
  • Complementary Products: Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M, Software
The photoelectronic sensors in the hygienic housing are distinguished by a captive optic cover and food-safe, FDA-compliant materials. The hygienic design with no corners or edges enables optimal flow of cleaning agents. The laser-welded 316L stainless steel housing (1.4404/V4A) is resistant to high-pressure cleaning (degree of protection IP69K) and suitable for cleaning-intensive applications. When combined with the available accessories, gap-free installation is guaranteed for the highest hygiene requirements. Setting is performed by means of touch teach-in through the hermetically sealed housing.
