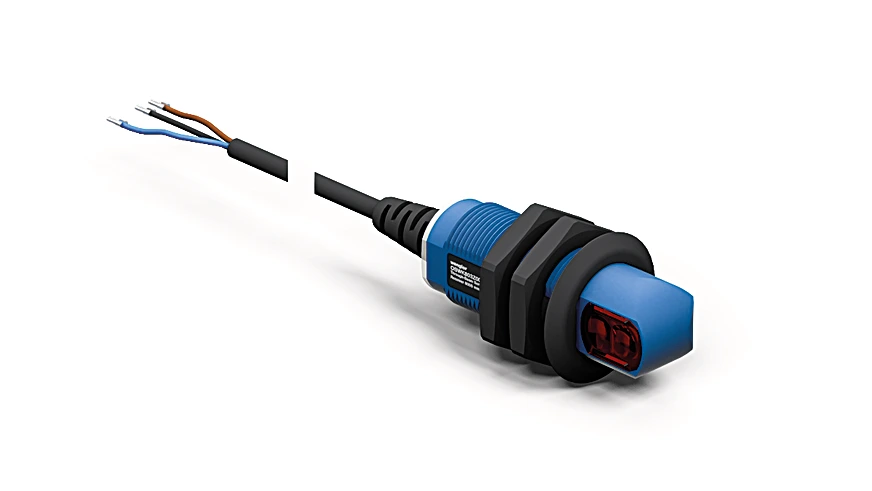

Wenglor OSWK803Z0091 Through-Beam Sensor

Through-Beam Sensor.

$50.30
Part Number
  • OSWK803Z0091
Highlights...

Features

  • Clever inclusive mounting technology
  • Test input
  • Simple installation
  • Large working range
  • Minimal installation space
  • Range: 8,000 mm
  • Light Source: LED, red
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 5 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 15 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67

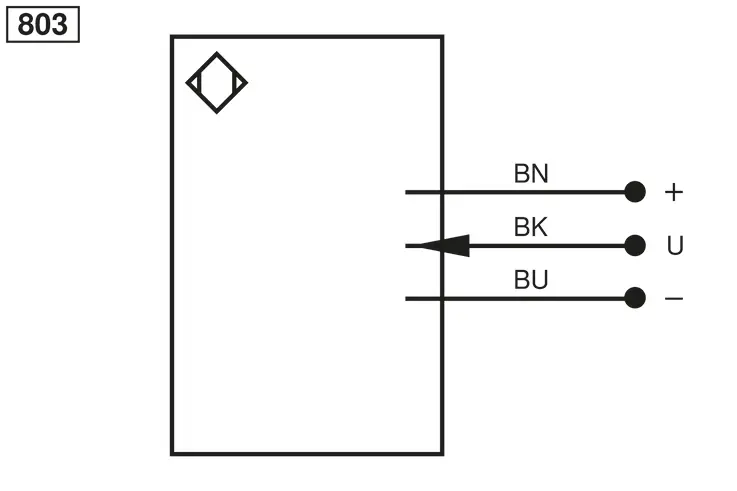

  • Connection: Cable; 3-wire
  • Cable length (L): 2 m
  • Cable Jacket Material: PVC
  • Weight: 54 g
  • Scope of delivery: 1 × mounting console, 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
These through-beam sensors are best suited for use in industrial environments. Thanks to their large working range, the devices demonstrate excellent functional reliability in highly contaminated environments. The sensors can be checked for correct functioning via the test input.
