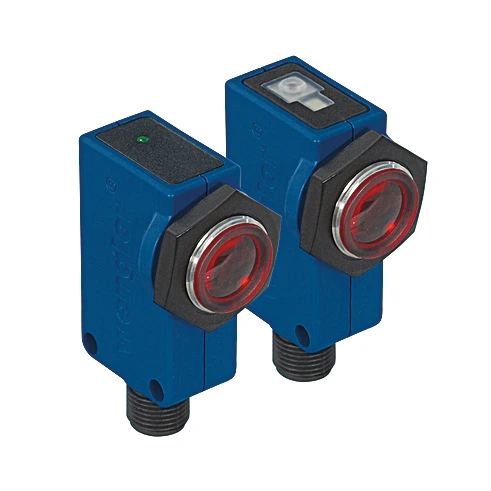

Wenglor OSRS946 Through-Beam Sensor for PET Selection

Through-Beam Sensor for PET Selection.

$253.00
Part Number
  • OSRS946
Highlights...

Features

  • Compact housing
  • Red light
  • Test input
  • Simple installation
  • Range: 300 mm
  • Light Source: LED, red
  • Service Life (T = 77°F): 100,000 h
  • Opening Angle: 4 °
  • Sensor Type: Emitter
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • Housing Material: Plastic, PBT, Stainless steel, V2A (1.4305/303)
  • Full Encapsulation: yes
  • Degree of Protection: IP67

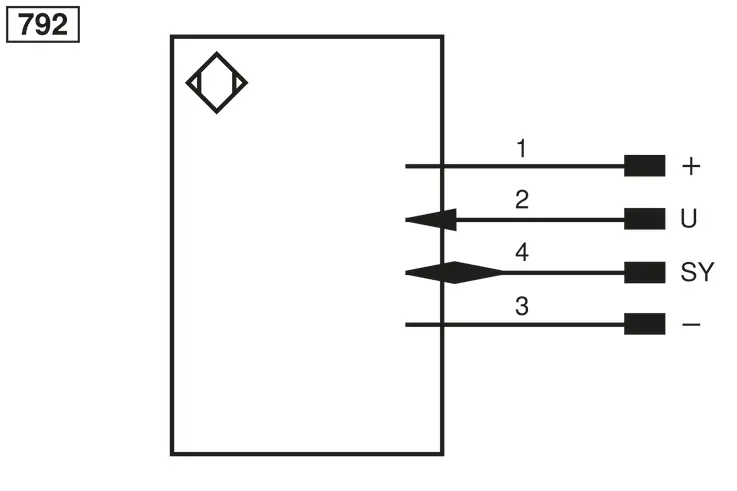

  • Connection: M12 × 1; 4-pin
  • Weight: 26 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M18-E012 hex nut, 1 × sensor
  • Complementary Products: Dust Extraction Tube STAUBTUBUS-01
These through-beam sensors distinguish transparent PET from other transparent materials such as glass and opaque objects. They have two switch outputs for representing these two states. The sensor can be tested for its function by means of the test input. Furthermore, several transmitters can be synchronized whereby close sensors do not affect each other. The M18 threaded mounting enables the Sensor to be easily mounted and protected mechanically.
