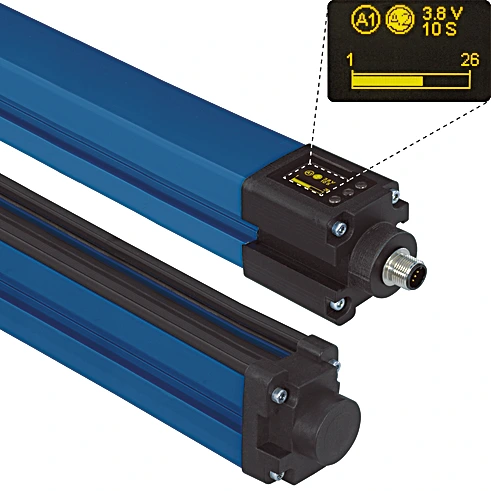

Wenglor OSEI102Z0103 Light Curtain for Measuring Tasks

Light Curtain for Measuring Tasks.

$502.00
Part Number
  • OSEI102Z0103
Highlights...

Features

  • Test input
  • Range: 2,000 mm

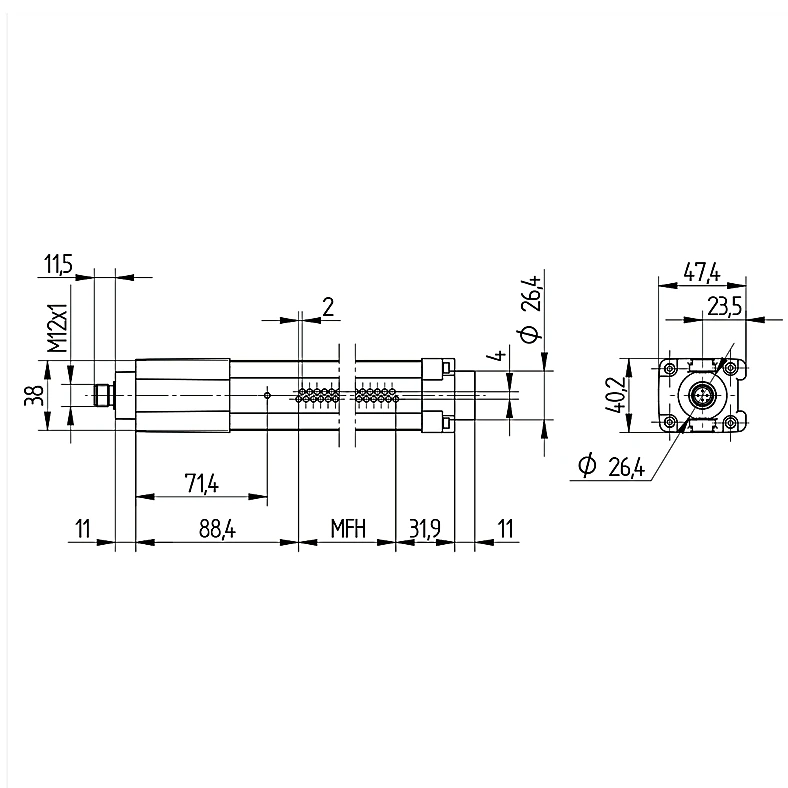

  • Measurement Field Height (MFH): 100 mm
  • Beam Distance: 2 mm
  • Light Source: Infrared, LED
  • Service Life (T = 77°F): 100,000 h
  • Sensor Type: Emitter
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 60 mA
  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Reverse Polarity Protection: yes
  • Test input: yes
  • Protection Class: III
  • Housing Material: Aluminum, powder-coated, Plastic, PA, Plastic, PBT
  • Optic Cover: Plastic, PC
  • Degree of Protection: IP65
  • Connection Type: Plug variant

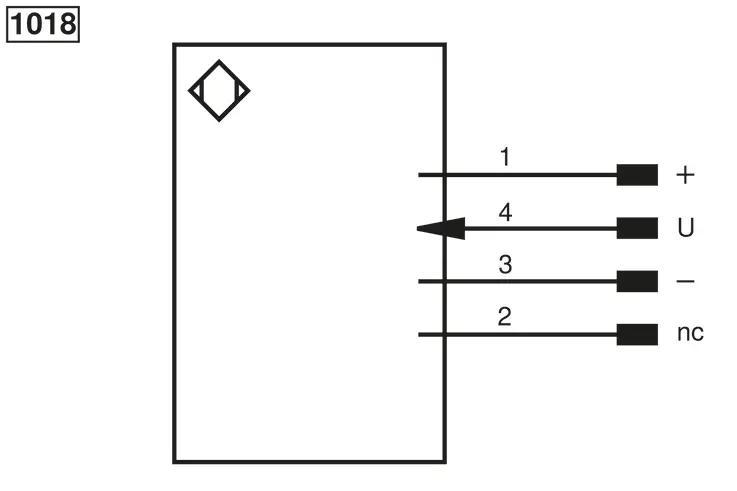

  • Connection: M12 × 1; 4-pin
  • Weight: 575 g
  • MTTFd (EN ISO 13849-1): 855.03 a
  • Scope of delivery: 1 × BEF-SET-33 mounting set, 1 × sensor
As these light curtains for measurement task are equipped with an integrated evaluation unit, external connection units are not needed. Objects are both recognized (via the digital output) and measured (via the analog output). The light curtains can be set up easily using the menu-controlled graphic display. Convenient parametrization and quick diagnosis is possible via the IO-Link interface. The adequate mounting angle BEF-SET-33 is included in the delivery.
