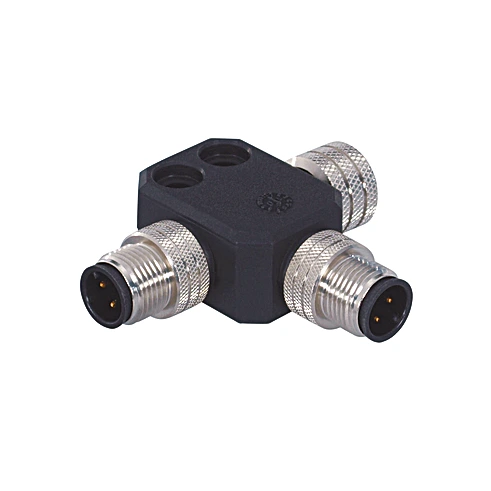

Wenglor OPT70S T-Plug for Signal Extraction

T-Plug for Signal Extraction.

$65.90
Part Number
  • OPT70S
Highlights...

Features

  • With fixing holes

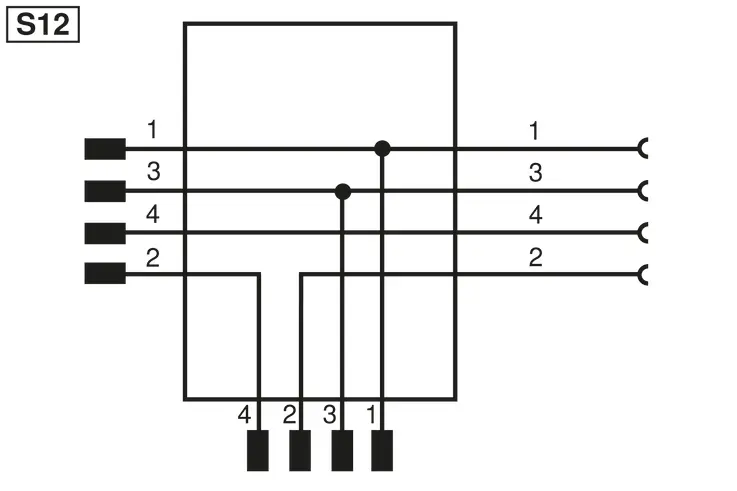

  • Signal Extraction: yes
  • Logic Interruption: yes
  • Connection 1: Plug, straight

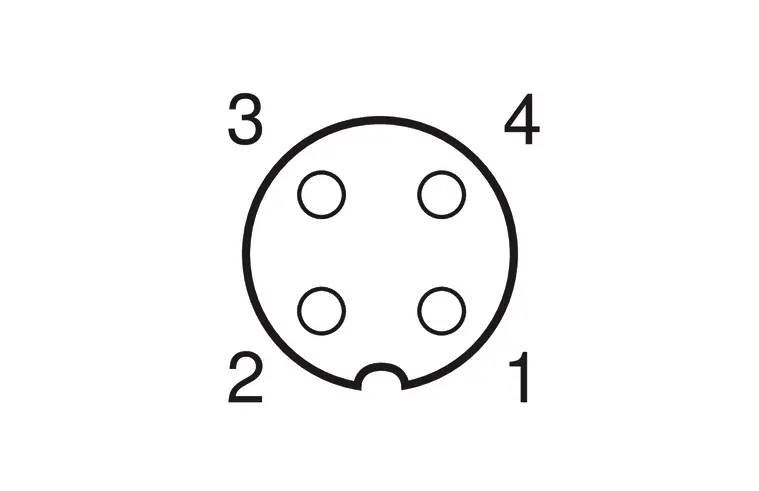

  • Connection mode 1: M12 × 1, 4-pin
  • Connection 2: Socket, angled, Plug, angled

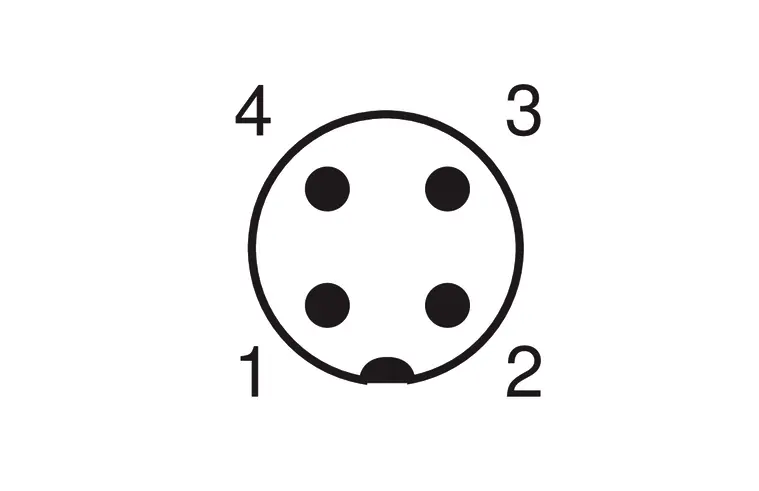

  • Connection mode 2: M12 × 1, 4-pin
  • Torque: M12: 0,8 Nm
  • Coding: A-coding
  • Degree of Protection: IP68
  • Temperature Range: -13°F to 194°F
  • Material Sleeve Nut: Brass
  • Weight: 38 g
  • Scope of delivery: 1 × plug
  • Packaging unit: 1 Piece
