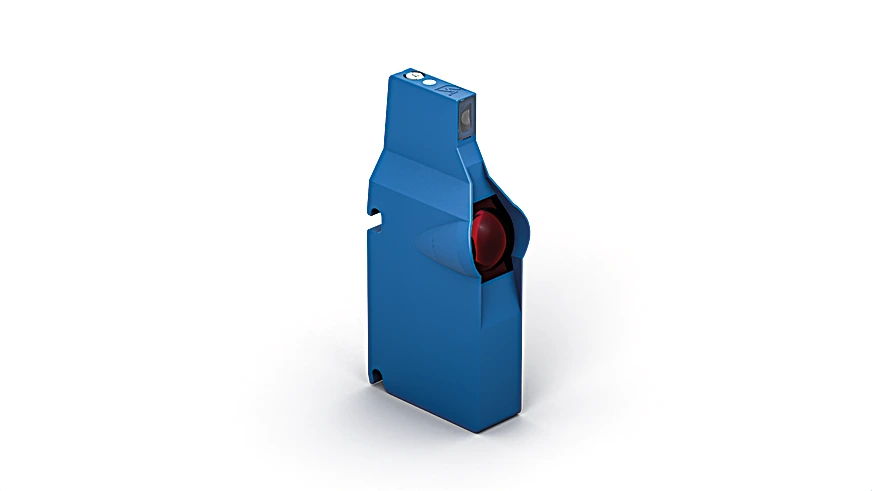

Wenglor OPT1604 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$693.00
Part Number
  • OPT1604
Highlights...

Features

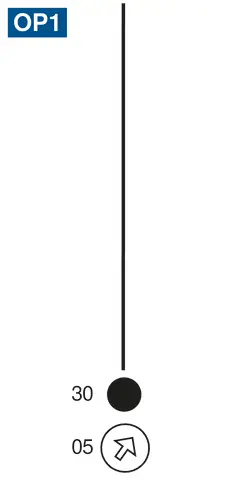

  • Scaled switching distance adjuster
  • Energy-saving
  • Time-saving installation with fast-clip mounting system
  • Optimized performance
  • Range: 900 mm
  • Switching Hysteresis: 5 %
  • Light Source: Infrared, LED
  • Wavelength: 860 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 90,000 Lux
  • Opening Angle: 3 °
  • Principle: Triangulation
  • Supply Voltage: 12 to 30 V DC
  • Current Consumption Sensor (Ub = 24 V): < 16 mA
  • Switching Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Drift: < 5 %
  • Temperature Range: -40°F to 140°F
  • Number of Switching Outputs: 1
  • Switching Output Voltage Drop: < 0.9 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Setting Method: Potentiometer
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67
  • Connection Type: Plug variant

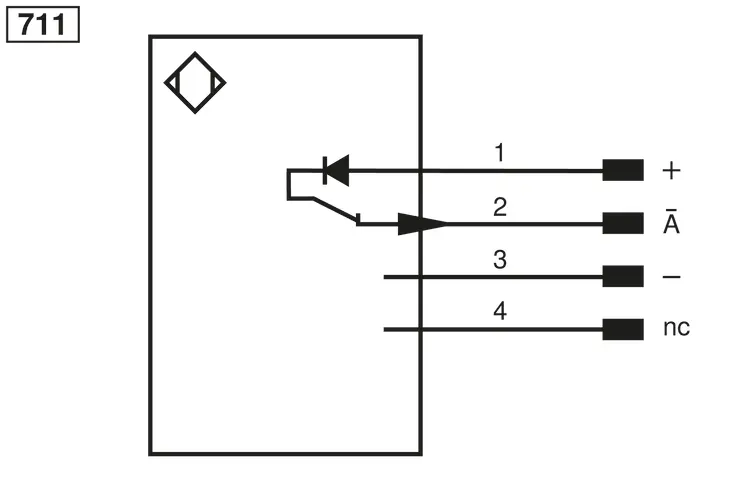

  • Connection: M12 × 1; 4-pin
  • Mounting Bracket: ZNR10634
  • Weight: 126 g
  • ID number: 253 628 97
  • Scope of delivery: 1 × holder, 1 × initial start-up instructions, 1 × sensor, 2 × M4 screws × 25 mm
  • PNP NC: yes
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between rollers below the transport level. High-precision background suppression makes it possible to reliably detect even black objects at up to 900 mm. The scaled switching-distance adjuster assures quick and simple adjustment to the desired distance. Thanks to the innovative fast-clip mounting system and quick wiring, the sensor are installed and ready for use in no time flat.
