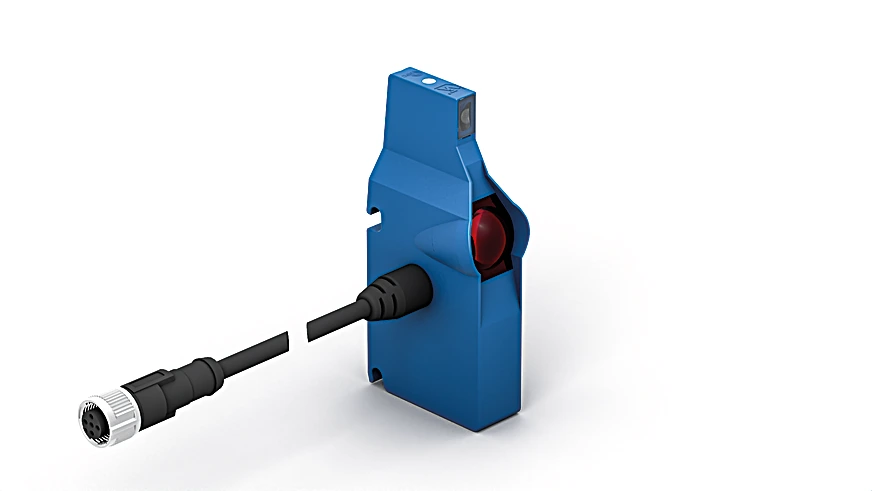

Wenglor OPT1552 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$385.00
Part Number
  • OPT1552
Highlights...

Features

  • Optimized performance
  • Energy savings thanks to EcoMode
  • Increased capacity thanks to intelligent functions
  • Time-saving initial start-up with fast-clip mounting system and quick wiring
  • Wireless settings via NFC
  • Range: 900 mm
  • Switching Hysteresis: < 5 %
  • Light Source: Infrared, LED
  • Wavelength: 860 nm
  • Service Life (T = 77°F): 100,000 h
  • Risk Group (EN 62471): 1
  • Max. Ambient Light: 90,000 Lux
  • Opening Angle: 3 °
  • Principle: Triangulation
  • Supply Voltage: 12 to 30 V DC
  • Current Consumption Sensor (Ub = 24 V): < 16 mA
  • EcoMode: yes
  • Switching Frequency: 100 Hz
  • Response Time: 5 ms
  • Temperature Range: -40°F to 140°F
  • Number of Switching Outputs: 2
  • Switching Output Voltage Drop: < 0.9 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Equipment: Logics, Solenoid valve
  • Single Discharge: yes
  • Block Forwarding: yes
  • Output Magnetic Valve/Engine: yes
  • Protection Class: III

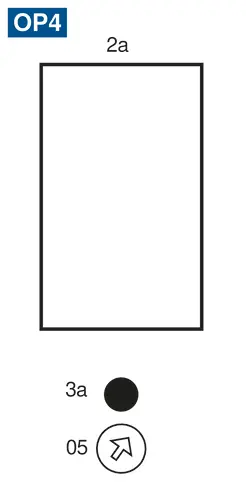

  • Setting Method: Potentiometer/NFC
  • Housing Material: Plastic, ABS-GF
  • Degree of Protection: IP67

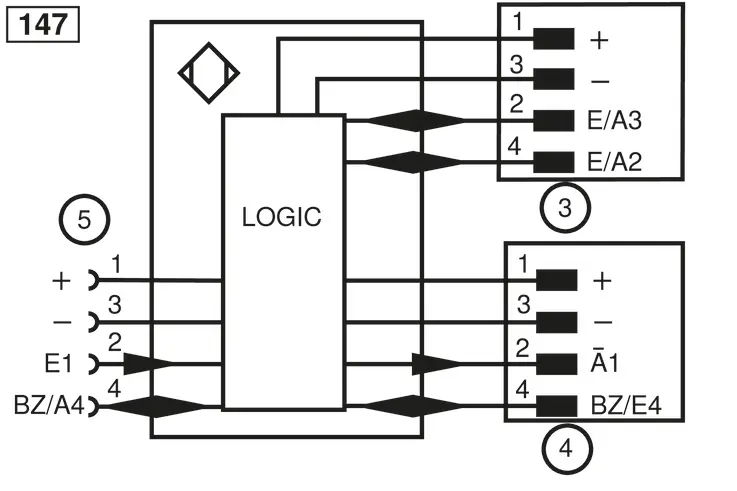

  • Connection Type: 1 socket with cable
  • Connection: M12 × 1; 4-pin
  • Cable length (L): 3 m
  • Cable Jacket Material: PVC
  • Weight: 179 g
  • MTTFd (EN ISO 13849-1): 979.14 a
  • Scope of delivery: 1 × sensor
  • PNP NO/NC switchable: yes
  • NFC Receiver Category: yes
  • External Information: with block discharge in both directions (was not possible with OPT1549)
These sensors have been specially designed for use in accumulation roller conveyors. Their compact design allows for installation between rollers below the transport level. High-precision background suppression makes it possible to reliably detect even black objects at up to 900 mm. Settings are entered via wireless NFC, which is even possible in the de-energized state. Thanks to the innovative fast-clip mounting system and quick wiring, the sensors are installed and ready for use in no time flat.
