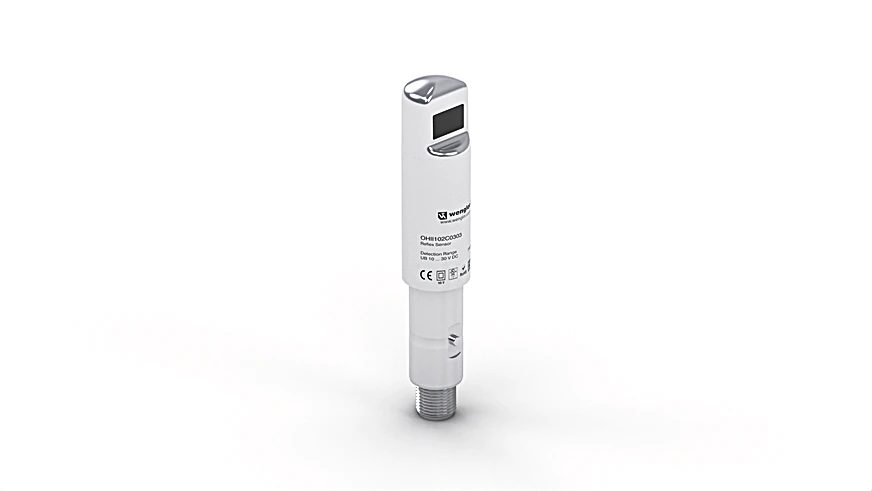

Wenglor OHII102C0303 Reflex Sensor with background suppression electronic

Reflex Sensor with background suppression electronic.

$463.00
Part Number
  • OHII102C0303
Highlights...

Features

  • Hygienic design makes it easy to clean
  • Made with food safe materials that are FDA approved
  • Waterproof (IP68/IP69K)
  • External teach-in, RS-232 interface
  • Range: 100 mm
  • Setting Range: 10 to 100 mm
  • Switching Hysteresis: < 5 %
  • Light Source: LED, red
  • Service Life (T = 77°F): 100,000 h
  • Max. Ambient Light: 10,000 Lux
  • Principle: Triangulation
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 30 mA
  • Switching Frequency: 600 Hz
  • Response Time: 800 µs

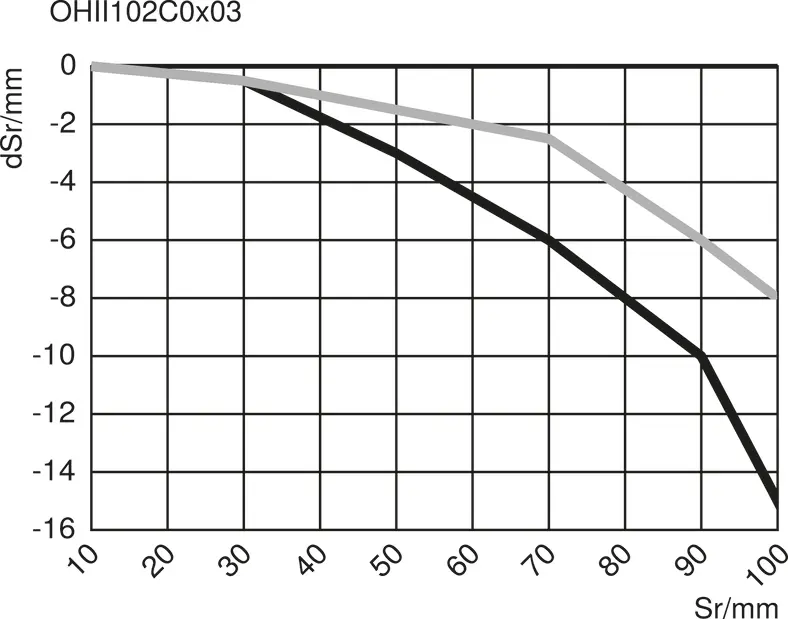

  • Temperature Drift: < 10 %
  • Temperature Range: -13°F to 140°F
  • Switching Output Voltage Drop: < 2.5 V
  • PNP Switching Output/Switching Current: 200 mA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Lockable: yes
  • Teach Mode: HT, VT
  • Protection Class: III
  • Setting Method: Teach-In
  • Housing Material: Stainless steel, V4A (1.4404/316L)
  • Degree of Protection: IP69K, IP68
  • Connection Type: Plug variant

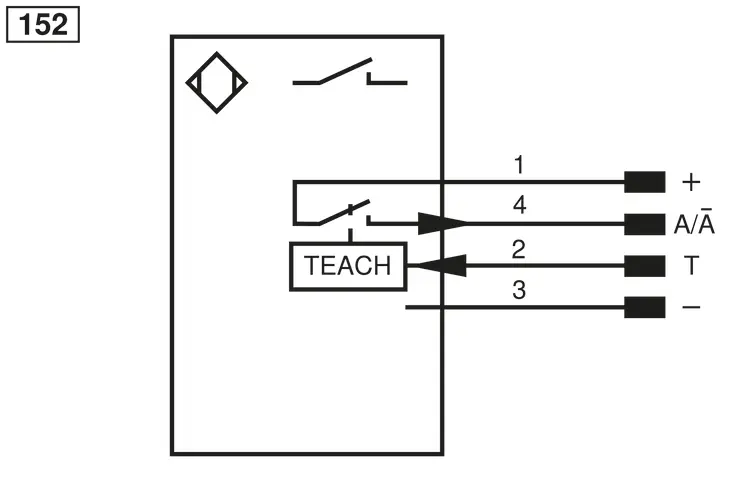

  • Connection: M12 × 1; 4-pin
  • Optic Cover: Plastic, PMMA (FDA)
  • Weight: 103 g
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Approvals: Ecolab, FDA compliant
  • PNP NO: yes
  • RS-232 with Adapterbox: yes
  • External teach-in input: yes
  • Circuit: NC, NC/NO, NO
  • Detection Range: 10 mm, 40 mm, 100 mm
  • Light Spot Diameter: 2,5 × 7 mm, 2,5 × 5 mm, 2,5 × 2,5 mm
  • Complementary Products: Adapterbox A232, PNP-NPN Converter BG2V1P-N-2M, Software

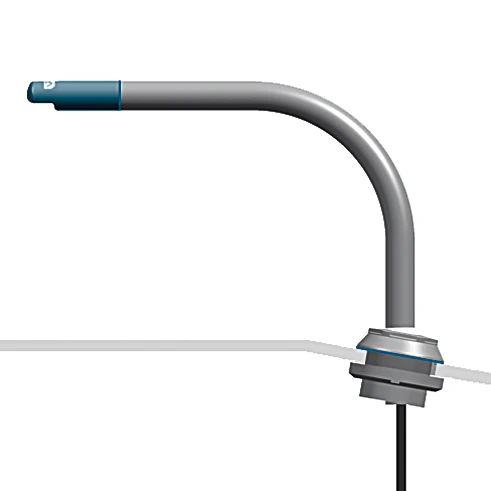

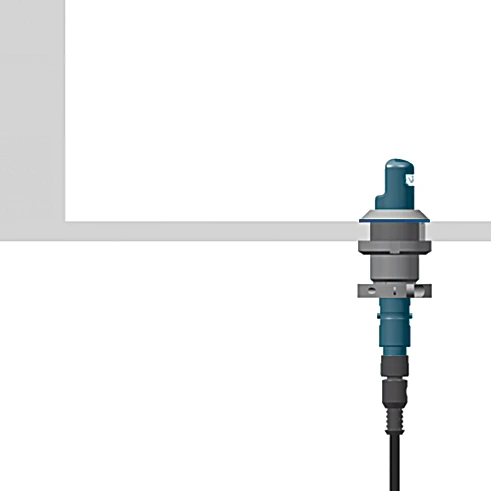

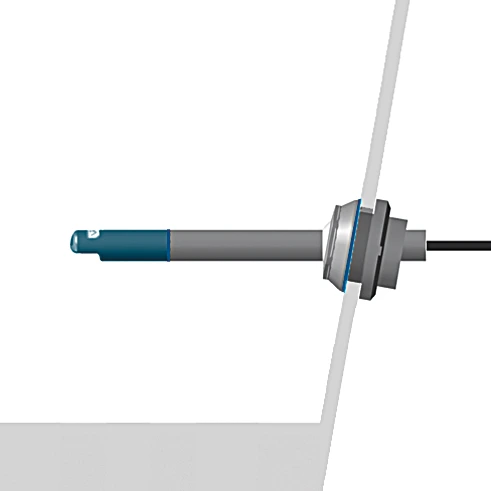

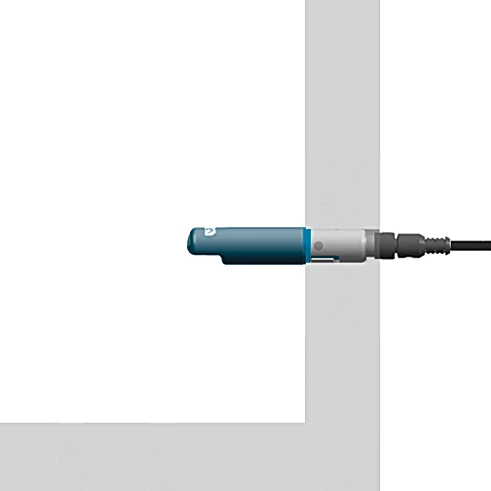

The sensors are distinguished by their innovative format, which allows dirt and cleaning agents to flow off them. A large number of components form a complete system that integrates seamlessly into the machine. The laser-welded 316L stainless steel housing (1.4404/V4A) is corrosion-free and resistant to cleaning agents. Mounted flush with a bayonet lock and fitted with undetachable optics, it is also ideal for environments that require a great deal of cleaning.
