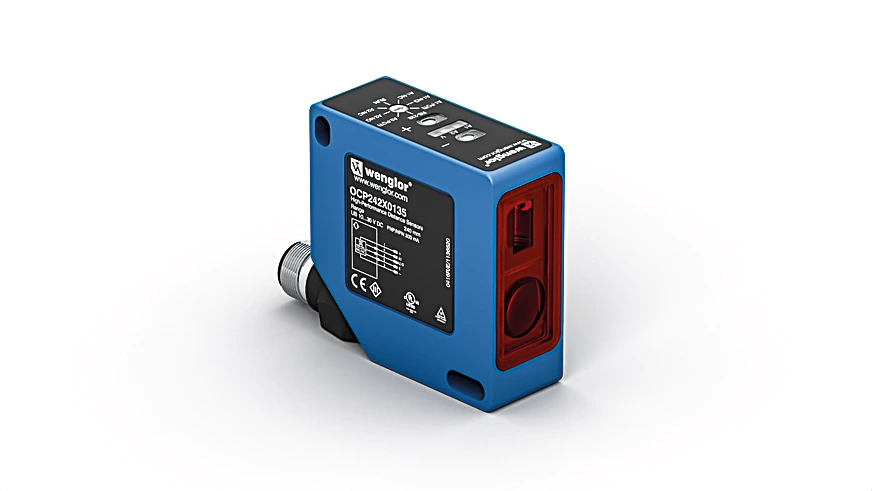

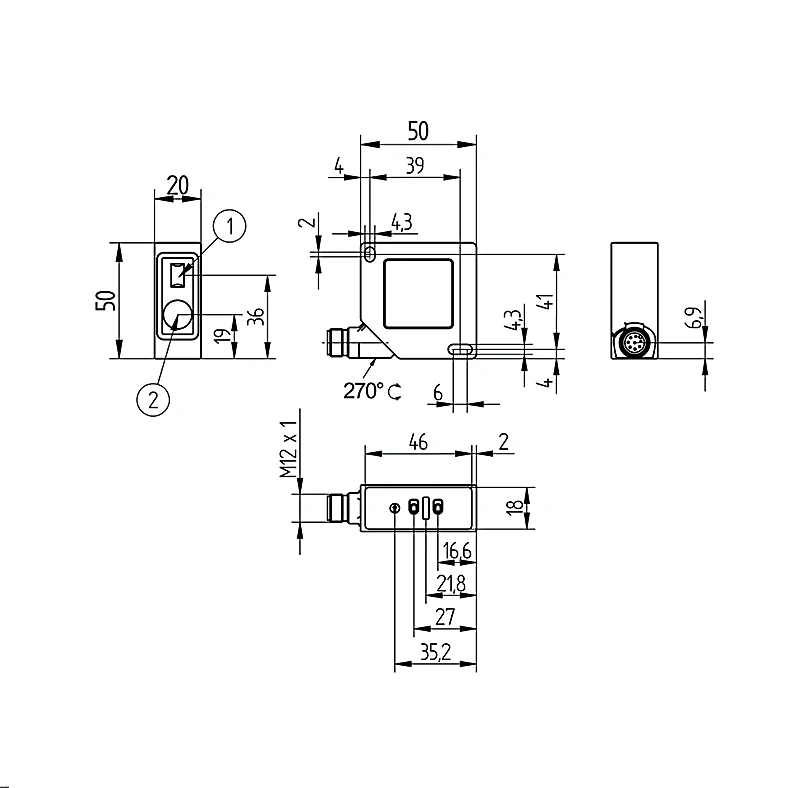

Wenglor OCP162H0180 Laser Distance Sensor Triangulation

Laser Distance Sensor Triangulation.

$1,499.00
Part Number
  • OCP162H0180
Highlights...

Features

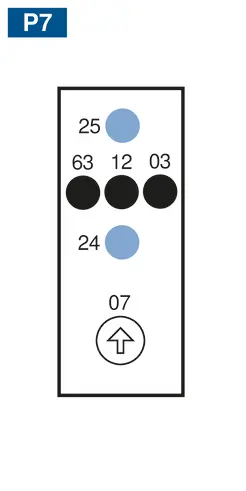

  • Zoom function
  • Measured value independent of material, color and brightness
  • Emitted light disengageable
  • CMOS line array
  • Laser class 1
  • Working Range: 40 to 160 mm
  • Measuring Range: 120 mm
  • Reproducibility maximum: 250 µm
  • Reproducibility: 1 Sigma: 60 µm
  • Linearity Deviation: 350 µm
  • Light Source: Laser, red
  • Wavelength: 660 nm
  • Service Life (T = 77°F): 100,000 h
  • Laser Class (EN 60825-1): 1
  • Max. Ambient Light: 10,000 Lux
  • Light Spot Diameter: see table 1
  • Supply Voltage: 18 to 30 V DC
  • Current Consumption (Ub = 24 V): < 80 mA
  • Measuring Rate: 1,000 /s
  • Measuring Rate (Resolution-Mode): 500 /s
  • Response Time: 1,000 µs
  • Response Time (Resolution Mode): < 2,000 µs
  • Temperature Drift: < 30 µm/K
  • Temperature Range: -13°F to 122°F
  • Analog Output: 0 to 10 V
  • Load Current Voltage Output: < 1 mA
  • Current Output Load Resistance: < 500 Ohm
  • Interface: RS-232
  • Transmission rate: 38,400 Bd
  • Protection Class: III
  • FDA Accession Number: 1120717-000
  • Setting Method: Teach-In
  • Housing Material: Plastic, ABS, Plastic, PC
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP67
  • Connection Type: Plug variant

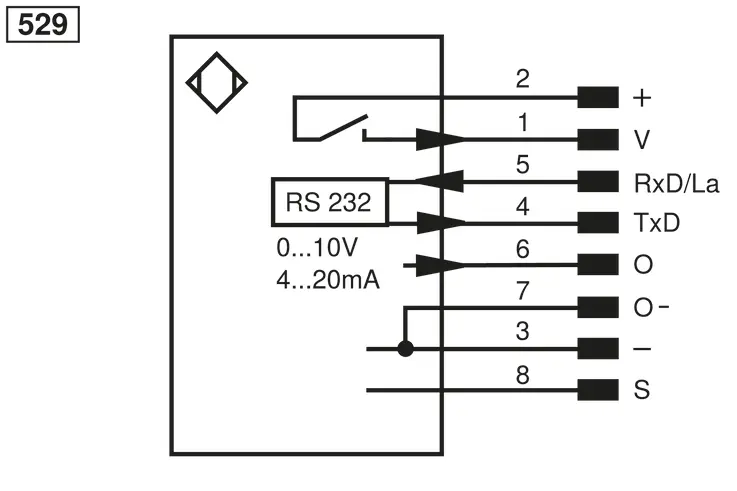

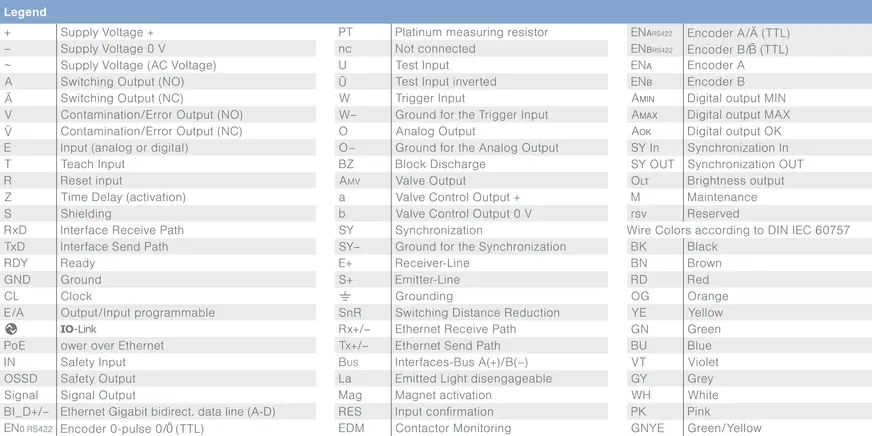

  • Connection: M12 × 1; 8-pin
  • Weight: 45 g
  • MTTFd (EN ISO 13849-1): 713.97 a
  • Scope of delivery: 1 × initial start-up instructions, 1 × sensor
  • Error Output: yes
  • Analog Output: yes
  • RS-232 Interface: yes

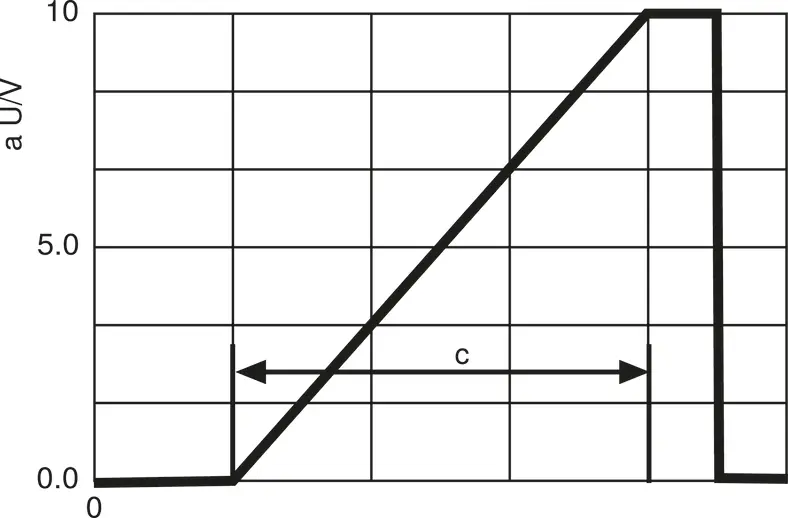

  • Analog output: 0 to 10 V, 4 to 20 mA
  • Other parameters: Scale analog output, Filter, Speed mode, Laser light, Resolution mode
  • Working Distance: 40 mm, 160 mm
  • Spot Size: 0,4 × 0,9 mm, 0,9 × 1,8 mm
  • Complementary Products: Analog Evaluation Unit AW02, Fieldbus Gateway ZAGxxxN01, EPGG001, IO-Link converter, Interface Cable S232W3, Protective Housing ZSV-0x-01, Set Protective Housing ZSP-NN-02, Software, Dust extraction tube
These sensors work with a high-resolution CMOS line and DSP technology and determine distance using angular measurement. As a result, material, color and brightness related measurement differences are virtually eliminated. Integrated analogue output can be configured for voltage 0 to 10 V (10 to 0 V) or current 4 to 20 mA (20 to 4 mA).
