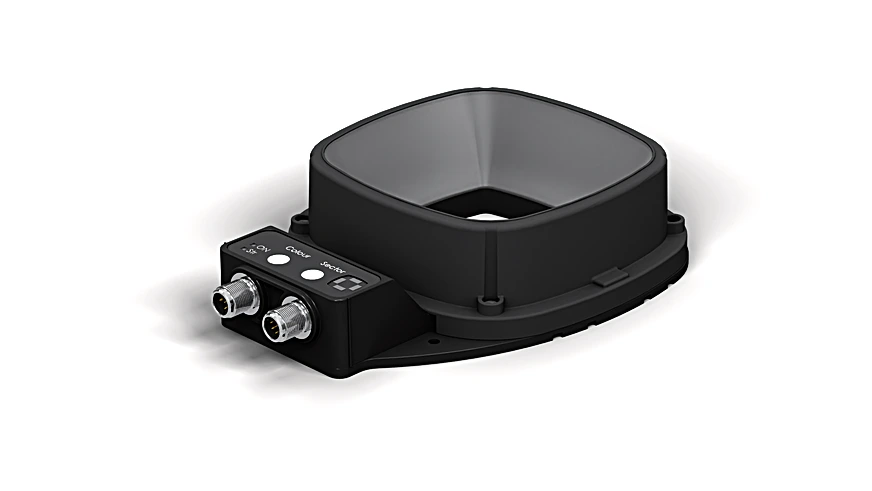

Wenglor LMFX102 Darkfield Light White infrared light, 80 mm

Darkfield Light White infrared light, 80 mm.

$1,356.00
Part Number
  • LMFX102
Highlights...

Features

  • No external control required

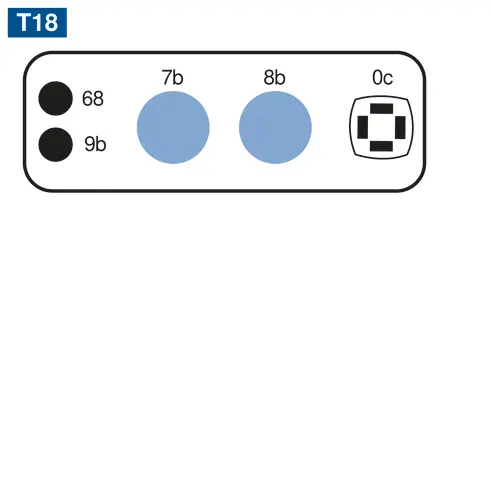

  • 4 sectors selectable
  • Bicolor
  • Quick and easy replacement of accessories
  • OverDrive
  • Light Source: LED, infrared/white
  • Color temperature: 5,000 K
  • Wavelength: 860 nm
  • Risk Group (EN 62471): 0
  • White light output: 83,396 Lux
  • Infrared light output: 80.1 W/m²
  • Measuring point distance: 10 mm
  • Temperature Range: 14°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 10.08 W
  • Peak power: 42 W
  • Current Consumption Continuous Mode (Ub = 24 V): 0.42 A
  • Current consumption flash mode OverDrive (operating voltage = 24 V): 1.75 A
  • Flash duration (max.): 2 ms
  • Duty cycle (max.): < 0,1
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0....10 V ≙ 100 to 30%
  • OverDrive: yes
  • Housing Material: Aluminum, Plastic, ABS, Plastic, PMMA
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

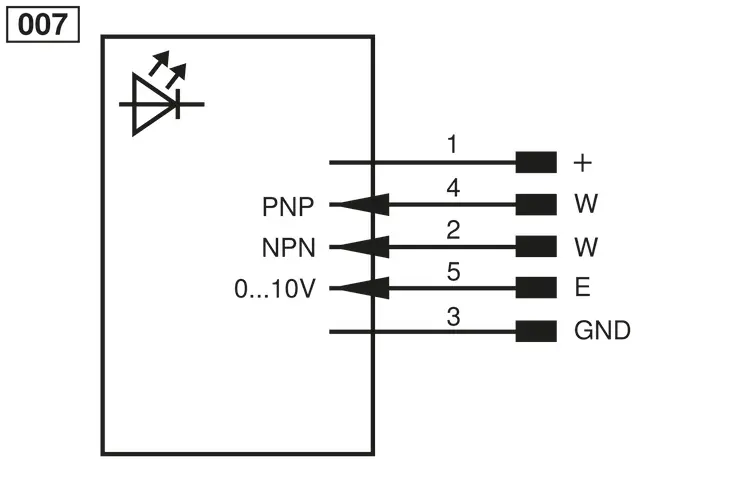

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 40 m

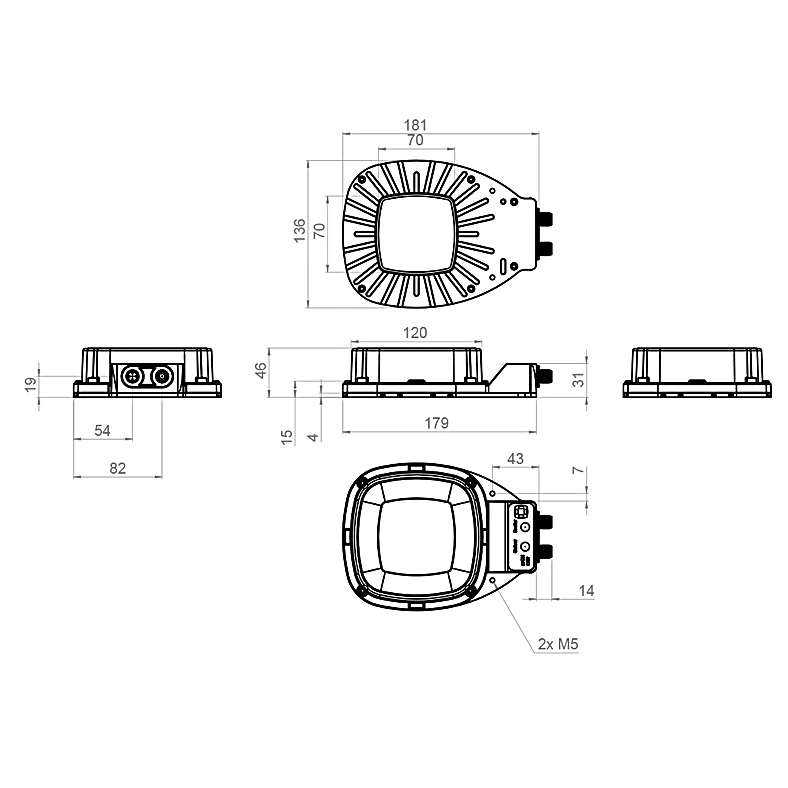

  • Camera aperture inner diameter: 80 mm
  • Weight: 380 g
  • Operating modes: Continuous, strobe overdrive
  • Complementary Products: ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable
The LMFX102 is a two-color (white IR) darkfield ring light. This product is a diffuse ring light with a very low light output angle of incidence (60°). It is perfect for illuminating glossy surfaces and the inspection of edge details by creating a darkfield effect. This darkfield light can be used at a working distance of 1 mm to 500 mm, depending on the object to be examined.
