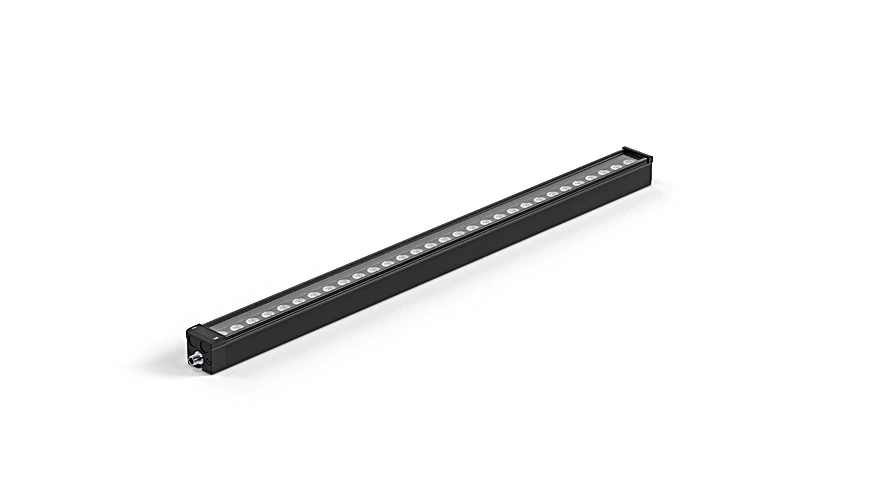

Wenglor LBAI711 Bar Light infrared, 750 mm

Bar Light infrared, 750 mm.

$1,526.00
Part Number
  • LBAI711
Highlights...

Features

  • Flexibility: expand the beam angle with an Angle Changer
  • No external control required
  • Create patented curve effect to reduce LED hot spots
  • Light Source: Infrared, LED
  • Wavelength: 850 nm
  • Risk Group (EN 62471): 1
  • Beam angle: ± 7 °
  • Infrared light output: 95.75 W/m²
  • Measuring point distance: 200 mm
  • Compatible with: Angle Changer
  • Temperature Range: 32°F to 104°F
  • Storage temperature: -4°F to 140°F
  • Atmospheric humidity: < 80%, non-condensing
  • Supply Voltage: 21.6 to 26.4 V DC
  • Power: 57.6 W
  • Current Consumption Continuous Mode (Ub = 24 V): 2.4 A
  • Rise time: 15 µs
  • Fall time: 10 µs
  • Input signal: NPN, PNP
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Dimming: 0 to 10 V ≙ 100 to 30%
  • OverDrive: no

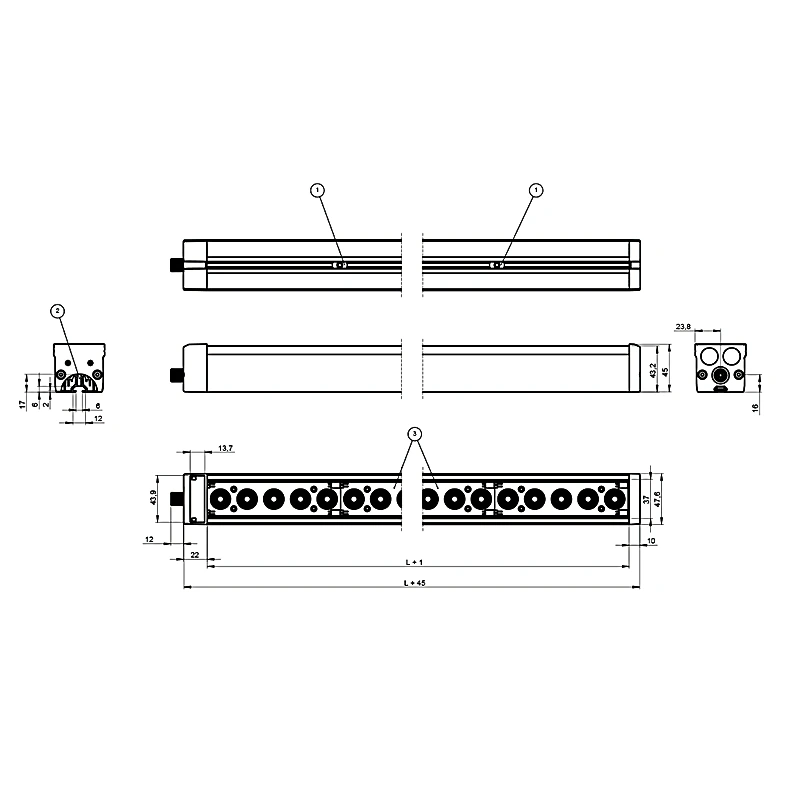

  • Luminous Field Length (L): 750 mm
  • Luminous Field Width (W): 31.5 mm
  • Luminous Field: 750 × 31.5 mm
  • Housing Material: Aluminum, anodised, Plastic, ABS, Plastic, PC
  • Degree of Protection: IP65
  • UL Enclosure Type: 1
  • Optic Cover: Plastic, PMMA

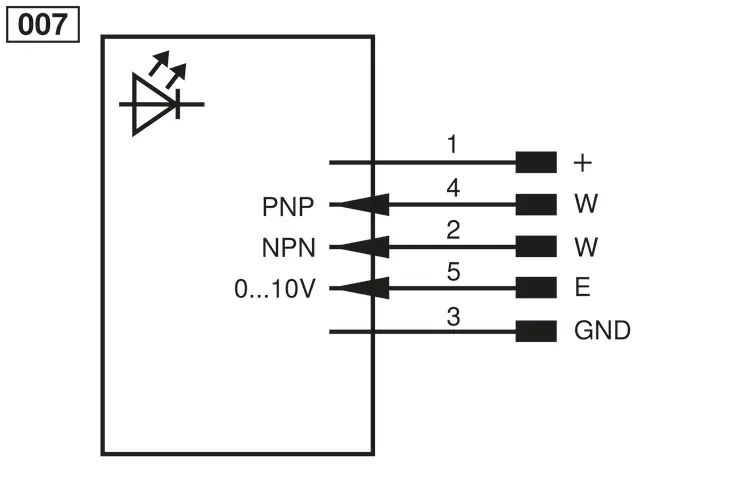

  • Connection: M12 × 1; 5-pin
  • Max. cable lenght: 27 m
  • Weight: 1,500 g
  • Operating modes: Continuous, Strobe
  • Complementary Products: ZBAG angle changer, ZBAZ001 bar clamp, ZC4G003 connection cable, ZDCG004 connection cable, ZDCG005 connection cable

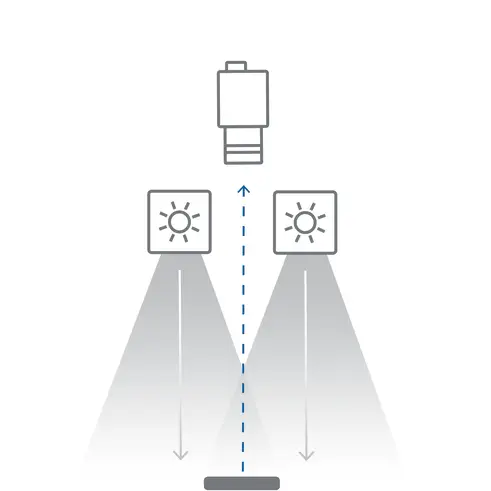

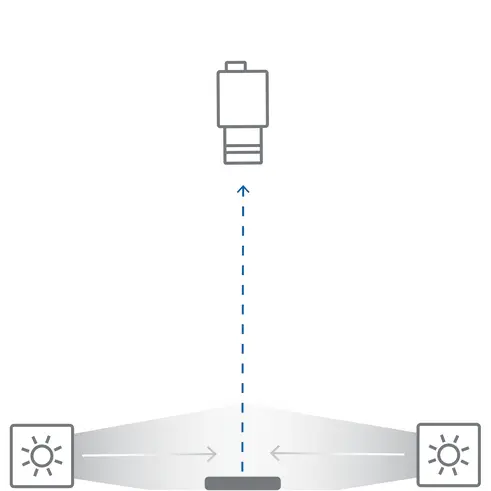

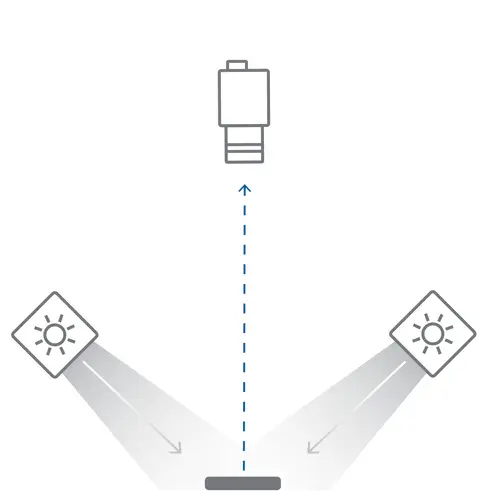

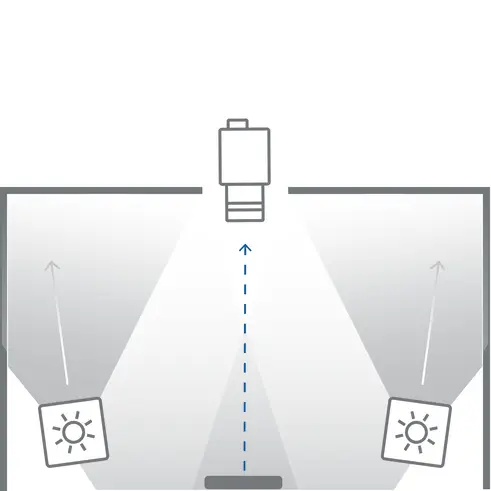

wenglor bar lights from the LBA series are suitable for both small and large working distances. The direct lights can create lighting effects like bright field, low angle of incidence, dark field and dome lighting. Some line scanning applications are also possible. The LBA bar lights can be operated in continuous mode or in strobe mode. In combination with the ZBAG angle changers, the beam angle can be enlarged and designed flexibly.
