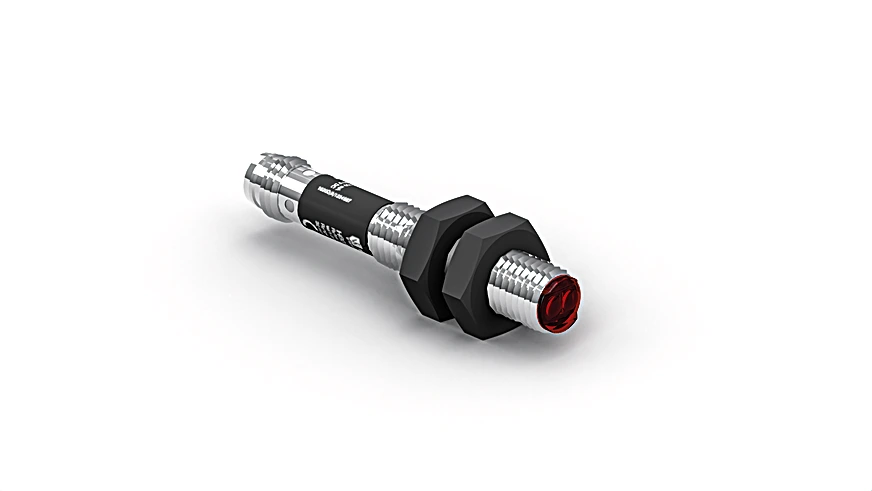

Wenglor LB66PC7 Retro-Reflex Sensor Universal

Features

• Glossy objects can be detected
• Micro-design
• Contamination warning
• Integrated output
• Range: 1,300 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Switching Hysteresis: < 15 %
• Light Source: LED, red
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 1,800 Hz
• Response Time: 270 µs
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V2A (1.4305/303)
• Degree of Protection: IP67
• Connection Type: Plug variant

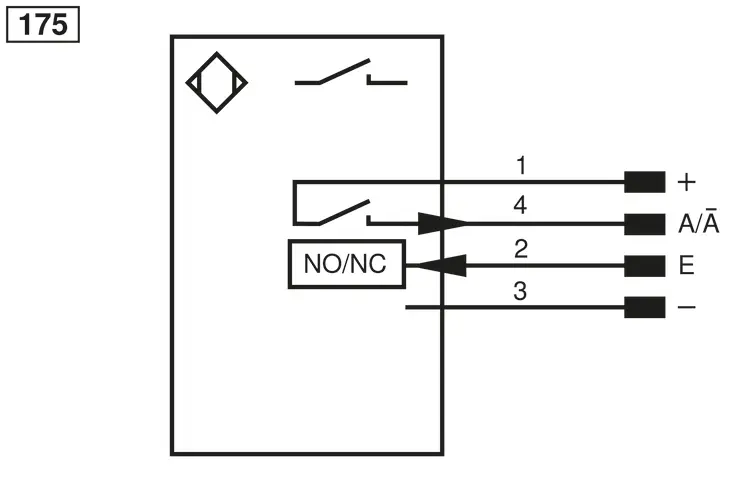

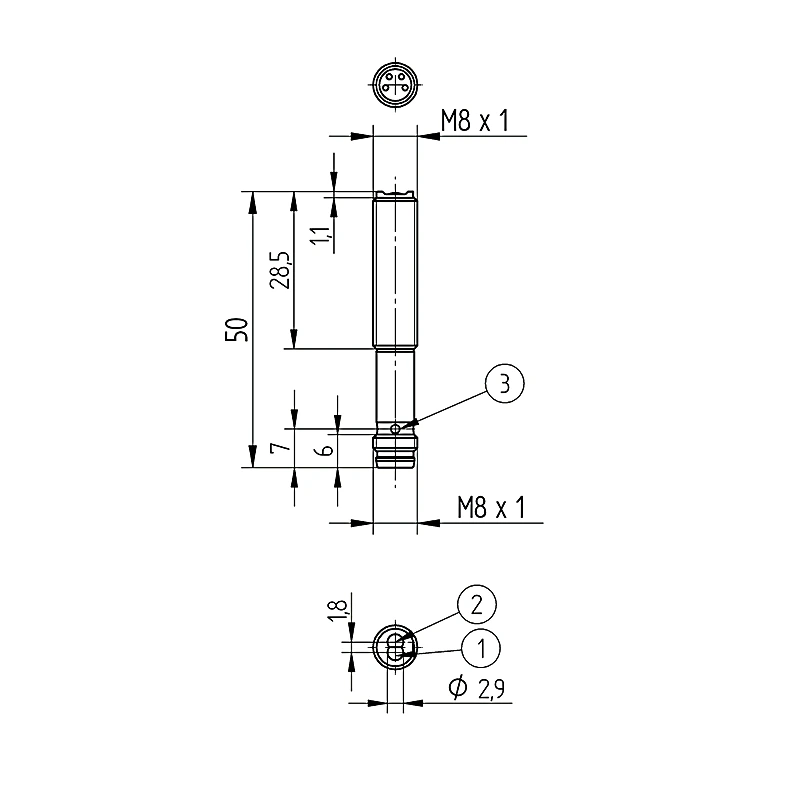

• Connection: M8 × 1; 4-pin
• Weight: 6 g
• Scope of delivery: 1 × initial start-up instructions, 1 × MUTTER-M8-E002 hex nut, 1 × sensor
• PNP NO: yes
• Circuit: NC, NC/NO, NO
• Working Distance: 200 mm, 500 mm, 1000 mm
• Light Spot Diameter: 35 mm, 80 mm, 160 mm
• RQ100BA: 0.02 to 1.3 m
• RE18040BA: 0.02 to 1 m
• RQ84BA: 0.01 to 1.1 m
• RR84BA: 0.02 to 1 m
• RE9538BA: 0.01 to 0.6 m
• RE6151BM: 0 to 1.1 m
• RE6151BA: 0.02 to 0.6 m
• RR50_A: 0 to 0.8 m
• RE6040BA: 0.01 to 0.8 m
• RE8222BA: 0.02 to 0.7 m
• RR34_M: 0.01 to 0.5 m
• RE3220BM: 0 to 0.5 m
• RE6210BM: 0.01 to 0.3 m
• RR25_M: 0.01 to 0.4 m
• RR25KP: 0.01 to 0.25 m
• RR21_M: 0.01 to 0.25 m
• ZRAE02B01: 0.02 to 0.6 m
• ZRME01B01: 0.01 to 0.2 m
• ZRME03B01: 0.02 to 0.6 m
• ZRMR02K01: 0.01 to 0.25 m
• ZRMS02_01: 0.01 to 0.3 m
• RF505: 0.02 to 0.4 m
• RF255: 0.02 to 0.3 m
• RF508: 0.03 to 0.5 m
• RF258: 0.03 to 0.4 m
• ZRDF__K01: 0.03 to 1 m
• Complementary Products: Reflector, Reflector Foil, PNP-NPN Converter BG7V1P-N-2M
