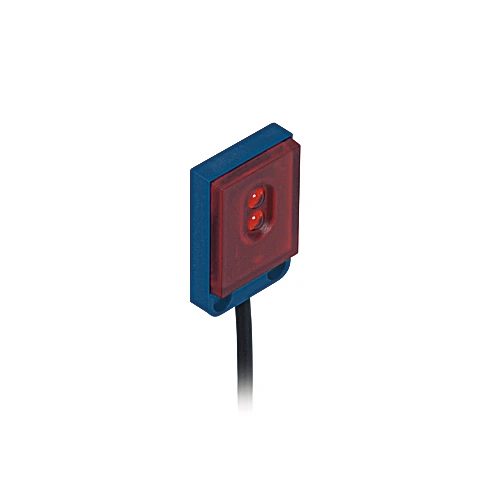

Wenglor L1FL66VB Retro-Reflex Sensor Universal

Features

• Rear panel mounting
• Glossy objects can be detected
• Integrated output
• Range: 1,400 mm
• Reference Reflector/Reflector Foil: RQ100BA
• Switching Hysteresis: < 15 %
• Light Source: LED, red
• Polarization Filter: yes
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 15 °
• Optics: Two-Lens Optic
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 2 kHz
• Response Time: 250 µs
• Temperature Drift: < 10 %
• Temperature Range: 14°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic, ABS-GF
• Degree of Protection: IP67
• Connection Type: Cable variants

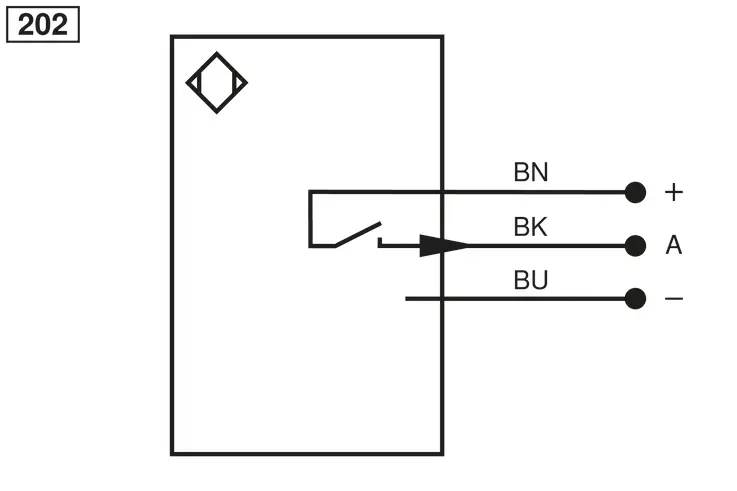

• Connection: Cable; 3-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Wire cross-section: 0.09 mm²
• Weight: 19 g
• Scope of delivery: 1 × BEF-SET-23 mounting set, 1 × initial start-up instructions, 1 × sensor
• PNP NO: yes
• RQ100BA: 0.004 to 1.4 m
• RE18040BA: 0.015 to 0.8 m
• RQ84BA: 0.015 to 1 m
• RR84BA: 0.06 to 1 m
• RE9538BA: 0.02 to 0.5 m
• RE6151BM: 0.02 to 0.2 m
• RE6151BA: 0.02 to 0.3 m
• RR50_A: 0.015 to 0.65 m
• RE6040BA: 0.02 to 0.7 m
• RE8222BA: 0.02 to 0.43 m
• RR34_M: 0.06 to 0.18 m
• RR25_M: 0.05 to 0.4 m
• ZRAE02B01: 0.02 to 0.5 m
• ZRME03B01: 0.1 to 0.5 m
• RF505: 0.13 to 0.5 m
• RF255: 0.13 to 0.35 m
• RF508: 0.15 to 0.35 m
• ZRDF03K01: 0.05 to 0.8 m
• ZRDF10K01: 0.05 to 0.9 m
• Complementary Products: Reflector, Reflector Foil
