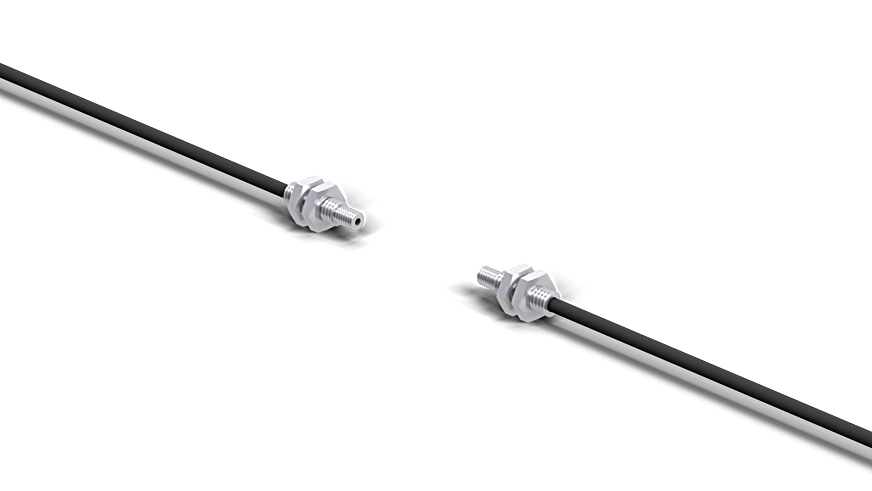

Wenglor K6 Plastic Fiber-Optic Cable Through-Beam Mode

Name: Wenglor K6 Plastic Fiber-Optic Cable Through-Beam Mode
Brand: Wenglor
Price: 154.0 USD
Availability: BackOrder

Plastic Fiber-Optic Cable Through-Beam Mode.

$154.00

Part Number

Highlights...

K6
By Wenglor
FREE Shipping on orders of $2,000 or more
Limited to in-stock inventory

Features

Especially suitable in applications where only minimal space is available
Fiber-optic cable can be cut to length by the cutting tool
Fiber Core Diameter: 1 mm
Fiber: Step Index
Fiber Distribution: parallel arrangement
Range with Sensor Type: 350 mm
Opening Angle: 55 °
Temperature Range: -40°F to 185°F
Bending Radius: 30 mm
Fiber-Optic Length L: 2 m
Jacket Material: Plastic, PE
Fiber Optic Material: Plastic, PMMA
Material End Sleeve: Stainless steel, V2A (1.4305/303)
Jacket Diameter: 2.2 mm
Light Emission: straight
Weight: 19 g
Packaging unit: 1 Piece
Scope of delivery: 1 × Z0015 cutting tool, 2 × fiber-optic cables, 4 × M4 hex nuts
Complementary Products: Lens LA2

Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
