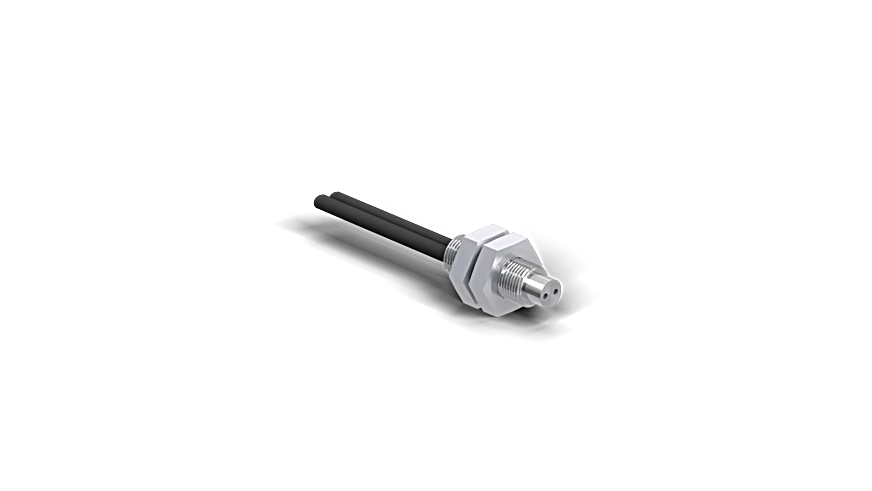

Wenglor K27 Plastic Fiber-Optic Cable Reflex Mode

Plastic Fiber-Optic Cable Reflex Mode.

$231.00
Part Number
  • K27
Highlights...

Features

  • Especially suitable in applications where only minimal space is available
  • Fiber-optic cable can be cut to length by the cutting tool
  • Fiber Core Diameter: 1 mm
  • Fiber: Step Index
  • Fiber Distribution: parallel arrangement
  • Range with Sensor Type: 90 mm
  • Opening Angle: 55 °
  • Temperature Range: -40°F to 185°F
  • Bending Radius: 2 mm
  • Fiber-Optic Length L: 2 m
  • Jacket Material: Plastic, PE
  • Fiber Optic Material: Plastic, PMMA
  • Material End Sleeve: Brass, nickel-plated
  • Jacket Diameter: 2.2 mm
  • Light Emission: straight
  • Weight: 21 g
  • Packaging unit: 1 Piece
  • Scope of delivery: 1 × fiber-optic cable, 1 × Z0015 cutting tool, 2 × M6 hex nuts
Plastic fiber-optic cables are very flexible and suitable for use in confined spaces. The fiber optics are supplied in 2 m lengths. Special lengths of up to 50 m are possible. Users can shorten the fiber optics using the Z0015 cutting tool.
