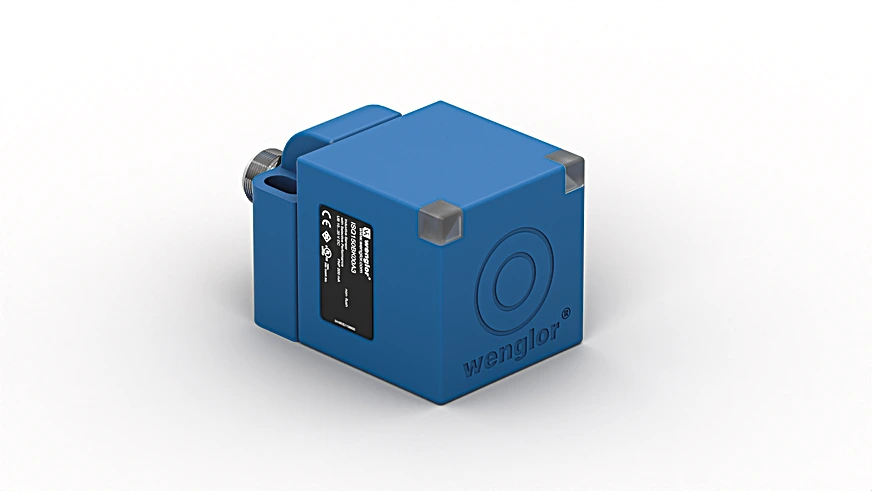

Wenglor ISQ150BK01A3 Inductive Sensor with Selective Performance

Features

• For ferrous magnets
• Switching Distance: 15 mm
• Correction Factors Fe360/Stainless Steel V2A/CuZn/Al: 1/0/0/0
• Mounting: Flush

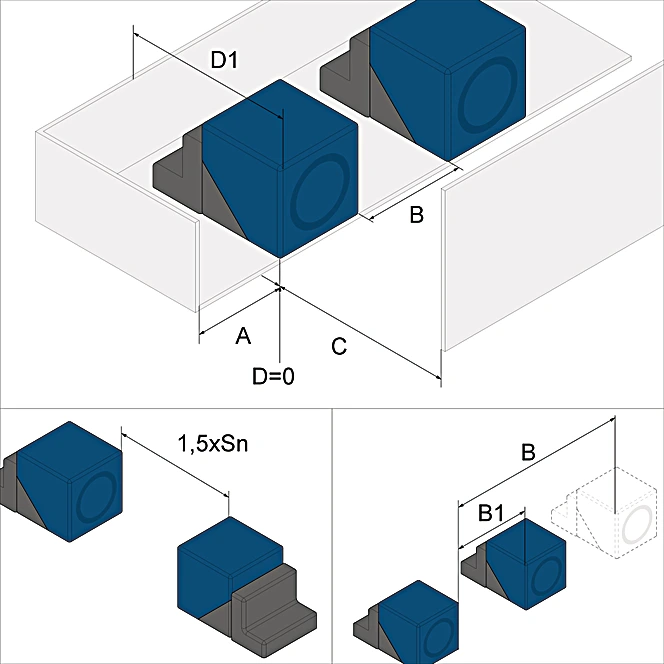

• Mounting A/B/C/D in mm: 0/40/45/0
• Switching Hysteresis: < 10 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 10 mA
• Switching Frequency: 500 Hz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 176°F
• Switching Output Voltage Drop: < 1.5 V
• Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic, ABS
• Sensing face: Plastic, PBT
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection Type: Plug variant
• Connection: M12 × 1; 4-pin
• Weight: 121 g
• MTTFd (EN ISO 13849-1): 1,840.77 a
• Stock Type: X
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor

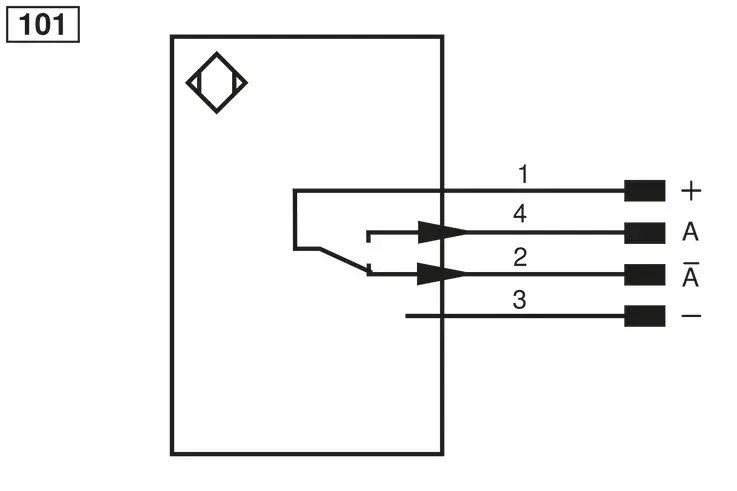

• PNP NC, PNP NO: yes
• Complementary Products: PNP-NPN Converter BG2V1P-N-2M
