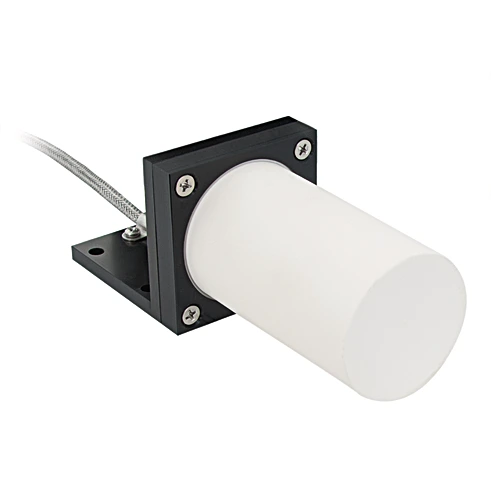

Wenglor INRT004 Inductive Sensor Head cable length: 5 m
Inductive Sensor Head cable length: 5 m.
Overview
Features
- Long service life of up to 100 000 hours
- Quickly interchangeable sensor head
- Switching Distance: 25 mm
- Correction Factors Stainless Steel V2A/CuZn/Al: 1,27/1,29/1,33
- Mounting: Non-flush

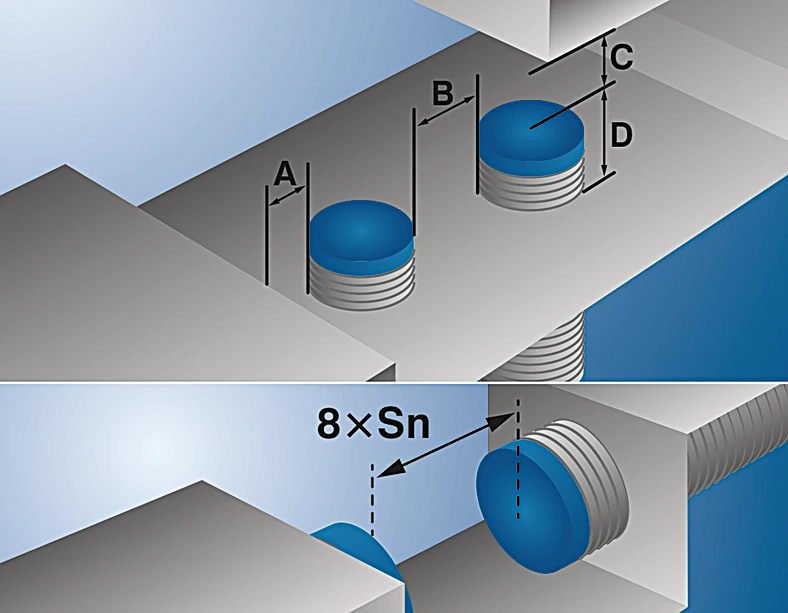

- Mounting A/B/C/D in mm: 95/200/40/85
- Sensor head temperature range: -76°F to 842°F
- Protection Class: III
- Service Life: 100,000 h
- Sensing face: Ceramic
- Sensor head material: Aluminum, anodised
- Degree of protection, sensor head: IP60
- Connection Type: 1 plug with cable
- Connection: M12 × 1; 4-pin
- Cable length (L): 5 m
- Cable Jacket Material: Stainless steel, V2A (1.4301/304)
- Outer diameter cable: 6.6 mm
- PWIS-free: yes
- Weight: 1,222 g
- Scope of delivery: 1 × sensor
Description
The sensors consist of a sensor head and an analysis module, and are laid out for use in very hot work environments. Together with unparalleled service life in hot surroundings, large switching distances assure maximum system availability. Easily interchangeable sensor heads with numerous standard cable lengths are additionally available as separate replacement parts.Switching distance can be quickly adjusted via a potentiometer within a temperature range of -60 to 842°F.
