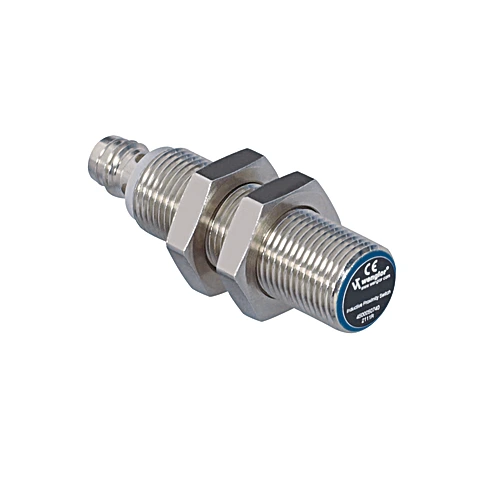

Wenglor IB040BM46VB8 Inductive Sensor with Standard Switching Distances

Features

• Switching Distance: 4 mm
• Correction Factors Stainless Steel V2A/CuZn/Al: 0,77/0,50/0,48
• Mounting: Flush

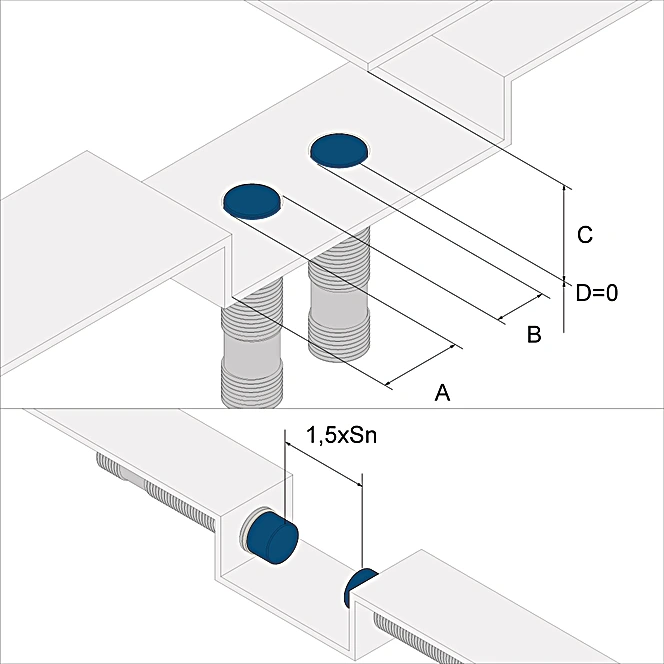

• Mounting A/B/C/D in mm: 0/12/12/0
• Switching Hysteresis: < 15 %
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 6 mA
• Switching Frequency: 700 Hz
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 176°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 200 mA
• Residual Current Switching Output: < 100 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Brass, nickel-plated
• Full Encapsulation: yes
• Degree of Protection: IP67
• Connection Type: Plug variant

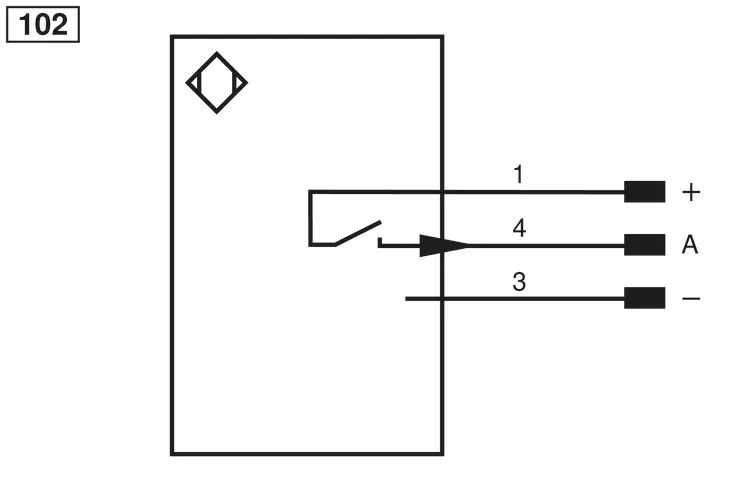

• Connection: M8 × 1; 3-pin
• Weight: 11 g
• MTTFd (EN ISO 13849-1): 5,870.82 a
• Scope of delivery: 1 × MUTTER-M12-E001 hex nut, 1 × sensor
• Packaging unit: 1 Piece
• PNP NO: yes
• Complementary Products: PNP-NPN Converter BG8V1P-N-2M
