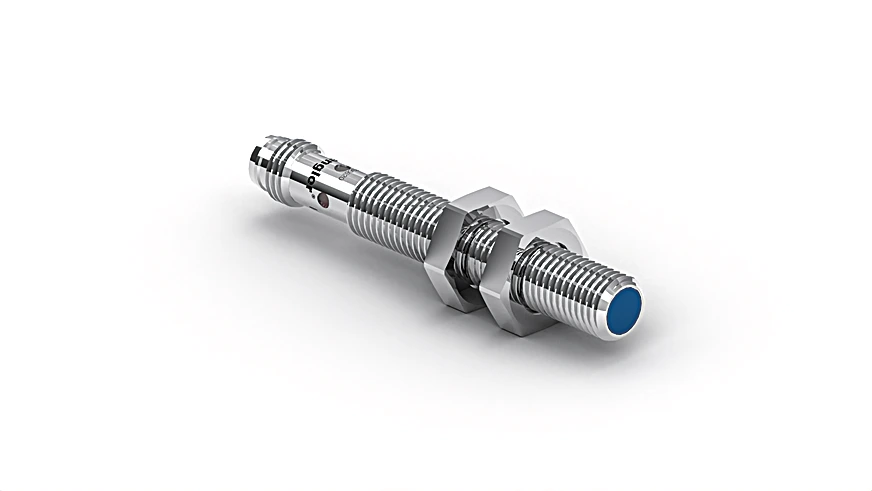

Wenglor I08H029 Inductive Sensor with Increased Switching Distance

Inductive Sensor with Increased Switching Distance.

$73.80
Part Number
  • I08H029
Highlights...

Features

  • Increased switching distance
  • Minimal mounting clearance thanks to wenglor weproTec
  • Innovative ASIC circuit technology
  • Integrated error display
  • Switching Distance: 2 mm
  • Correction Factors Stainless Steel V2A/CuZn/Al: 0,81/0,39/0,42
  • Mounting: Flush

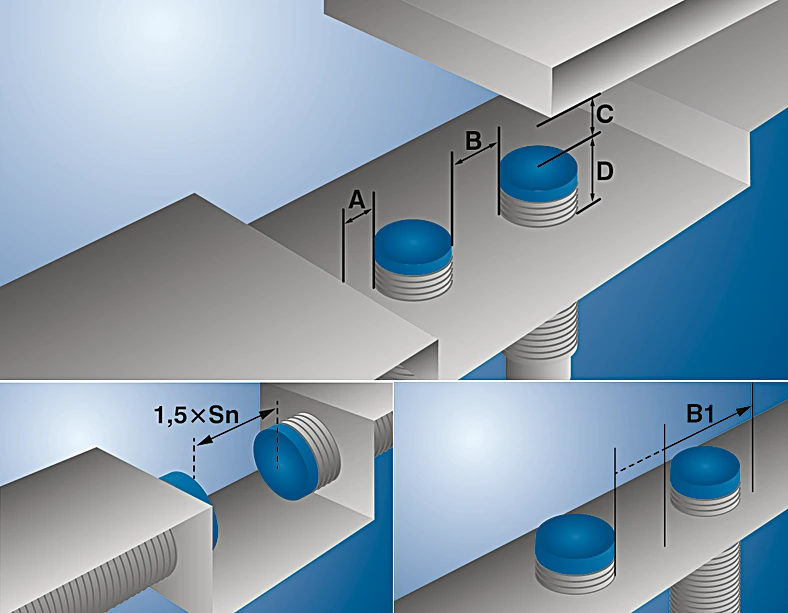

  • Mounting A/B/C/D in mm: 0/8/6/0
  • Mounting B1 in mm: 0 to 1
  • Switching Hysteresis: < 10 %
  • Supply Voltage: 10 to 30 V DC
  • Current Consumption (Ub = 24 V): < 9 mA
  • Switching Frequency: 1,120 Hz
  • Temperature Drift: < 10 %
  • Temperature Range: -40°F to 176°F
  • Switching Output Voltage Drop: < 1 V
  • Switching Output/Switching Current: 150 mA
  • Residual Current Switching Output: < 100 µA
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Protection Class: III
  • Housing Material: Brass, nickel-plated
  • Sensing face: Plastic, PBT
  • Degree of Protection: IP67
  • Connection Type: Plug variant

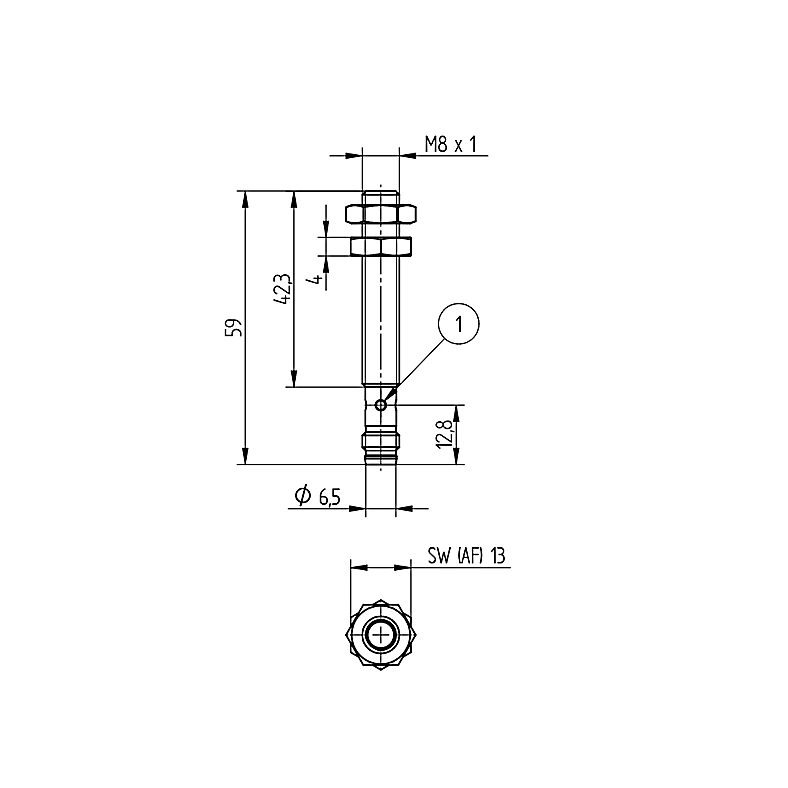

  • Connection: M8 × 1; 3-pin
  • Weight: 18 g
  • MTTFd (EN ISO 13849-1): 3,706.54 a
  • Scope of delivery: 1 × MUTTER-M8-E001 hex nut, 1 × sensor
  • Packaging unit: 1 Piece
  • Error Indicator: yes

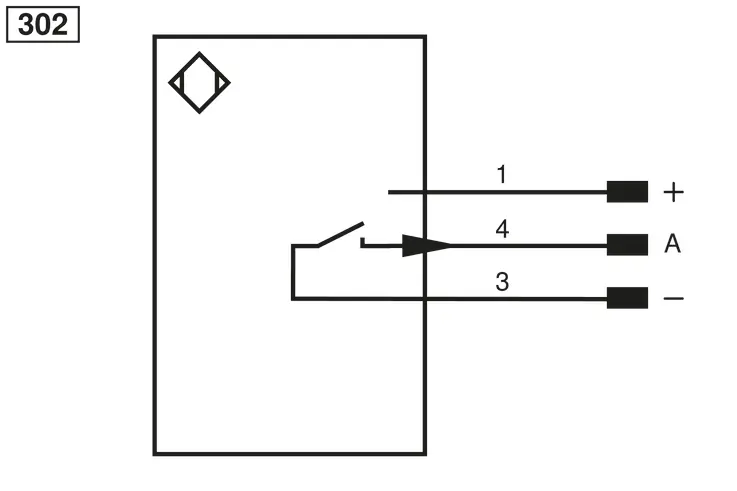

  • NPN NO: yes
Inductive Sensors with increased switching distances are distinguished by rugged design, easy installation and reliable measured values. The large range makes additional types of sensor superfluous because they can also be used to implement special applications. In addition to error-free operation of several sensors in a very small space, the new generation also provides the possibility of detecting system errors before it's too late thanks to ASIC und wenglor weproTec.
