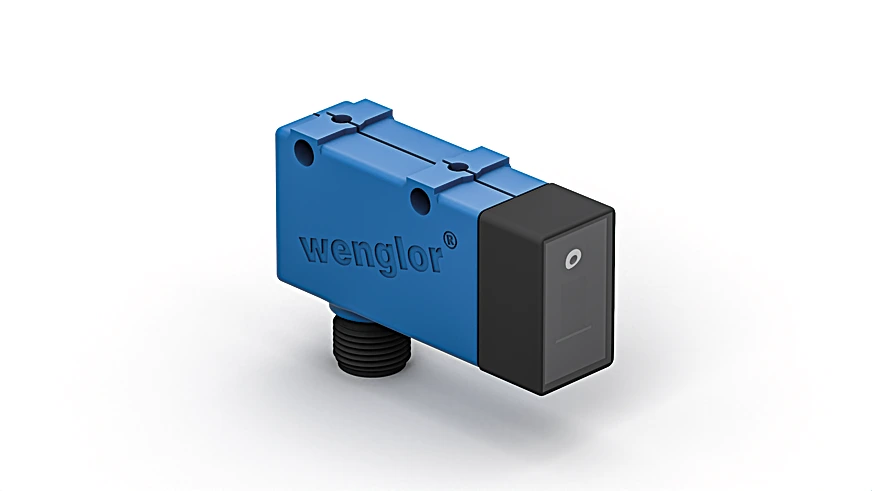

Wenglor GM04VC2 Gloss Sensor

Features

• Adjustable gloss level
• Practically independent of distance
• Reliable differentiation between glossy and matte objects
• Working Range: 5 to 40 mm
• Light Source: Laser, red
• Wavelength: 650 nm
• Service Life (T = 77°F): 100,000 h
• Laser Class (EN 60825-1): 2
• Max. Ambient Light: 10,000 Lux
• Light Spot Diameter: see table 1
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 20 mA
• Switching Frequency: 1,900 Hz
• Response Time: 263 µs
• Temperature Drift: < 5 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• PNP Switching Output/Switching Current: 200 mA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• FDA Accession Number: 0820517-000

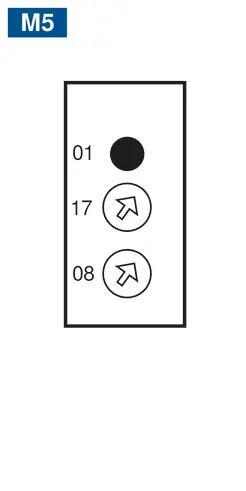

• Setting Method: Potentiometer
• Housing Material: Plastic, ABS, Plastic, PBT
• Optic Cover: Glass
• Full Encapsulation: yes
• Degree of Protection: IP67

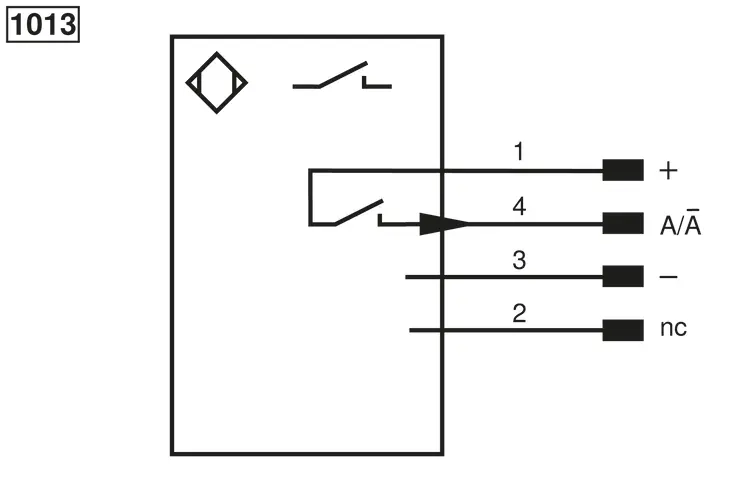

• Connection: M12 × 1; 4-pin
• Weight: 33 g
• Scope of delivery: 1 × BEF-SET-02 mounting set, 1 × initial start-up instructions, 1 × sensor
• PNP NO/NC switchable: yes
• Circuit: NC, NC/NO, NO
• Remission from Object: > 30 %, ~ 18 %, ~ 6 %

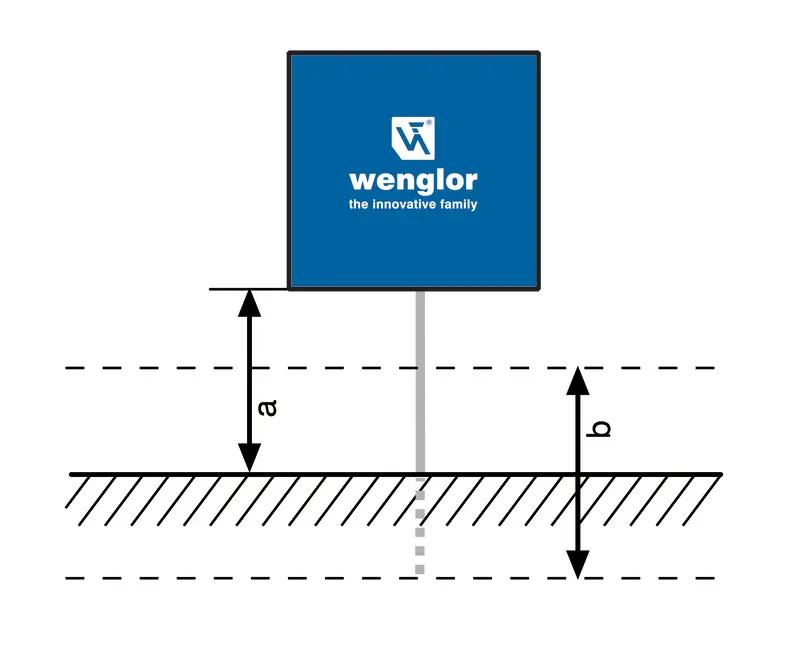

• Working Distance: 20 mm, 15 mm, 10 mm
• Working Range: ± 15 mm, ± 10 mm, ± 5 mm
• Spot Size: 6 × 20 mm, 4,5 × 15 mm, 3 × 10 mm
• Complementary Products: PNP-NPN Converter BG2V1P-N-2M
