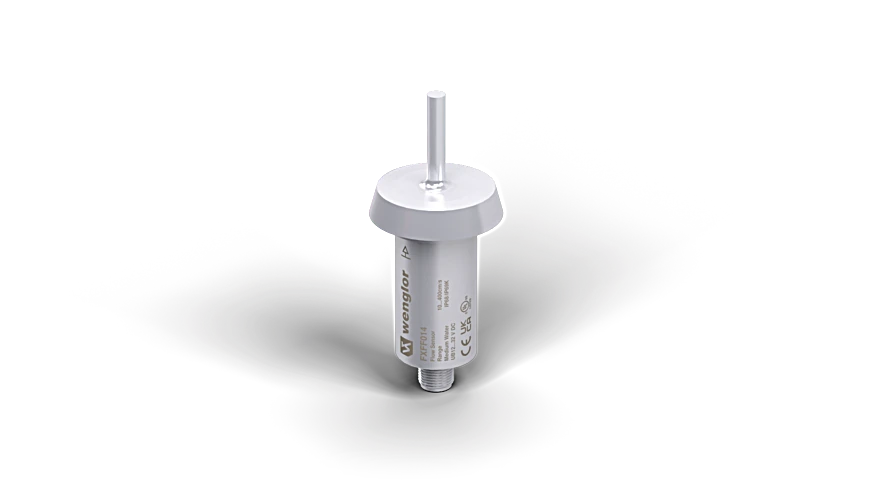

Wenglor FXTT015 Temperature Sensor with IO-Link

Features

• FDA compliant
• Ready for Industry 4.0 with IO-Link 1.1
• Response time T90: < 2 seconds
• Temperature measuring range: -58°F to 302°F
• Temperature Measurement Range: -58°F to 302°F
• Setting Range: -58°F to 302°F
• Medium: Liquids, gases
• Measuring error: ± 32.9°F
• Resolution: > 11 bit
• Response Time: < 2 s
• Temperature of medium: -58°F to 302°F
• Ambient temperature: -13°F to 176°F
• Storage temperature: -13°F to 176°F
• Pressure Resistance: 40 bar
• EMC: DIN EN 61326-1
• Shock Resistance: IEC 60751
• Vibration resistance: IEC 60751
• 2-wire supply power: 12 to 32 V DC
• 3-wire supply power: 12 to 32 V DC
• Current Consumption (Ub = 24 V): < 15 mA
• Number of Switching Outputs: 2
• Switching Output/Switching Current: ± 100 mA
• Switching Output Voltage Drop: < 1.5 V DC

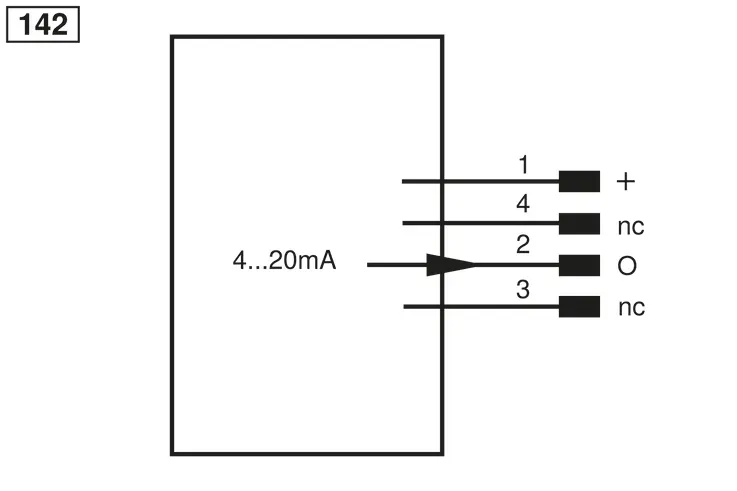

• Analog Output: 4 to 20 mA
• Signal source: Temperature
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Interface: IO-Link V1.1
• Setting Method: IO-Link
• Housing Material: Stainless steel, V4A (1.4404/316L)
• Material in contact with media: Stainless steel, V4A (1.4404/316L)
• Degree of Protection: IP68 *, IP69K *
• Connection Type: Plug variant

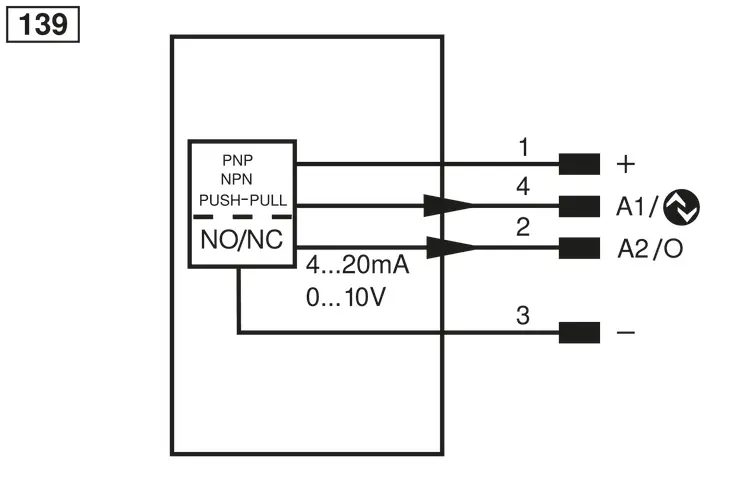

• Connection: M12 × 1; 4-pin

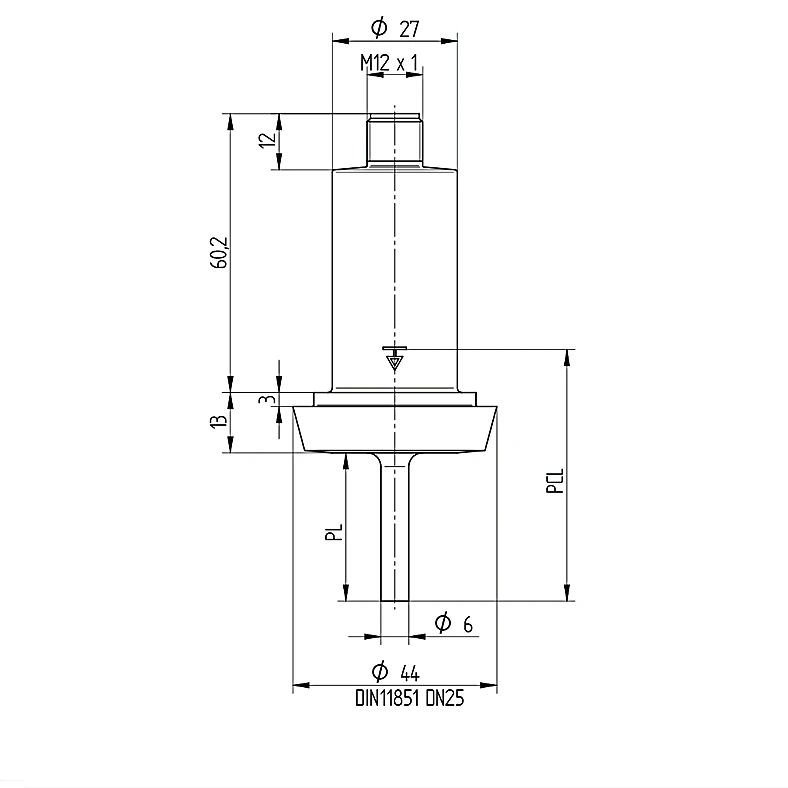

• Process Connection: Dairy pipe DN25
• Process Connection Length (PCL): 54 mm
• Probe Length (PL): 36 mm
• Weight: 347 g
• MTTFd (EN ISO 13849-1): 1,198.4 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Approvals: FDA compliant, EHEDG
• Analog Output: yes
• IO-Link: yes
• PNP NO: yes
• Analog output: 0 to 10 V, 4 to 20 mA
• Output: Analog Output, Push-pull, NPN, PNP
• Circuit: NC, NC/NO, NO
• Other parameters: 2 switching points, Selectable measurement range
• Complementary Products: IO-Link converter, IO-Link Master, Software
