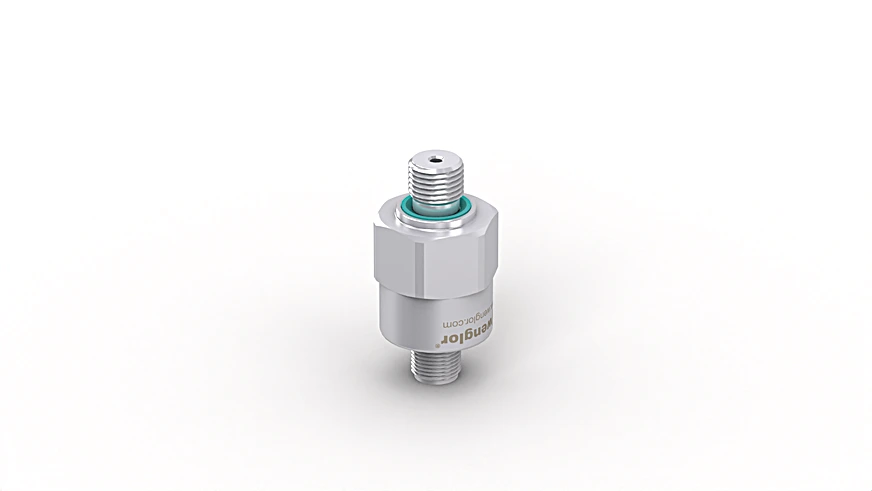

Wenglor FX9P203 Pressure Sensor

Features

• Compact, laser-welded stainless steel 316L housing
• Analog output: 4…20 mA
• Very fast response time of < 1 s
• Sensor element: Stainless steel membrane
• Measuring Range: 0 to 250 bar
• Measurement Type: relative
• Maximum overload pressure: 500 bar
• Bursting pressure: 750 bar
• Medium: Liquids, gases
• Pressure response time (t90): < 1 ms
• Measuring error (total): ± 1 %
• Temperature of medium: -13°F to 257°F**
• Ambient temperature: -13°F to 176°F
• Atmospheric humidity: 100% r.h.
• Storage temperature: -13°F to 176°F
• EMC: DIN EN 61326-2-3
• Shock resistance per DIN IEC 68-2-27: 50 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 10 g (10 to 2000 Hz)
• Supply Voltage: 12 to 32 V DC
• Current Consumption (Ub = 24 V): < 21 mA
• Number of analog outputs: 1
• Analog Output: 4 to 20 mA
• Signal source: Pressure
• Current Output Load Resistance: < 500 Ohm
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Protection Class: III
• Housing Material: Stainless steel, V4A (1.4404/316L)
• Material in contact with media: Stainless steel, V4A (1.4404/316L), Stainless steel, V4A (1.4548/630), Rubber, FKM
• Degree of Protection: IP68 *, IP69K *
• Connection Type: Plug variant

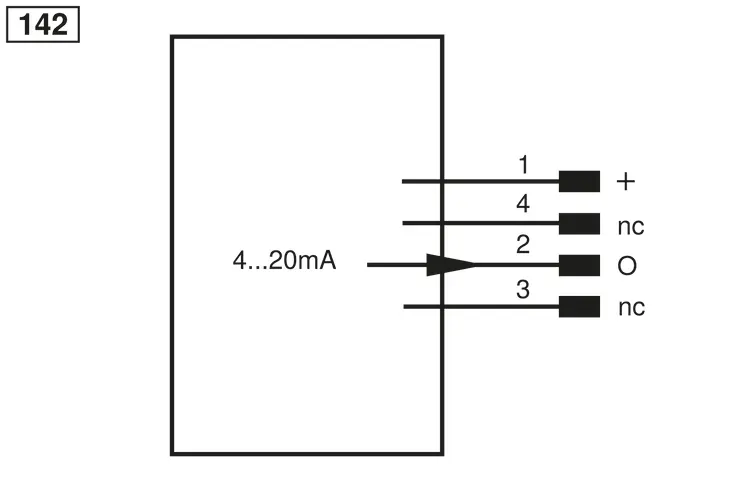

• Connection: M12 × 1; 4-pin

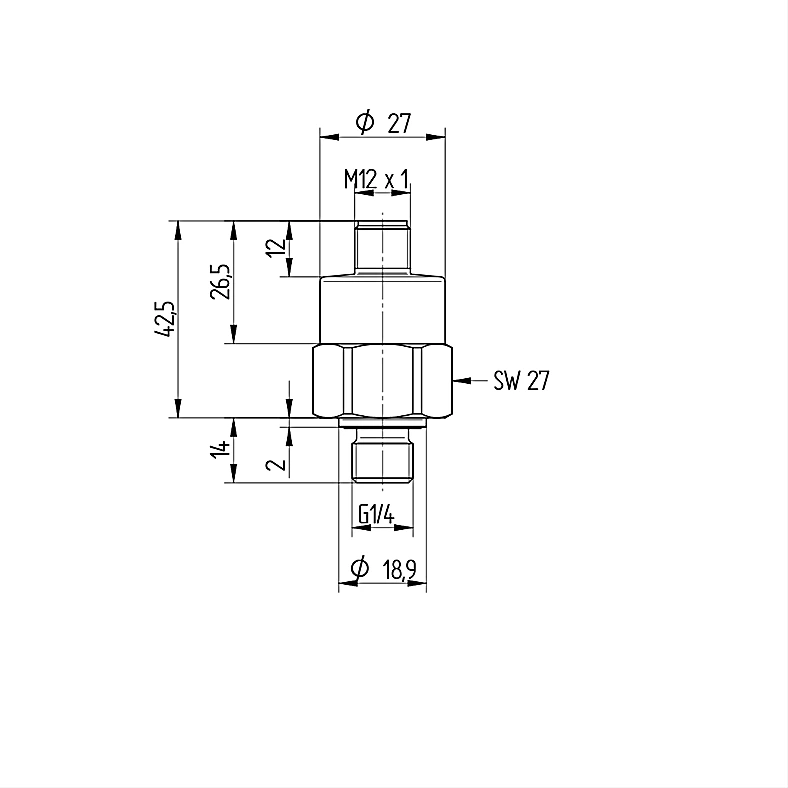

• Process Connection: G 1/4"
• Thread: External thread
• Seal material: Fluororubber, FKM
• Weight: 224 g
• MTTFd (EN ISO 13849-1): 3,283.16 a
• Scope of delivery: 1 × initial start-up instructions, 1 × sensor
• Analog Output: yes
• Complementary Products: IO-Link converter
