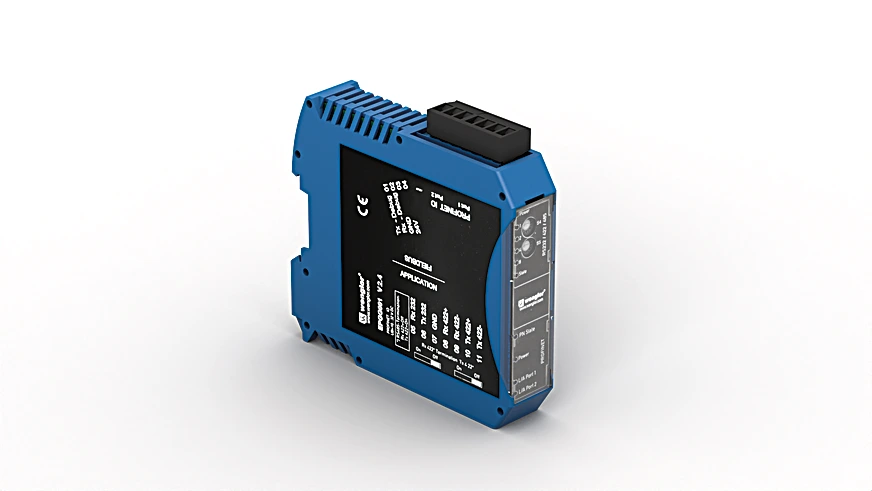

Wenglor EPGG001 Fieldbus Gateway RS-232 to PROFINET

Fieldbus Gateway RS-232 to PROFINET.

$802.00
Part Number
  • EPGG001
Highlights...

Features

  • Easy handling
  • Gateway from RS-232/422/485 interfaces to PROFINET
  • With two Industrial Ethernet ports
  • Supply Voltage: 10 to 32 V DC
  • Current Consumption Gateway (Ub = 24 V): < 100 mA
  • Temperature Range: 32°F to 131°F
  • Short Circuit Protection: yes
  • Reverse Polarity Protection: yes
  • Overload Protection: yes
  • Interface: RS-232
  • Baud Rate RS-232: < 115,200 Bd
  • Baud Rate PROFINET: < 100 MBd
  • Number of users: 512
  • Protection Class: III
  • Material: Plastic, PA
  • Degree of Protection: IP20
  • Connection Mode Supply Voltage: Terminal Block
  • Connection RS-Side: Terminal Block
  • Connection Bus Side: RJ45
  • DIN-Rail mounting: 35 mm
  • Weight: 190 g
  • Scope of delivery: 1 × fieldbus gateway
  • Complementary Products: Software
These fieldbus gateways allow an easy connection of sensors and scanners to PROFINET.
