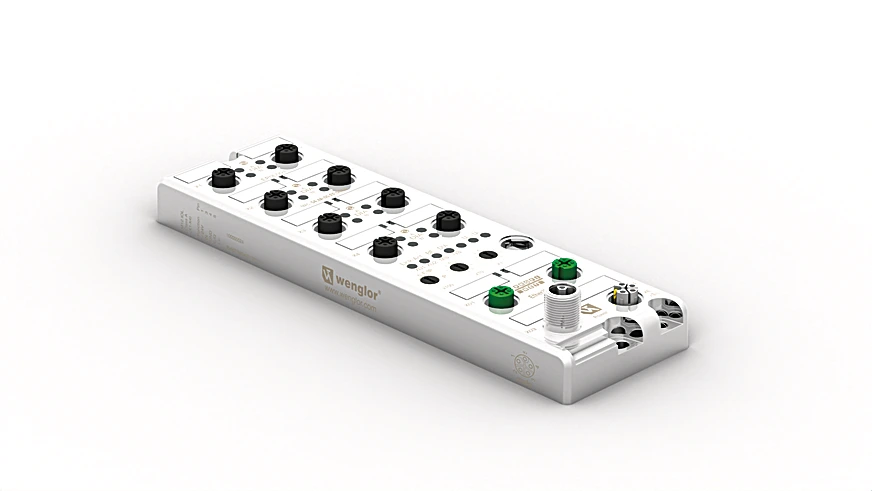

Wenglor EP0L001 IO-Link Master Multiprotocol

Features

• 8 IO-Link ports
• Robust zinc diecasting housing
• Protection mode IP69K
• Supply Voltage: 18 to 30 V DC
• Power consumption of device max.: 0.18 A
• Max. Switching Current Switching Outputs: 0.5 A
• Max. Switching Current Switching Outputs IO-Link: 0.5 A
• max. total current of the digital I/O ports: 14 A
• Sensor Supply Voltage (Pin 1): 500 mA
• Switching Output Voltage Drop: < 2.5 V
• Temperature Range: -4°F to 158°F
• Atmospheric humidity: 98 % ambient humidity
• Digital I/O ports short circuit protected: yes
• Digital I/O ports overload protected: yes
• Digital I/O ports reverse polarity protected: yes
• Standard I/O-Pins: 12
• Number of IO-link ports: 8
• Inputs according to DIN EN 61131-2:2003: Type 1
• Auto-Crossover: yes
• Auto-Negotiating: yes
• Auto-Polarity: yes
• Protection Class: III
• Shock resistance per DIN IEC 68-2-27: 50 g / 11 ms
• Vibration resistance per DIN IEC 60068-2-6: 15 g (5 to 500 Hz)
• Setting Method: Web server
• Housing Material: Zinc diecasting
• Degree of Protection: IP65, IP67, IP69K

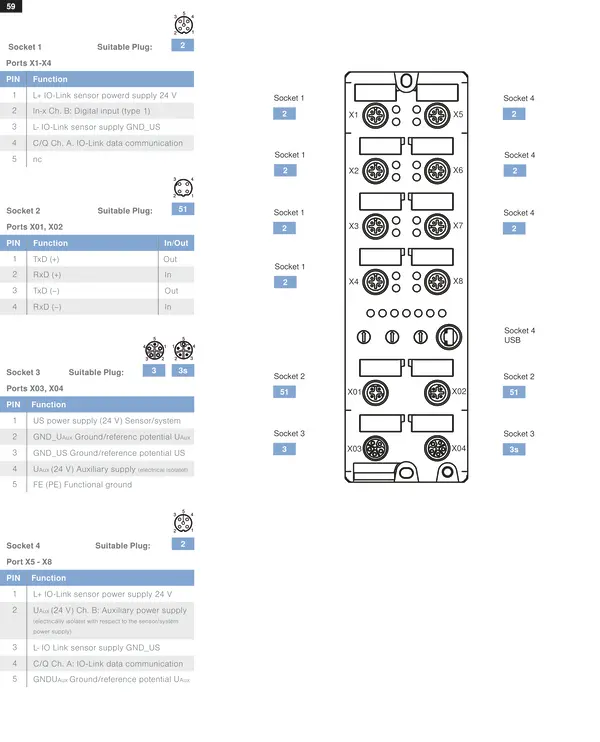

• Type of connection digital I/O ports: M12 × 1; 4-pin
• Type of Connection Power: 2× M12; 5-pin, L-cod.
• Type of Connection Industrial Ethernet Ports: 2× M12; 4-pin, D-cod.
• Weight: 623 g
• Scope of delivery: 1 × IO-Link master
• Interface: EtherNet/IP, IO-Link, PROFINET I/O, CC-C
• Number of Industrial Ethernet Ports: 2 × M12, 4-pin
• Number of I/Os: 12 × switchable
• Communication Mode IO-Link: SIO, COM1, COM2, COM3
• Interface: Ethernet
• IO-Link Version: 1.1
• Transmission rate: 100 Mbit/s
• Transmission Mode: Full Duplex
• Switch Mode: Store & Forward
• VLAN Prioritization: yes
• Default IP: 192.168.100.1
