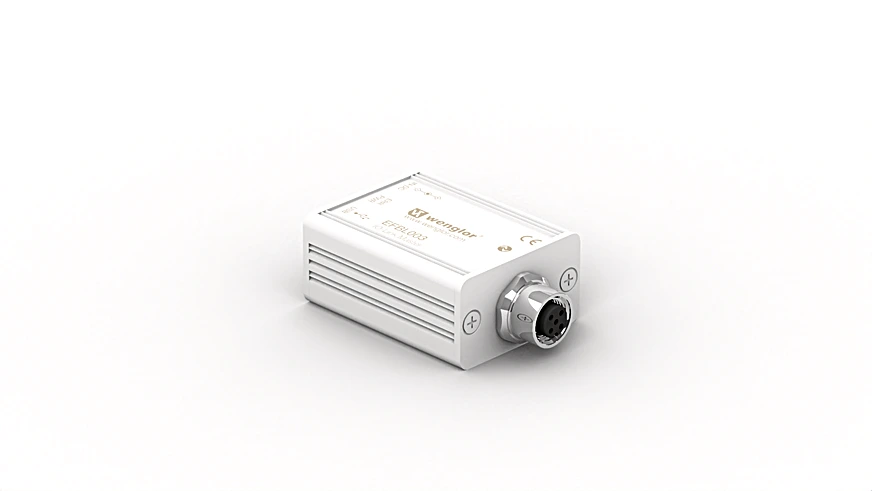

Wenglor EFBL003 IO-Link Master USB

IO-Link Master USB.

$522.00
Part Number
  • EFBL003
Highlights...

Features

  • Compatible with wTeach2
  • IO-Link version 1.1
  • Compatible with IO-Link Device Tool DNNF019
  • Supply Voltage: 24 V
  • Temperature Range: 32°F to 131°F
  • Number of IO-link ports: 1
  • Protection Class: III
  • Housing Material: Aluminum, Aluminum, anodised
  • Degree of Protection: IP54
  • Type of connection digital I/O ports: M12 × 1; 4-pin
  • Weight: 69 g
  • Scope of delivery: 1 × IO-Link master, 1 × mains power pack, USB A-B cable
  • Interface: IO-Link, USB port
  • Communication Mode IO-Link: COM1, COM2, COM3
  • Interface: USB
  • IO-Link Version: 1.0, 1.1
  • IO-link port: Class A
  • Complementary Products: Software
Sensors and actuators with an IO-Link interface (IO-Link devices) can communicate with this product. All IO-Link devices are equipped with an input-output device description file (IODD) which contains information regarding identification and device parameters, as well as process and diagnostics data. This file can be read in by the software at the IO-Link master, so that the sensor or actuator can be conveniently set up and operated. The tool is used to preconfigure, test and demonstrate IO-Link devices. The tool is not intended for continuous operation in production systems.
