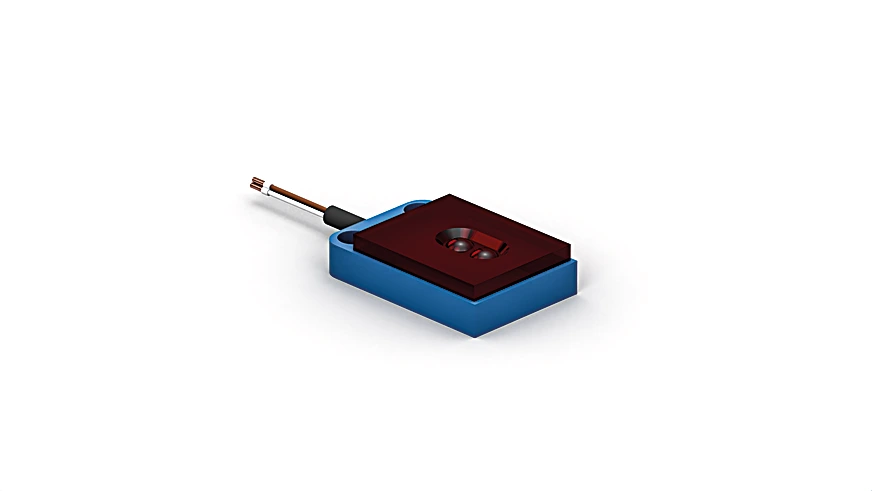

Wenglor E1FL66VD Through-Beam Sensor

Features

• Integrated output
• Recognition of small parts
• Rear panel mounting
• Range: 1,000 mm
• Switching Hysteresis: < 15 %
• Light Source: Infrared, LED
• Service Life (T = 77°F): 100,000 h
• Max. Ambient Light: 10,000 Lux
• Opening Angle: 30 °
• Sensor Type: Receiver
• Supply Voltage: 10 to 30 V DC
• Current Consumption (Ub = 24 V): < 30 mA
• Switching Frequency: 500 Hz
• Response Time: 1 ms
• Temperature Drift: < 10 %
• Temperature Range: -13°F to 140°F
• Switching Output Voltage Drop: < 2.5 V
• Switching Output/Switching Current: 100 mA
• Residual Current Switching Output: < 50 µA
• Short Circuit Protection: yes
• Reverse Polarity Protection: yes
• Overload Protection: yes
• Protection Class: III
• Housing Material: Plastic, ABS-GF
• Degree of Protection: IP67

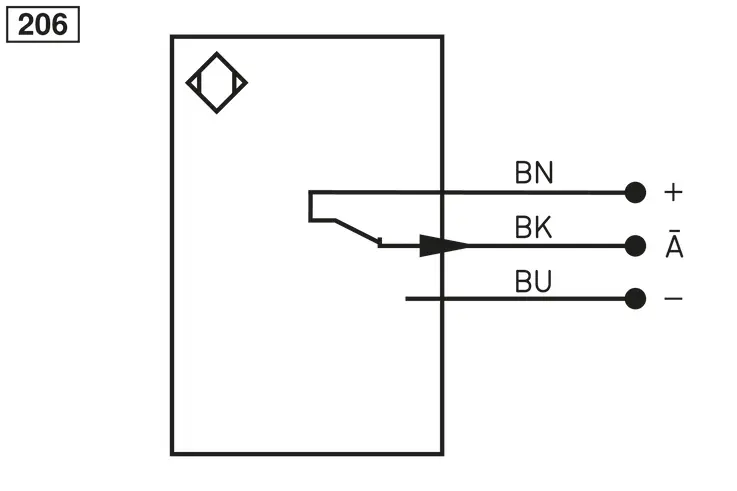

• Connection: Cable; 3-wire
• Cable length (L): 2 m
• Cable Jacket Material: PVC
• Wire cross-section: 0.09 mm²
• Weight: 21 g
• MTTFd (EN ISO 13849-1): 5,592.92 a
• Scope of delivery: 1 × BEF-SET-23 mounting set, 1 × initial start-up instructions, 1 × sensor
• PNP NC: yes
