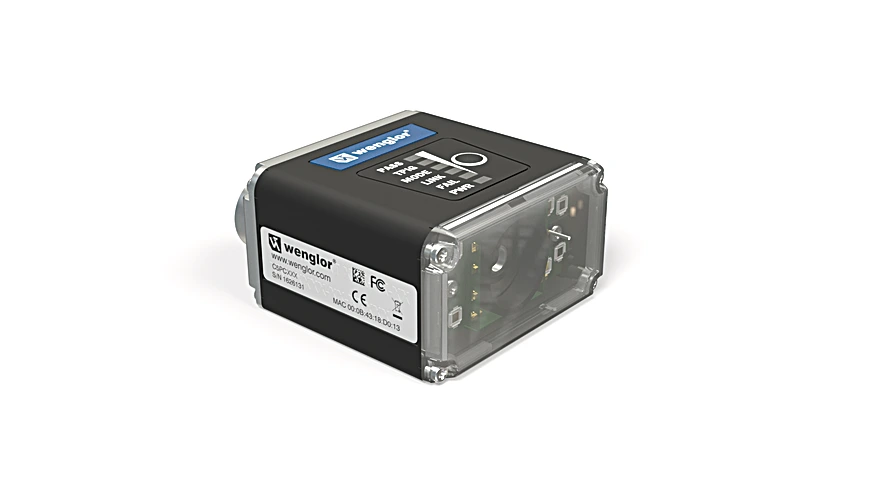

Wenglor C5PC220 1D/2D Code Scanner

Features

• Auto-button function
• Integrated LED illumination
• Integrated code reconstruction
• Web link
• PROFINET and EtherNet/IP™
• Barcode Density: Standard density

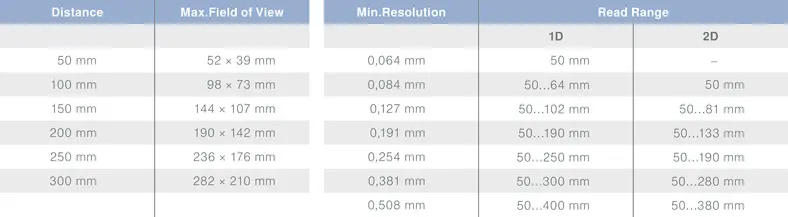

• Read Range: 50 to 300 mm
• Resolution: 2,592 × 1,944 Pixel
• Resolution: 5 MP
• Focal distance: 5.2 mm
• Optics: Auto-focus
• Pixel Size: 1.75 × 1.75 µm
• Light Source: LED, white
• Wavelength: 617 nm
• Focus: Autofocus
• min. Resolution: > 0.064 mm
• Temperature Range: 32°F to 113°F
• Atmospheric humidity: 5 to 95%, non-condensing
• Supply Voltage: 5 to 30 V DC
• Current Consumption (Ub = 24 V): 180 mA
• Scan Rate: 5 scans/sec
• Switching Output: Optoisolator
• Number of Switching Outputs: 3
• Switching Output/Switching Current: 100 mA
• Reverse Polarity Protection: yes
• Interface: RS-232/Ethernet
• Trigger Input: Optoisolator
• Signal Input: Optoisolator
• Number of Signal Inputs: 3
• Setting Method: Ethernet
• Housing Material: Aluminum, anodised
• Optic Cover: Plastic, PMMA
• Degree of Protection: IP65, IP67
• UL Enclosure Type: 1

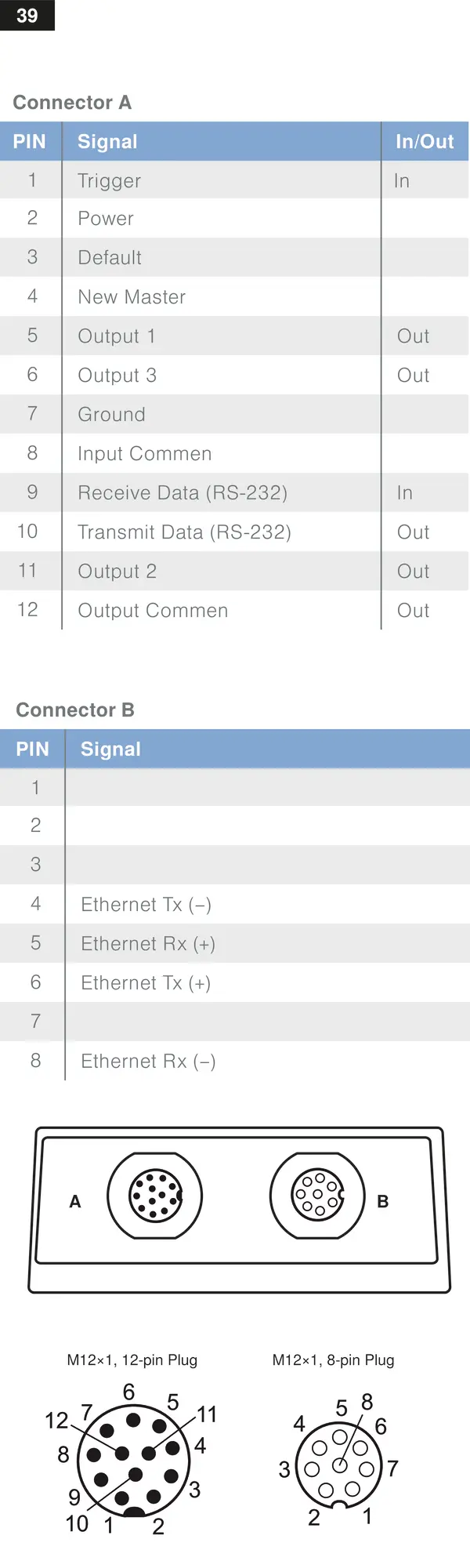

• Connection: M12 × 1; 12-pin
• Type of Connection Ethernet: M12 × 1; 8-pin
• Minimum object distance: 50 mm
• Weight: 64 g
• PNP NO/NC switchable: yes
• NPN NO/NC switchable: yes
• Ethernet: yes
• PROFINET-I/O, CC-B: yes
• EtherNet/IP™: yes
• Complementary Products: ZNNG031 Polarization filter, Path-Folding Mirror ZNNG028, Connection Cable ZCYV00x, Protective Housing ZSV-0x-01, Software, ZNNG054 Optical diffuser, ZNNG053 Replacement disc, ZNNG056 ESD protective screen, Polarization Filter ZNNG005, ZVPB40801, ZNNG057 YAG filter, ZDCG005 connection cable
