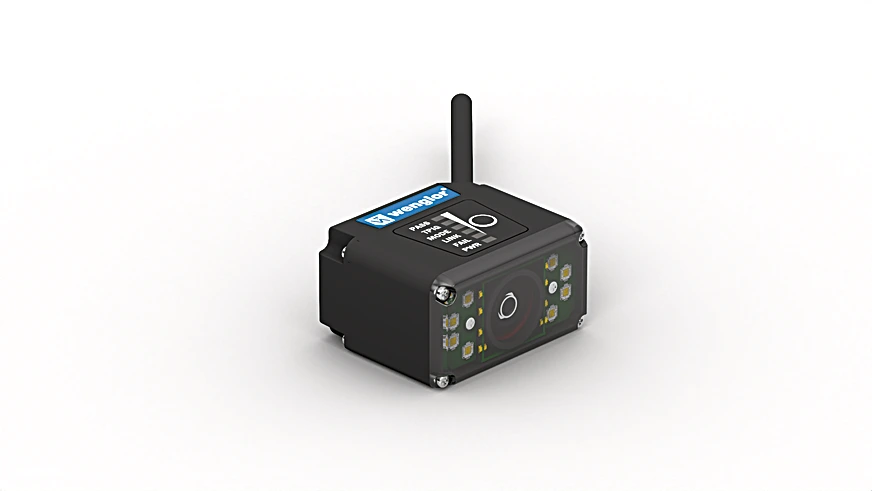

Wenglor C5KC004 1D/2D Code Scanner

1D/2D Code Scanner.

$3,161.00
Part Number
  • C5KC004
Highlights...

Features

  • Auto-button function
  • Integrated LED illumination
  • Integrated code reconstruction
  • Web link
  • Barcode Density: High density
  • Resolution: 752 × 480 Pixel
  • Resolution: 0.36 MP
  • Focal distance: 7.7 mm
  • Optics: Auto-focus
  • Pixel Size: 6 × 6 µm
  • Light Source: LED, red
  • Wavelength: 617 nm
  • Service Life (T = 77°F): 50,000 h
  • Temperature Range: 32°F to 104°F
  • Supply Voltage: 5 V DC
  • Current Consumption (Ub = 24 V): 600 mA
  • Scan Rate: 60 scans/sec
  • Switching Output: TTL
  • Number of Switching Outputs: 3
  • Switching Output/Switching Current: < 100 mA
  • Reverse Polarity Protection: yes
  • Interface: USB/RS-232
  • Trigger Input: Optoisolator
  • Signal Input: Optoisolator
  • Number of Signal Inputs: 3
  • Housing Material: Aluminum, anodised
  • Optic Cover: Plastic, PMMA
  • Degree of Protection: IP54
  • UL Enclosure Type: 1

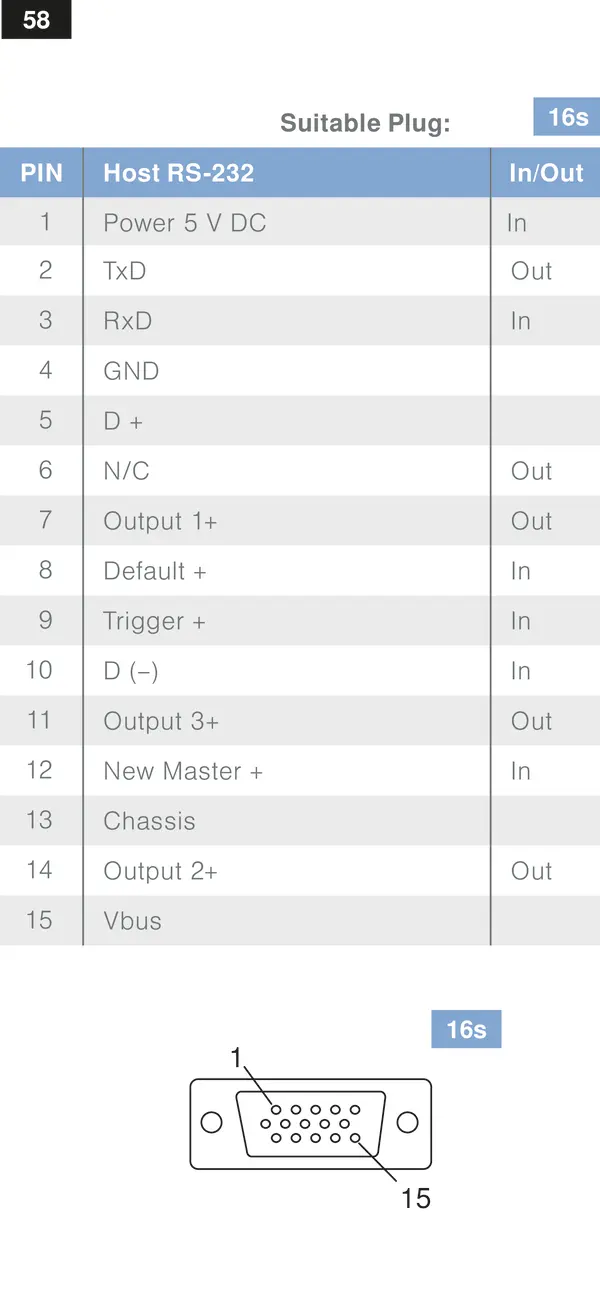

  • Connection: SubD 15-pin
  • Minimum object distance: 50 mm
  • Weight: 68 g
  • Complementary Products: Path-Folding Mirror ZNNG028, Interface cable ZDNV007, Connection Box AB-0003-1, Protective Housing ZSV-0x-01, Software, Optical diffuser
These 2D code scanners are suitable for omnidirectional scanning of 1D and 2D codes. The following code types can be processed: 1D codes: Code39, Code93, Code128, UPC/EAN, BC412, Interleaved 2 of 5, Codabar, Postal Codes, Pharmacode 2D codes: DataMatrix ECC 0 to 200, PDF417, Micro PDF417, QR-Code, Micro QR-Code, Aztec Code, GS1 Databar, Dot code Additional code types upon request.
