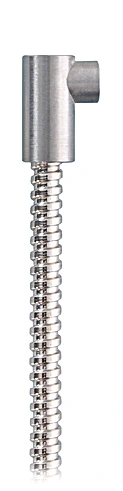

Wenglor 231-337-208T Glass Fiber-Optic Cable Reflex Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Heat resistant up to 482°F
• Fiber Bundle Diameter: 2.3 mm
• Range with Sensor Type U_87__: 510 mm
• Range with Sensor Type U_88__: 340 mm
• Range with Sensor Type U_66__: 170 mm
• Range with Sensor Type U_55__: 85 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Fiber Distribution: separate fiber bundles
• Temperature Range: -13°F to 482°F
• Bending Radius: 60 mm
• Fiber-Optic Length L: 2 m
• Jacket Material: Stainless steel, V2A (1.4301/304)
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• End Sleeve No.: 37
• End sleeve shape: Angled
• Light Emission: sidewise
• Connection Type: XXX
• Weight: 183 g
• Scope of delivery: 1 × fiber-optic cable, 1 × optical mount for universal optics M, 1 × UEM18KU-02 sleeve nut
