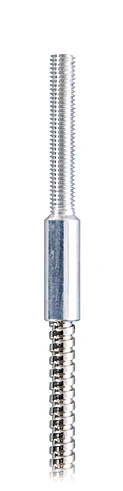

Wenglor 161-356-202 Glass Fiber-Optic Cable Reflex Mode

Features

• A broad range of applications are possible due to the modular system design
• Stock types deliverable at short notice
• Fiber Bundle Diameter: 1.6 mm
• Range with Sensor Type U_87__: 270 mm
• Range with Sensor Type U_88__: 180 mm
• Range with Sensor Type U_66__: 90 mm
• Range with Sensor Type U_55__: 45 mm
• Opening Angle: 68 °
• Fiber: Step Index
• Fiber Diameter: 50 µm
• Fiber Distribution: separate fiber bundles
• Temperature Range: -13°F to 356°F
• Bending Radius: 50 mm
• Fiber-Optic Length L: 0.5 m
• Jacket Material: Stainless steel, V2A (1.4301/304)
• Material End Sleeve: Stainless steel, V2A (1.4305/303)
• End Sleeve No.: 56
• End sleeve shape: Straight with shoulder and thread
• Light Emission: straight
• Connection Type: XXX
• Weight: 36 g
• Scope of delivery: 1 × fiber-optic cable
• Packaging unit: 1 Piece
