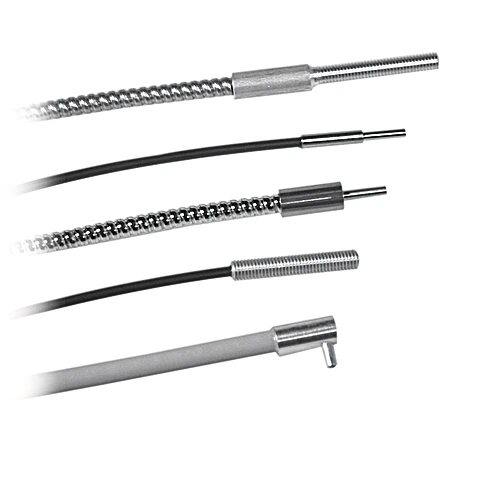

Wenglor 081-407-302 Glass Fiber-Optic Cable Reflex Mode

Glass Fiber-Optic Cable Reflex Mode.

$213.00
Part Number
  • 081-407-302
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Fiber Bundle Diameter: 0.8 mm
  • Range with Sensor Type ODX202: 20 mm
  • Range with Sensor Type ODX402: 25 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 61 µm
  • Fiber Distribution: statistical mixture
  • Temperature Range: -76°F to 356°F
  • Bending Radius: 20 mm
  • Fiber-Optic Length L: 0.5 m
  • Jacket Material: Metal-Silicone
  • Material End Sleeve: Stainless Steel
  • End Sleeve No.: 7
  • End sleeve shape: Straight without thread and with shoulder
  • Light Emission: straight
  • Weight: 112 g
  • Scope of delivery: 1 × fiber-optic cable
  • Packaging unit: 1 Piece
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
