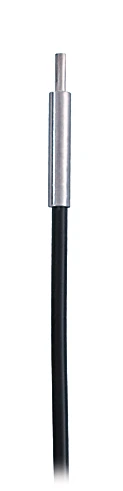

Wenglor 051-101-102 Glass Fiber-Optic Cable Reflex Mode

Glass Fiber-Optic Cable Reflex Mode.

$175.00
Part Number
  • 051-101-102
Highlights...

Features

  • A broad range of applications are possible due to the modular system design
  • Stock types deliverable at short notice
  • Fiber Bundle Diameter: 0.5 mm
  • Range with Sensor Type U_88__: 16 mm
  • Range with Sensor Type U_66__: 8 mm
  • Range with Sensor Type U_55__: 4 mm
  • Opening Angle: 68 °
  • Fiber: Step Index
  • Fiber Diameter: 50 µm
  • Fiber Distribution: statistical mixture
  • Temperature Range: -13°F to 176°F
  • Bending Radius: 21 mm
  • Fiber-Optic Length L: 0.5 m
  • Jacket Material: PVC
  • Fiber Optic Material: Glass
  • Material End Sleeve: Stainless steel, V2A (1.4305/303)
  • End Sleeve No.: 1
  • End sleeve shape: Straight with shoulder
  • Light Emission: straight
  • Connection Type: XXX
  • Weight: 18 g
  • Scope of delivery: 1 × fiber-optic cable
Glass fiber optic cables are very flexible and can be used in applications with less space. Especially in applications with hot environment the metal casing fiber optic cables are the answer.
