SICK sensingCam SEC100 Series Machine Vision Camera
Machine vision camera with 5 megapixel color sensor, RTSP or MJPEG stream, integrated web server. IP65 rating.
Effective August 29th, 2025 SICK has added a 9.8% surcharge for all of their products. The surcharge will appear as a separate line item on each sales order.
Highlights...
Overview
Features
- Technology: 2D snapshot, streaming, event recording
- Sensor: CMOS Color
- Shutter technology: rolling-shutter
- Sensor resolution: 2880 px x 1616 px (5 MP)
- Working distance: 0.3 to 10 m
- Field of view: 82° x 52°
- Memory: 6 GB, internal memory or FTP upload
- Livestream:
- Scan/frame rate: 5 to 30 fps
- Video protocol: RTSP, MJPG
- Video compression: H.264, H.265, Motion JPEG
- configurable compression level
- Image capture: JPEG, BMP
- Digital input / software trigger: REST API, TCP/IP
- Protection rating: IP65

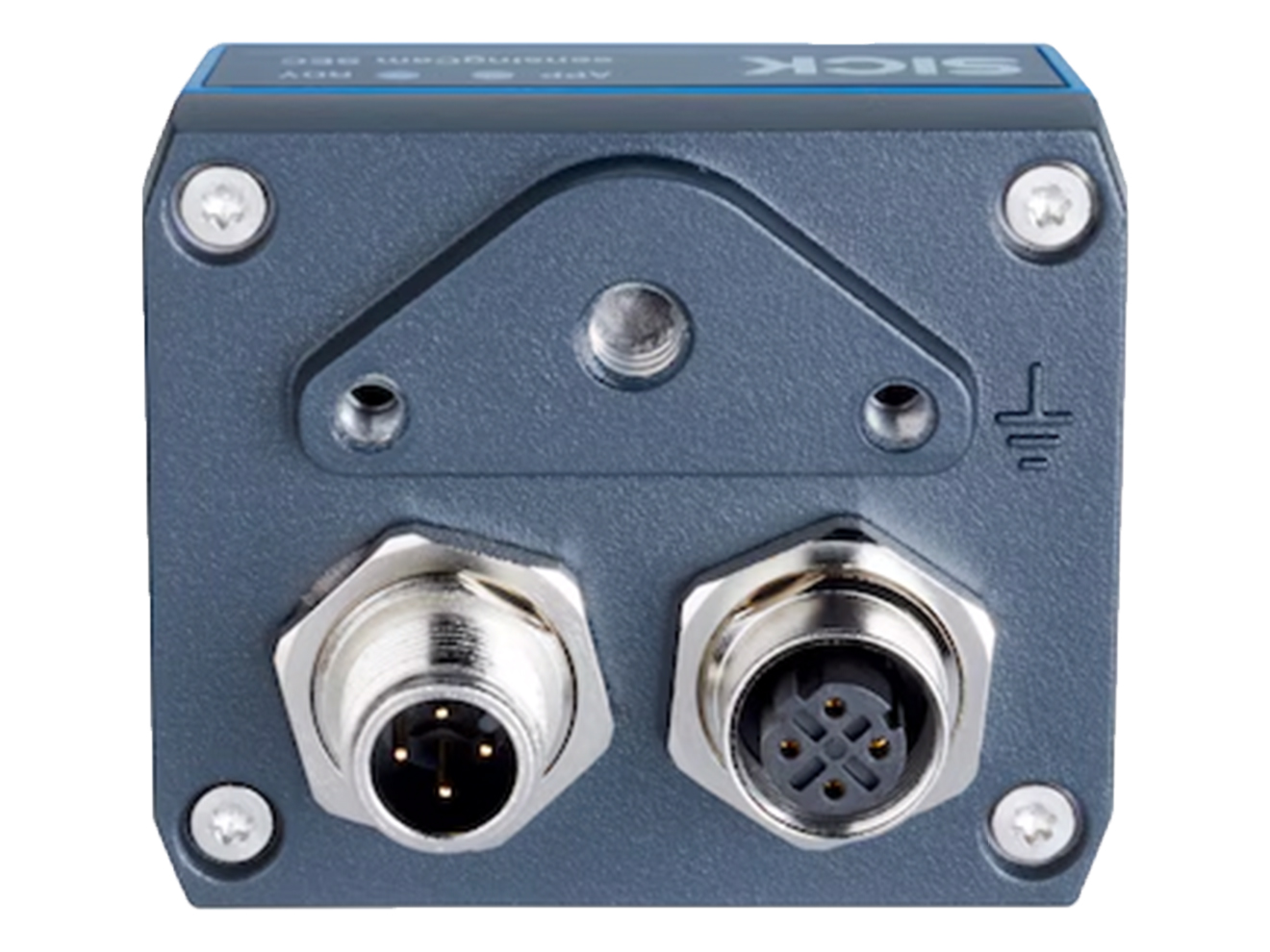

- M12 connection
Description
The Sick sensingCam SEC100 Series Machine Vision Camera is a streaming camera for process monitoring, documentation, and error analysis across industrial applications. The livestream function offers real-time critical process and blind spot monitoring. The integrated image recording permits JPEG and BMP file generation for quality documentation. In the event of unplanned machine stops and sporadic errors, the SEC110 variant offers event recording before and after a trigger signal for rapid root cause analysis. The 0.3 to 10m working range and 6 GB memory offers versatility in installation site and use cases. M12 connections, with mounting via M4 screws or 1/4 in camera thread.
