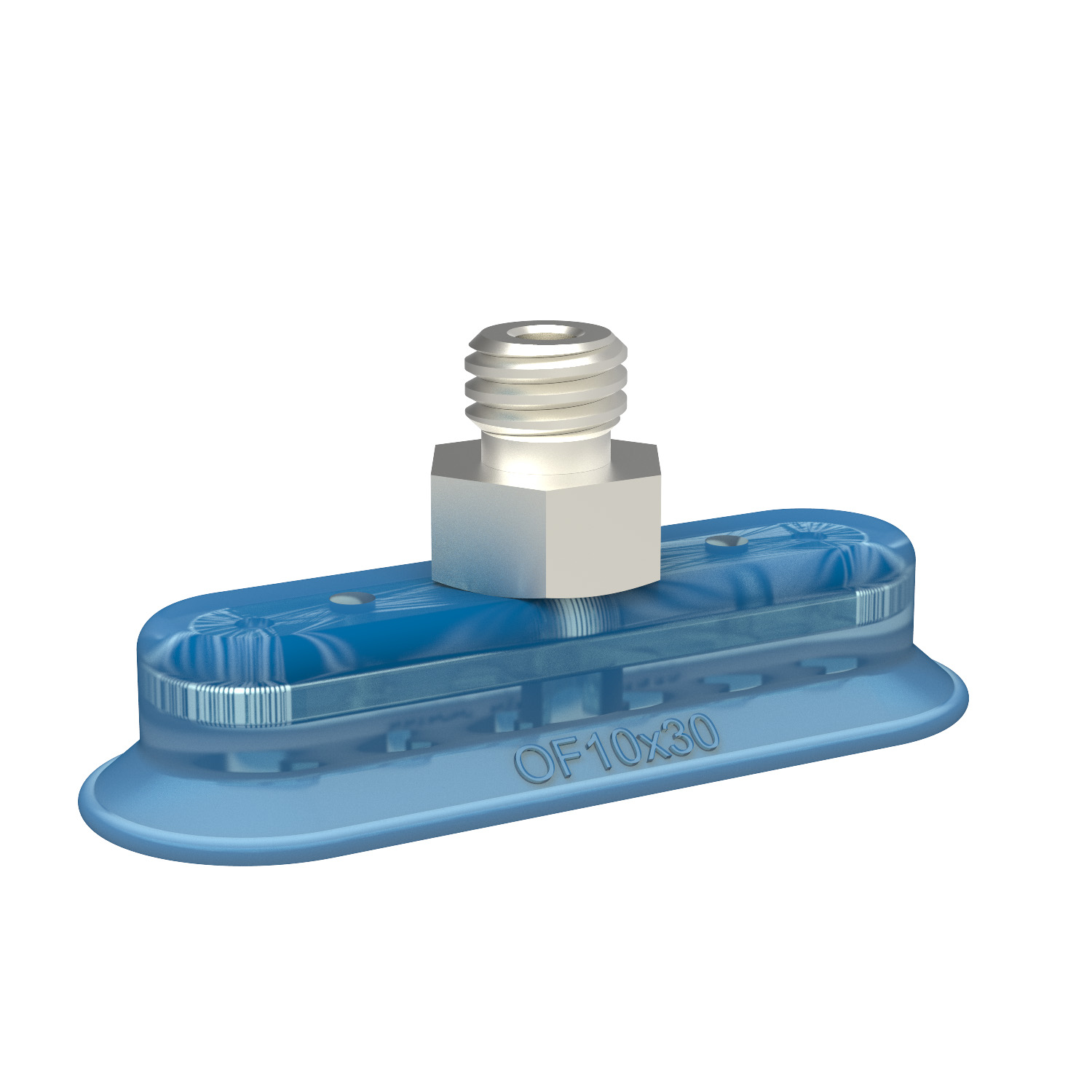

Piab Suction cup OF10x30P Polyurethane 50, M5 male

This program of oval suction cups has characteristics that are specially suited for handling of metal-sheet material.

$28.95
Part Number
  • OF10X30P.4D.13UA
Highlights...

Features

  • Suitable for flat and rough surfaces.
  • Fair stability and little inherent movement.
  • Recommended when the lifting force is parallel to the surface of the object.
  • Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel to the surface of the object.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
  • Material: Polyurethane (PU)

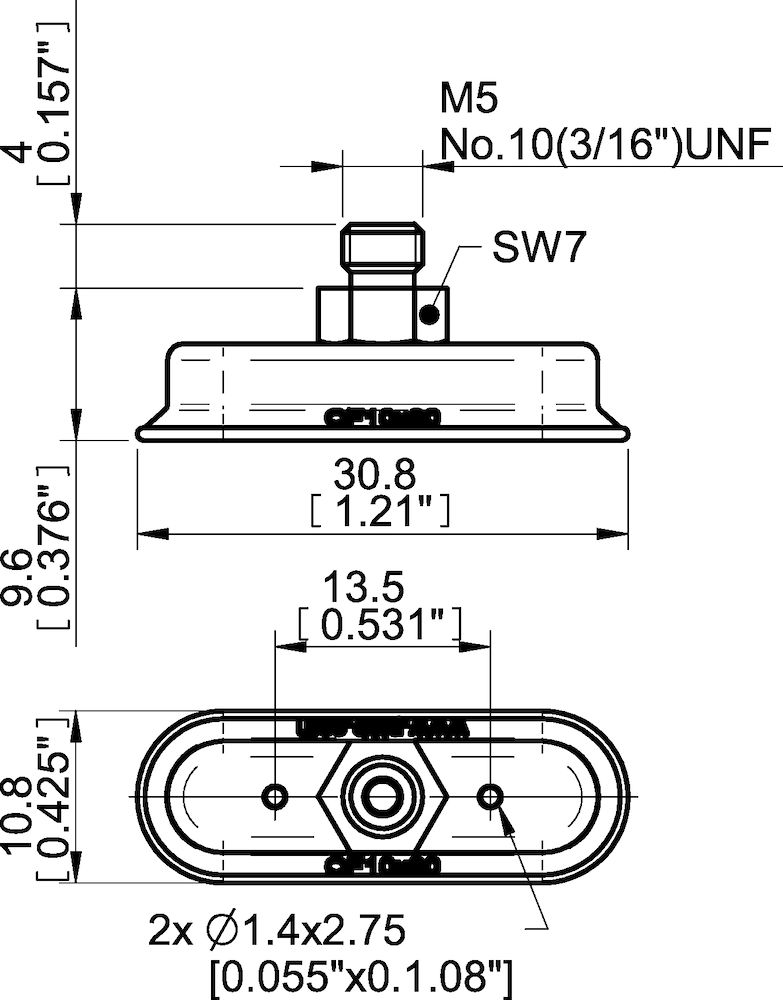

  • Dimensions: 1.21 in. (depth) x 0.43 in. (width) x 0.57 in. (length), 0.01 lb. (weight)
  • Fitting Size: M5 mm.
