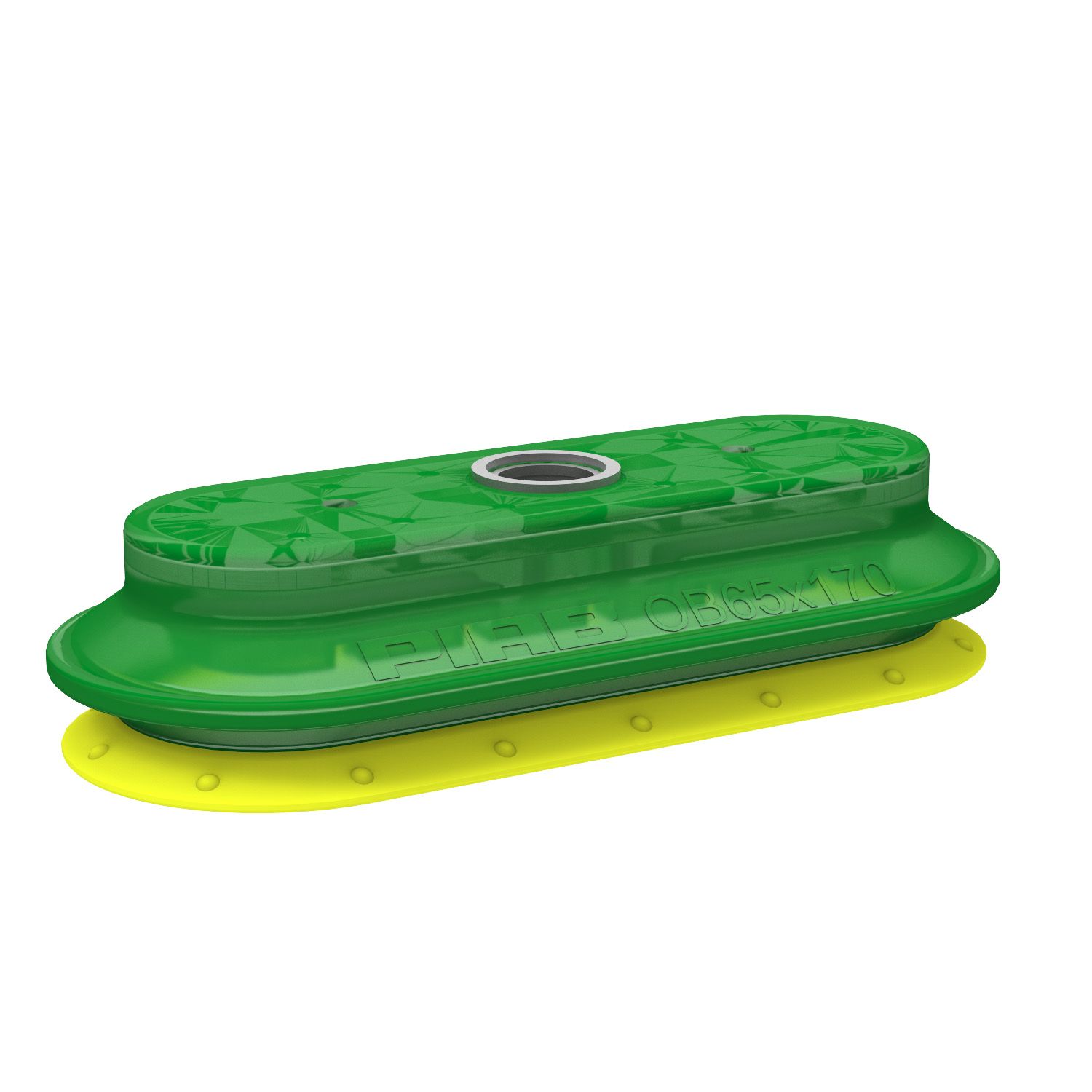

Piab Suction cup OB65x170P Polyurethane 30/60 with collar for Vacuum Gripper System (VGS)

The oval suction cups are suitable for handling of long and narrow objects and surfaces when maximum lifting force is desired. Oval suction cups are specially suitable for irregular surfaces and when level compensation is desired. This program of oval suc.

$179.39
Part Number
  • OB65X170P.5K
Highlights...

Features

  • Suitable for level adjustment. Can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • Lifting movement to separate small and thin objects.
  • Dual hardness allowing strength and stability in conjunction with softness and flexibility.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
  • Material: Polyurethane (PU)

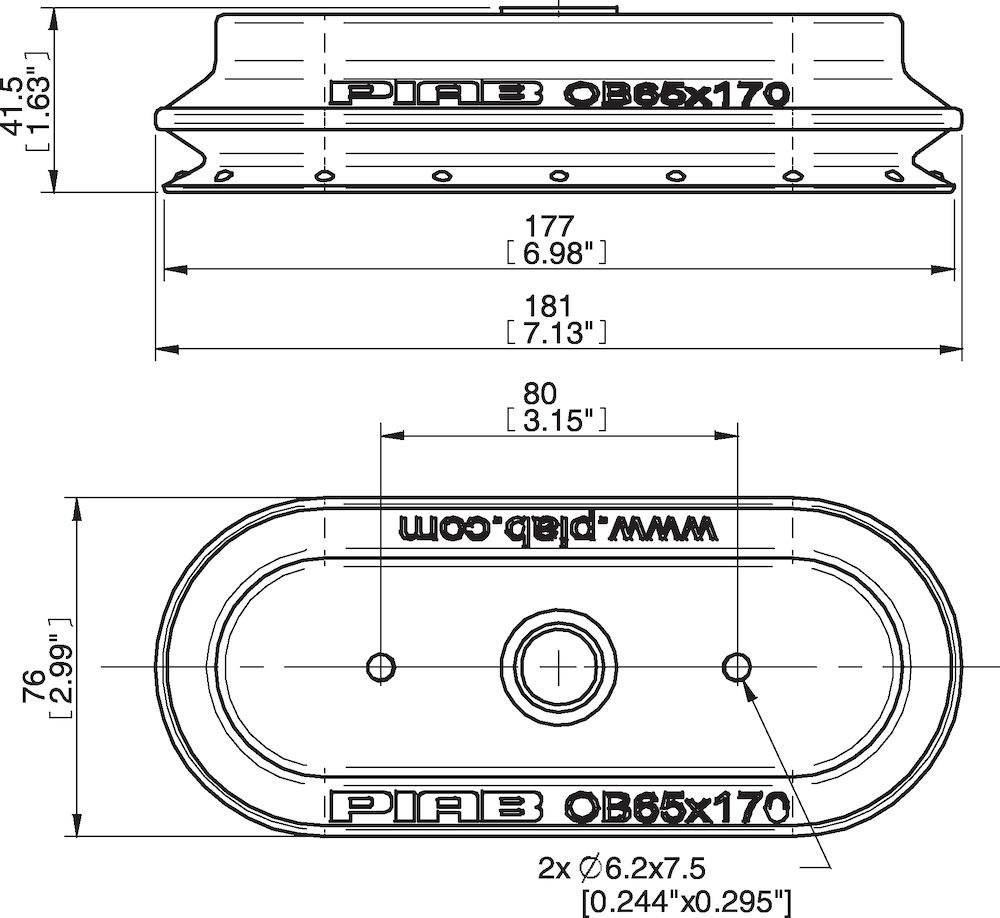

  • Dimensions: 6.97 in. (depth) x 2.99 in. (width) x 1.63 in. (length), 0.53 lb. (weight)
  • Fitting Size: None mm.
