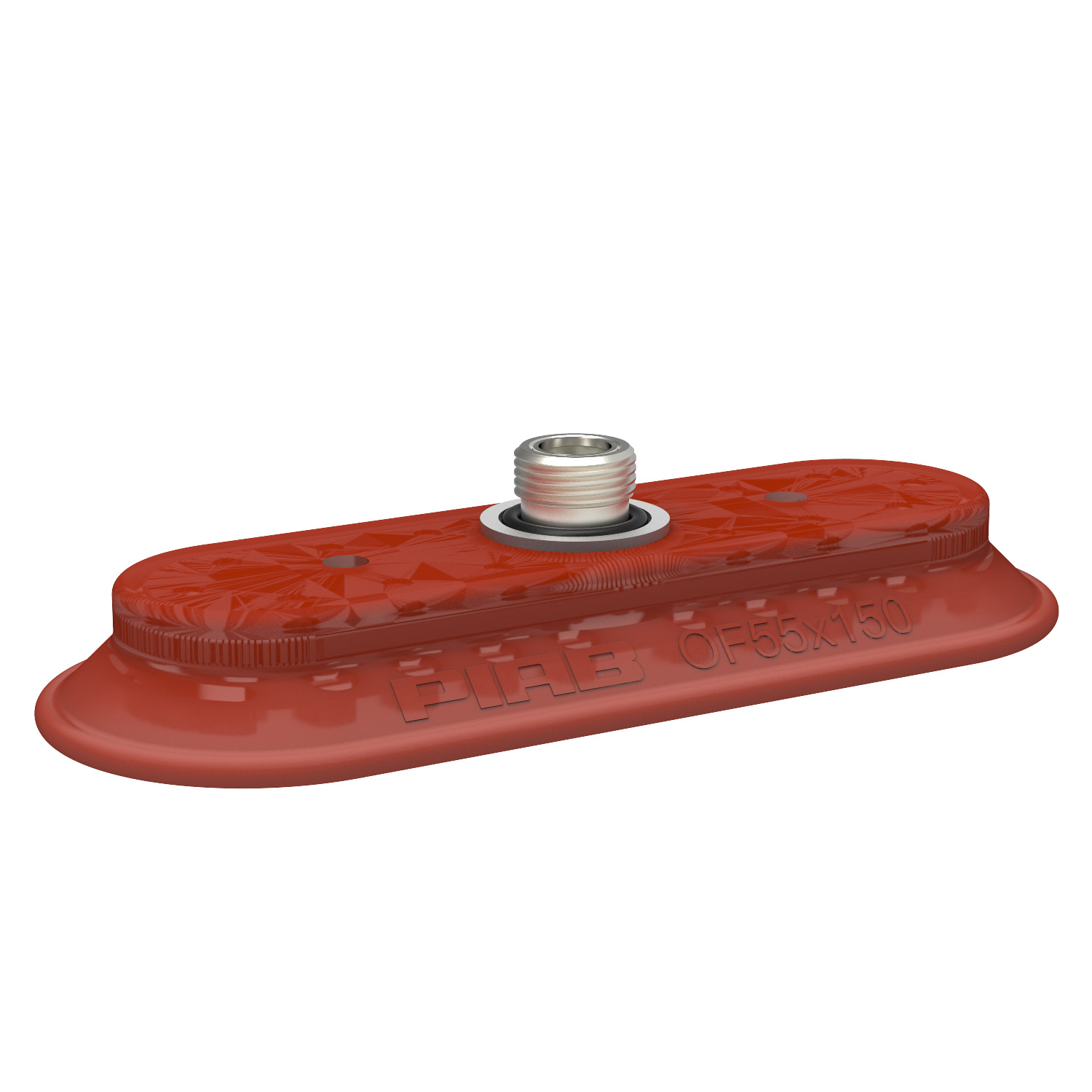

Piab Suction cup OF55x150P Polyurethane 40, thread insert G3/8" with mesh filter for Vacuum Gripper

This program of oval suction cups has characteristics that are specially suited for handling of metal-sheet material.

$70.17
Part Number
  • OF55X150P.5C.G40M
Highlights...

Features

  • Suitable for flat and rough surfaces.
  • Fair stability and little inherent movement.
  • Recommended when the lifting force is parallel to the surface of the object.
  • Cleats prevent thin, sensitive objects from being deformed and give extra friction when the lifting force is parallel to the surface of the object.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
  • Material: Polyurethane (PU)

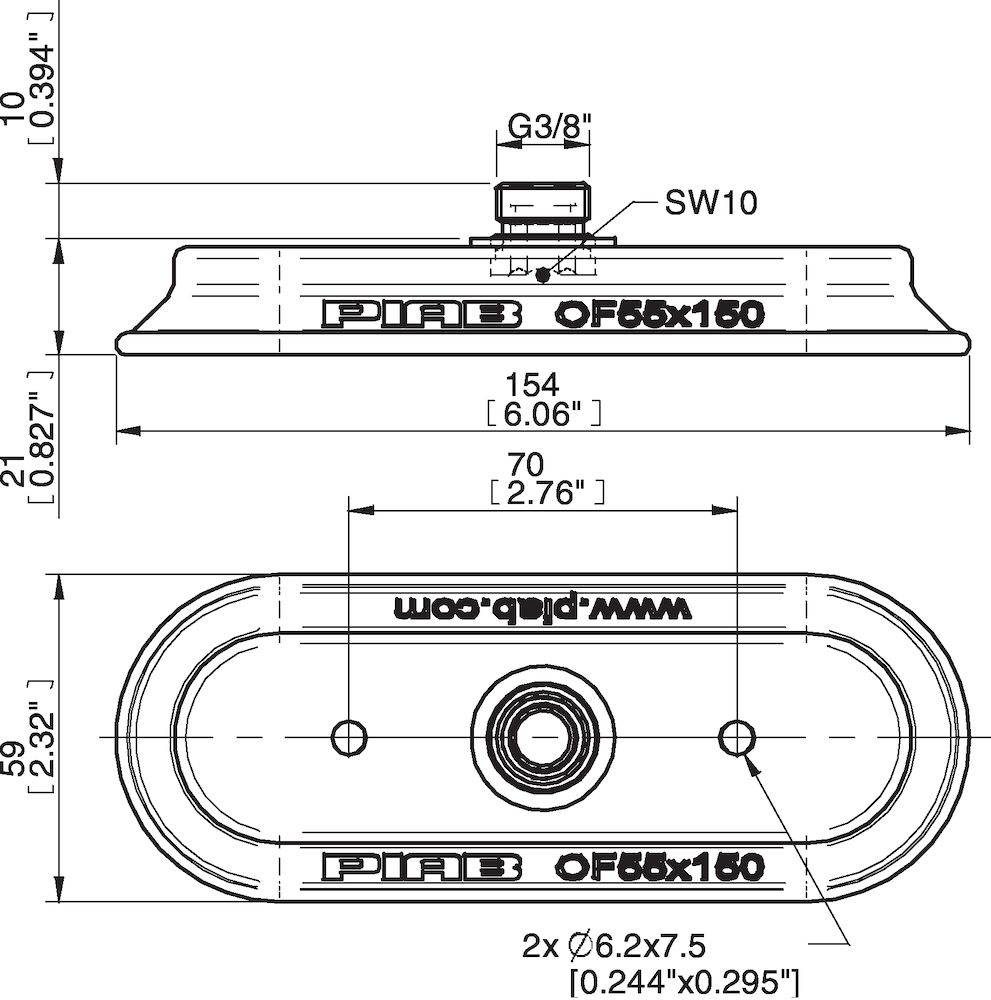

  • Dimensions: 6.06 in. (depth) x 2.32 in. (width) x 1.22 in. (length), 0.24 lb. (weight)
  • Fitting Size: 38 mm.
