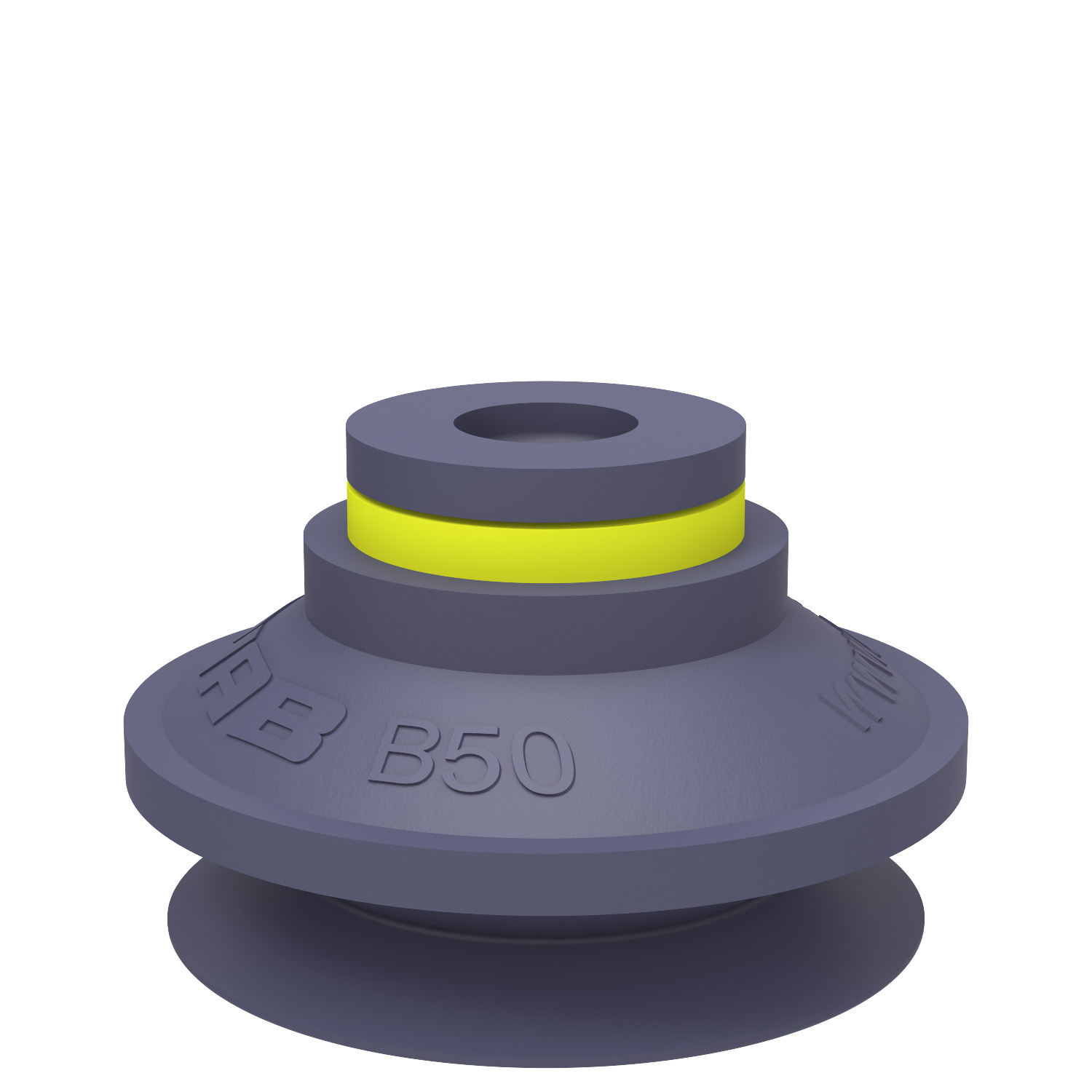

Piab Suction cup B50 HNBR

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$29.07
Part Number
  • B50.37
Highlights...

Features

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
  • Material: HNBR

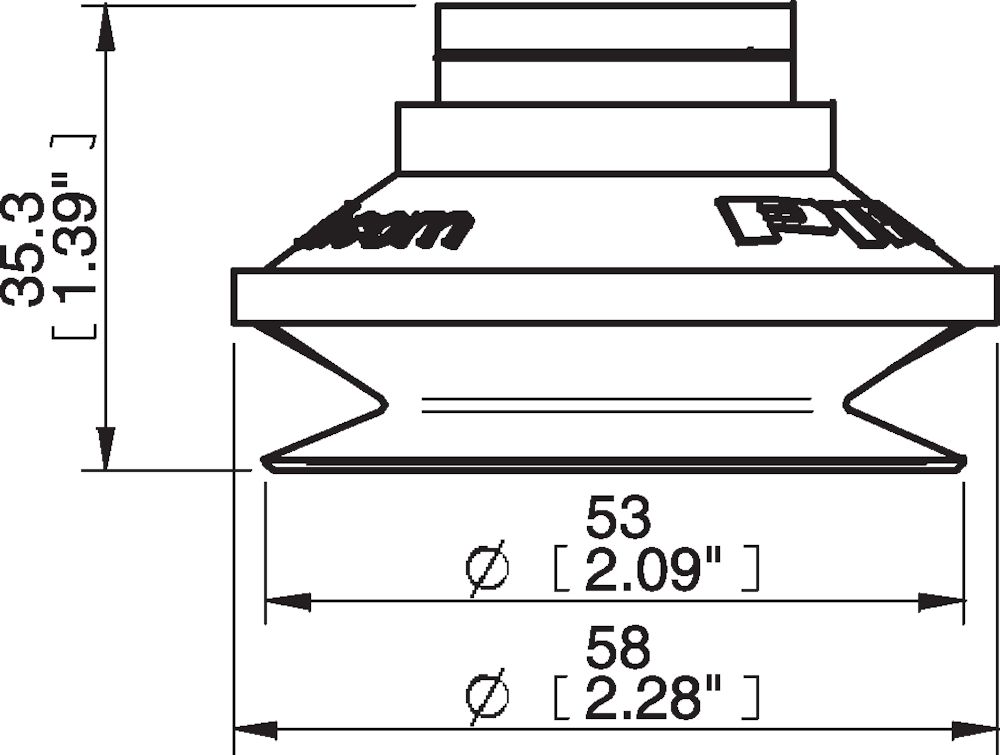

  • Dimensions: 1.39 in. (length), 0.04 lb. (weight)
  • Fitting Size: None mm.
