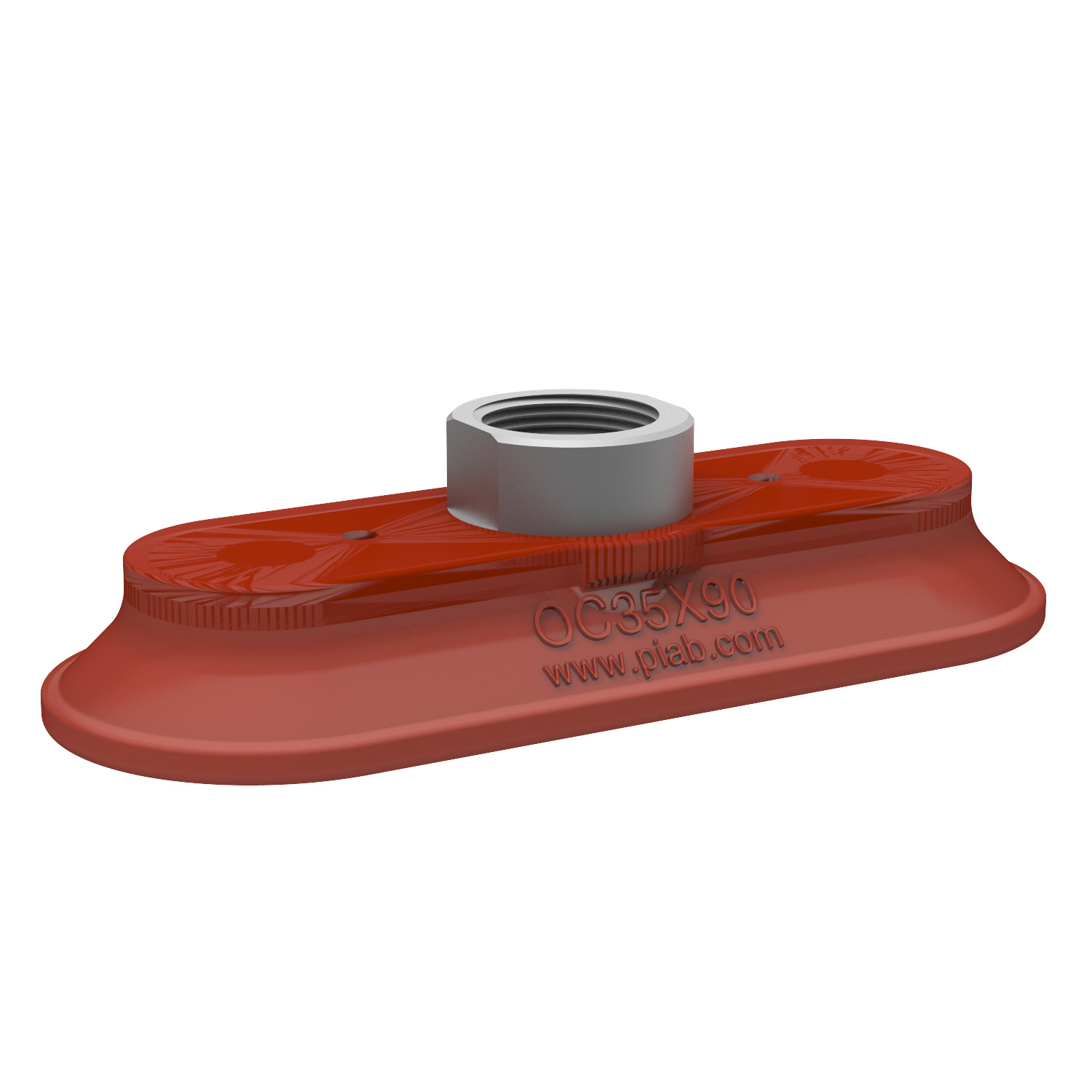

Piab Suction cup OC35x90P Polyurethane 40, 3/8" NPSF female

Suitable for oblong objects with slightly domed or flat and oily surfaces, such as those encountered in body parts in the automotive industry. DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and.

Call for pricing
Part Number
  • OC35x90P.4C.39UB
Highlights...

Features

  • Suitable for oblong objects with slightly domed or flat and oily surfaces, such as those encountered in body parts in the automotive industry.
  • DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled.
  • Fitting option, male G3/8", with a swivel function prior to the locking operation, for easy positioning of the oval cup.
  • Material: Polyurethane (PU)
  • Dimensions: 3.70 in. (depth) x 1.46 in. (width) x 0.87 in. (length), 0.06 lb. (weight)
  • Fitting Size: 38 mm.
