Piab Suction cup B110-2 Nitrile-PVC with filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$52.08
Part Number
  • B110-2.30
Highlights...

Features

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • Lifting movement to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
  • Filter disk made of PE.
  • Material: Nitrile-PVC (NPV)

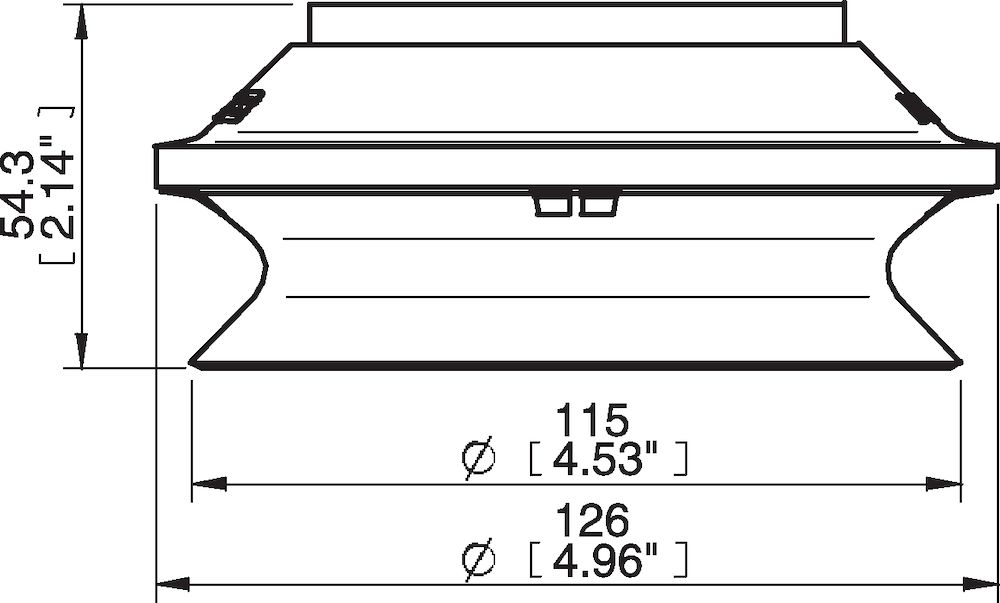

  • Dimensions: 2.14 in. (length), 0.26 lb. (weight)
  • Fitting Size: None mm.
