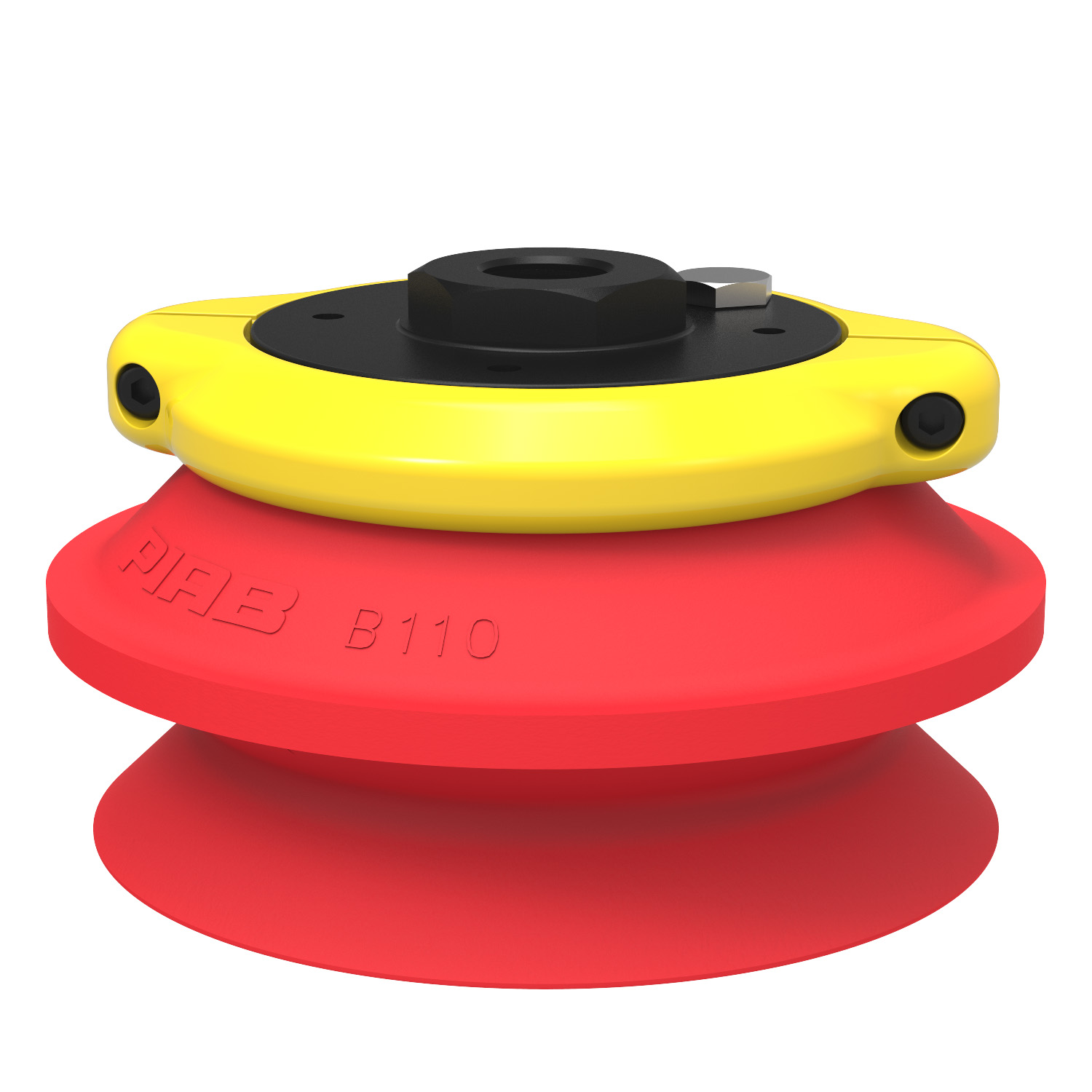

Piab Suction cup B110 Silicone, G3/8" female, clamp ring with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$143.66
Part Number
  • B110.20.11NA
Highlights...

Features

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
  • Material: Silicone (SIL)

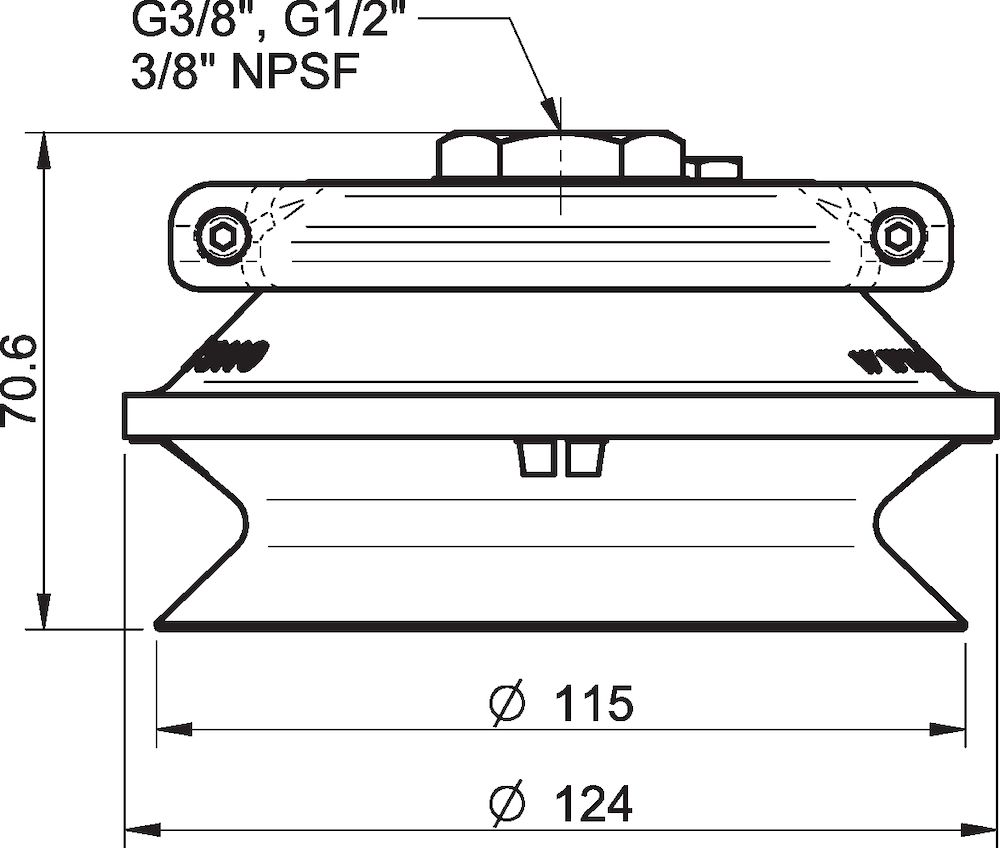

  • Dimensions: 2.78 in. (length), 0.26 lb. (weight)
  • Fitting Size: 38 mm.
