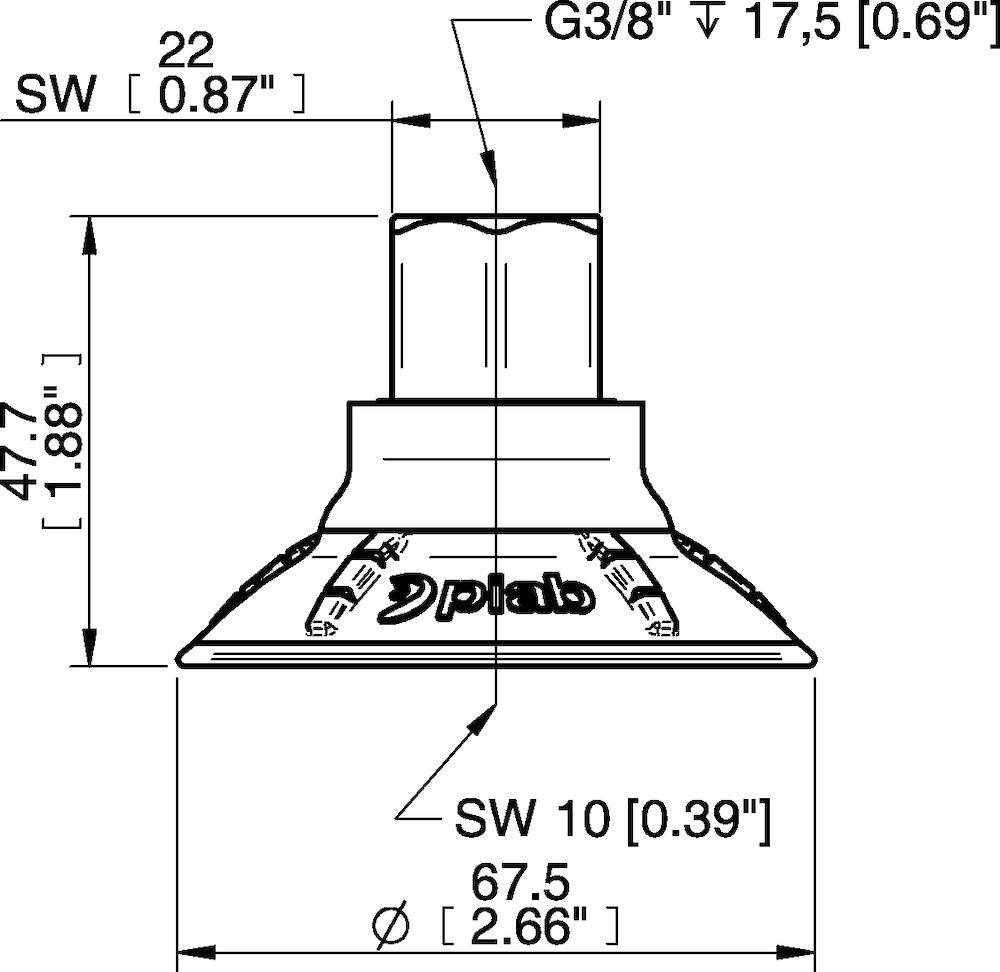

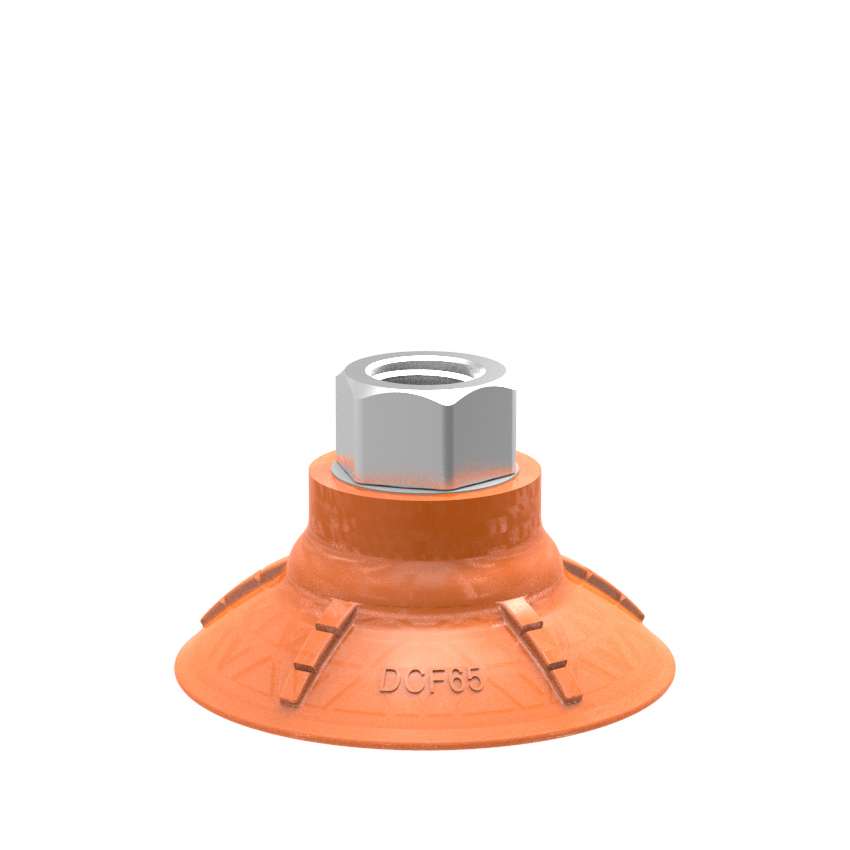

Piab Suction cup DCF65P Polyurethane 60 G3/8" female with mesh filter, 17 mm thread

Features

• Special designed friction cups for domed or flat oily surfaces, such as sheets in metal forming processes.
• Long lasting material, normal wear on friction cup will not affect the long term shear force performance.
• Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
• Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
• Thin design that easily will follow convex or concave surfaces. The thin and pliable design in combination with a special inner friction pattern will maximize grip performance.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
• Material: Polyurethane (PU)
• Dimensions: 1.88 in. (length), 0.18 lb. (weight)
• Fitting Size: 38 mm.
