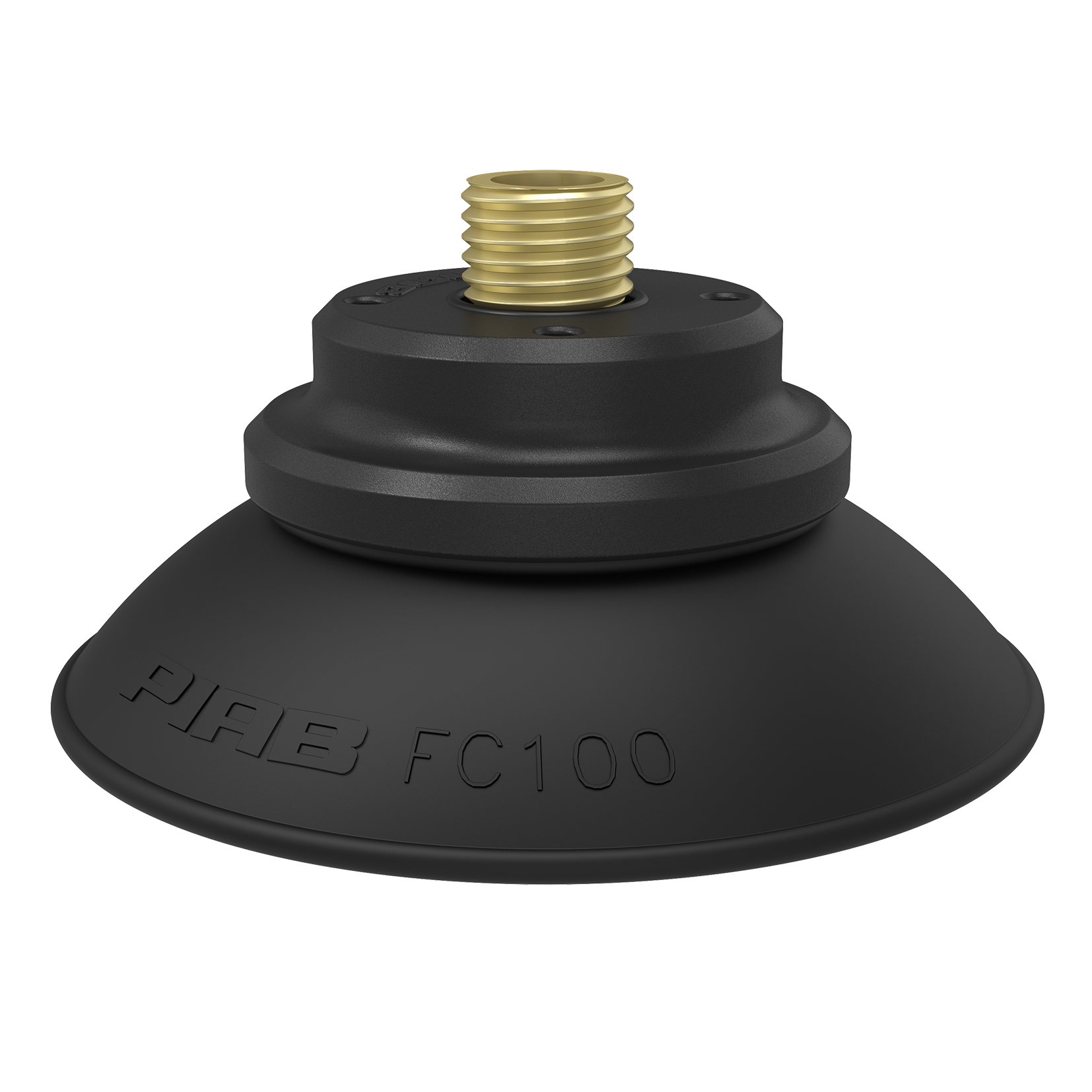

Piab Suction cup FC100 Nitrile-PVC 60, G3/8" male

DURAFLEX® suction cups have been developed to meet the strict demands of the automotive industry. A typical application is the feeding of sheet metal into a press tool. The slightly curved shape and internal cleats provide a good grip and the strengthened.

Call for pricing
Part Number
  • FC100 3/8"
Highlights...

Features

  • Suitable for slightly domed and flat and oily surfaces, e.g., such as those encountered when handling steel sheets in press processes.
  • Thanks to the high friction of the rubber material, the suction cups can withstand high forces at rapid accelerations in horizontal directions, even on oily surfaces.
  • The suction cups have cleats that prevent thin objects from being disfigured.
  • DURAFLEX® material features the elasticity of rubber in combination with the wear resistance of polyurethane.
  • The DURAFLEX® material is mark-free.
  • Material: Nitrile-PVC (NPV)
  • Dimensions: 2.05 in. (length), 0.29 lb. (weight)
  • Fitting Size: 38 mm.
