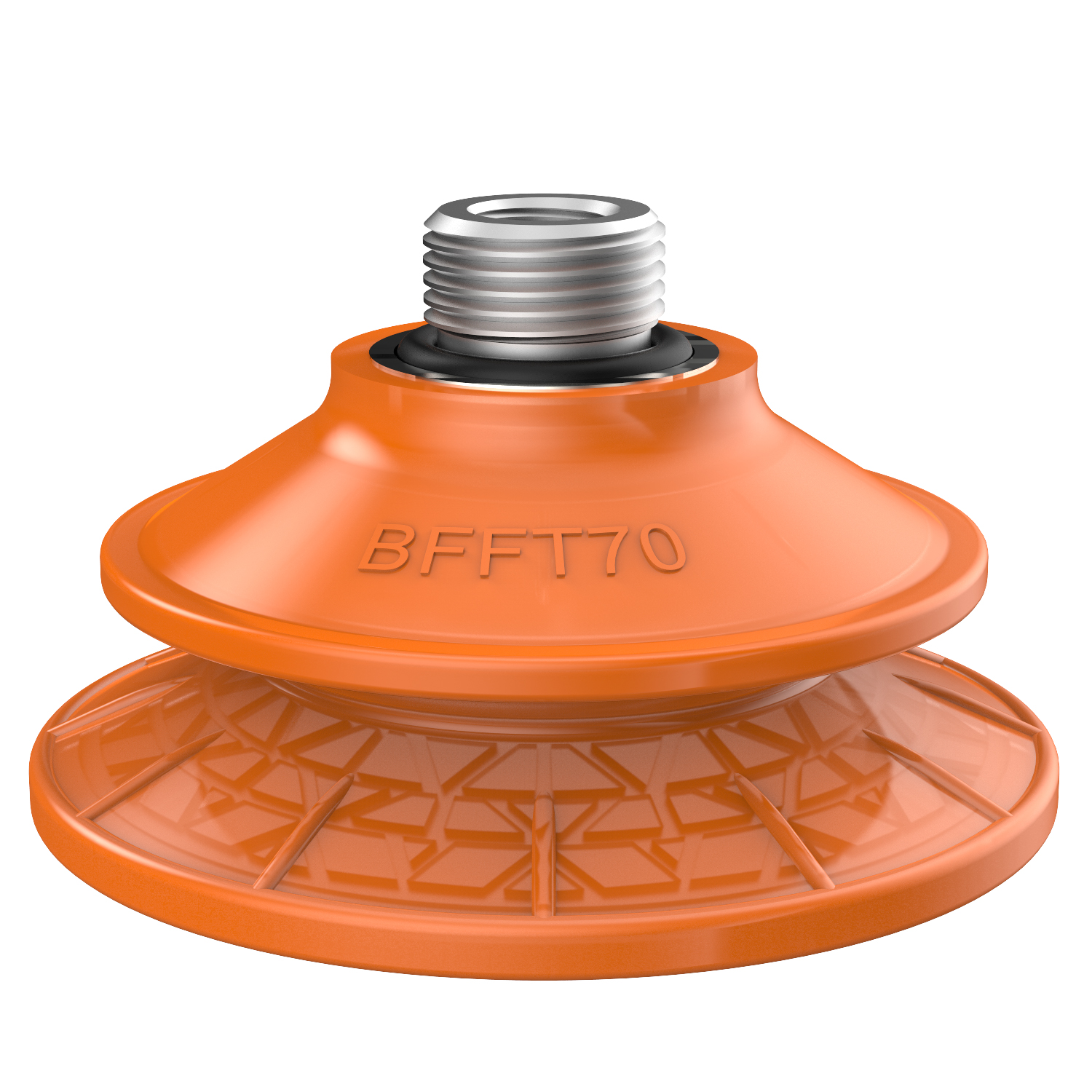

Piab Suction cup BFFT70P Polyurethane 60/60/30, G3/8" male, 1/8" NPSF female, with mesh filter

Features

• Special designed friction cups for thin (0.6-0.8 mm) oily metal sheets, such as outer body car parts in a press-to press forming process.
• Long lasting material, normal wear on friction cup will not affect the long term grip performance.
• Refined internal friction pattern provides additional grip performance, the suction cups can withstand high shear forces, typically 3–5 times more than corresponding conventional suction cups.
• Best choice if > 0.1g/m2 press oil is used on the sheet but also a great choice for dry metal sheets.
• The "BFFT" design is suitable for thin flat or uneven/curved surfaces and if level compensation is needed, for example in de-stacking applications.
• The flat inner support, made of dual hardness, gives stability and good grip during movement in any orientation.
• DURAFLEX® suction cups manufactured in a specially developed material that features the elasticity of rubber and wear resistance of polyurethane. The material does not leave any marks on the objects handled and has a fantastic elastic memory, even after hundreds of thousands of cycles.
• Material: Polyurethane (PU)
• Dimensions: 1.63 in. (length), 0.13 lb. (weight)
• Fitting Size: 18;38 mm.
