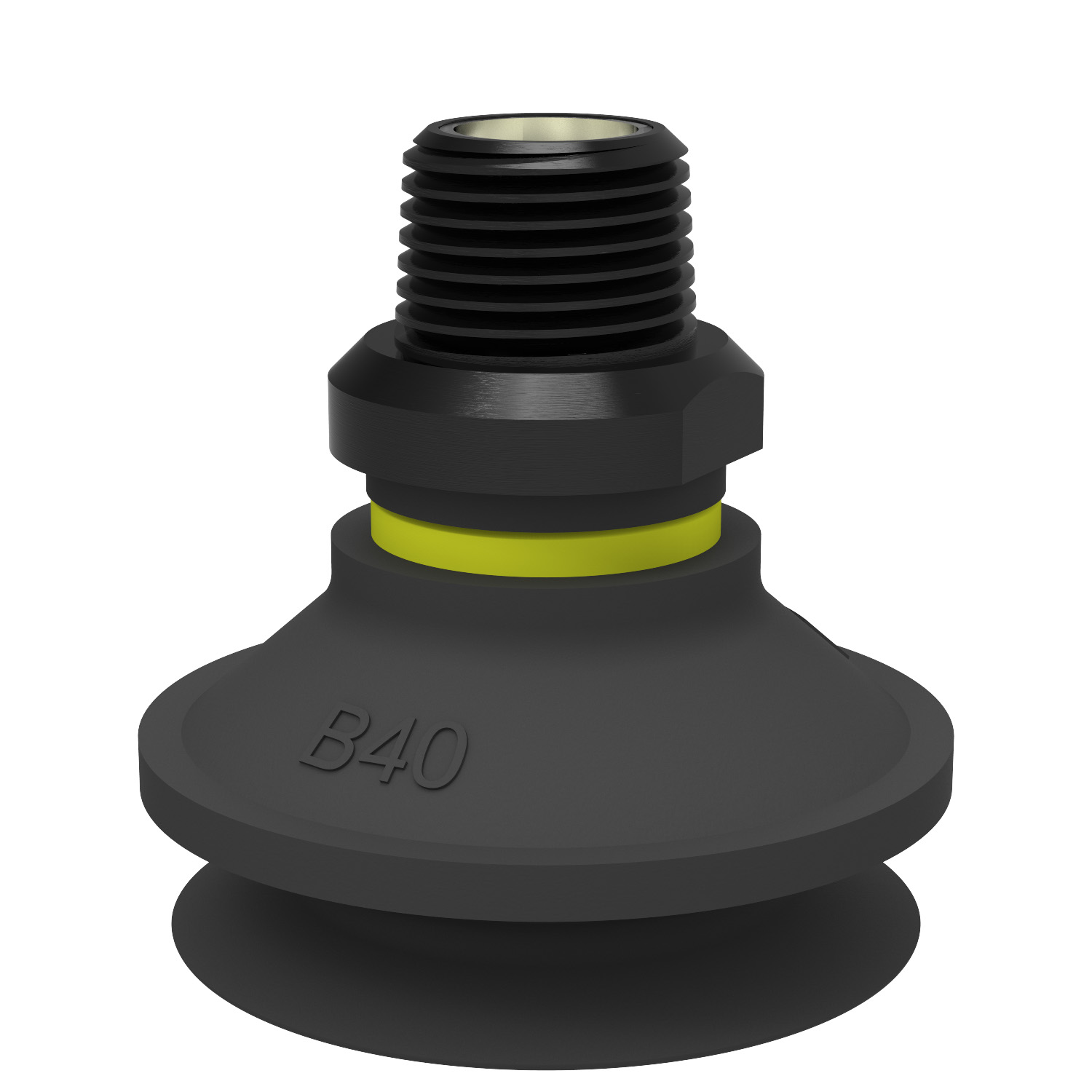

Piab Suction cup B40 Chloroprene, 3/8" NPT male, with mesh filter

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, chloroprene, HNBR .

$25.94
Part Number
  • B40.10.04AE
Highlights...

Features

  • Suitable for level adjustment. Several short bellows in one lifting device can handle objects with height differences and varying shapes, for example embossed or corrugated plates.
  • The lifting movement can be used to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface of the object, in order to achieve good precision and safe lifting movement.
  • Material: Chloroprene (CR)
  • Dimensions: 1.73 in. (length), 0.02 lb. (weight)
  • Fitting Size: 38 mm.
