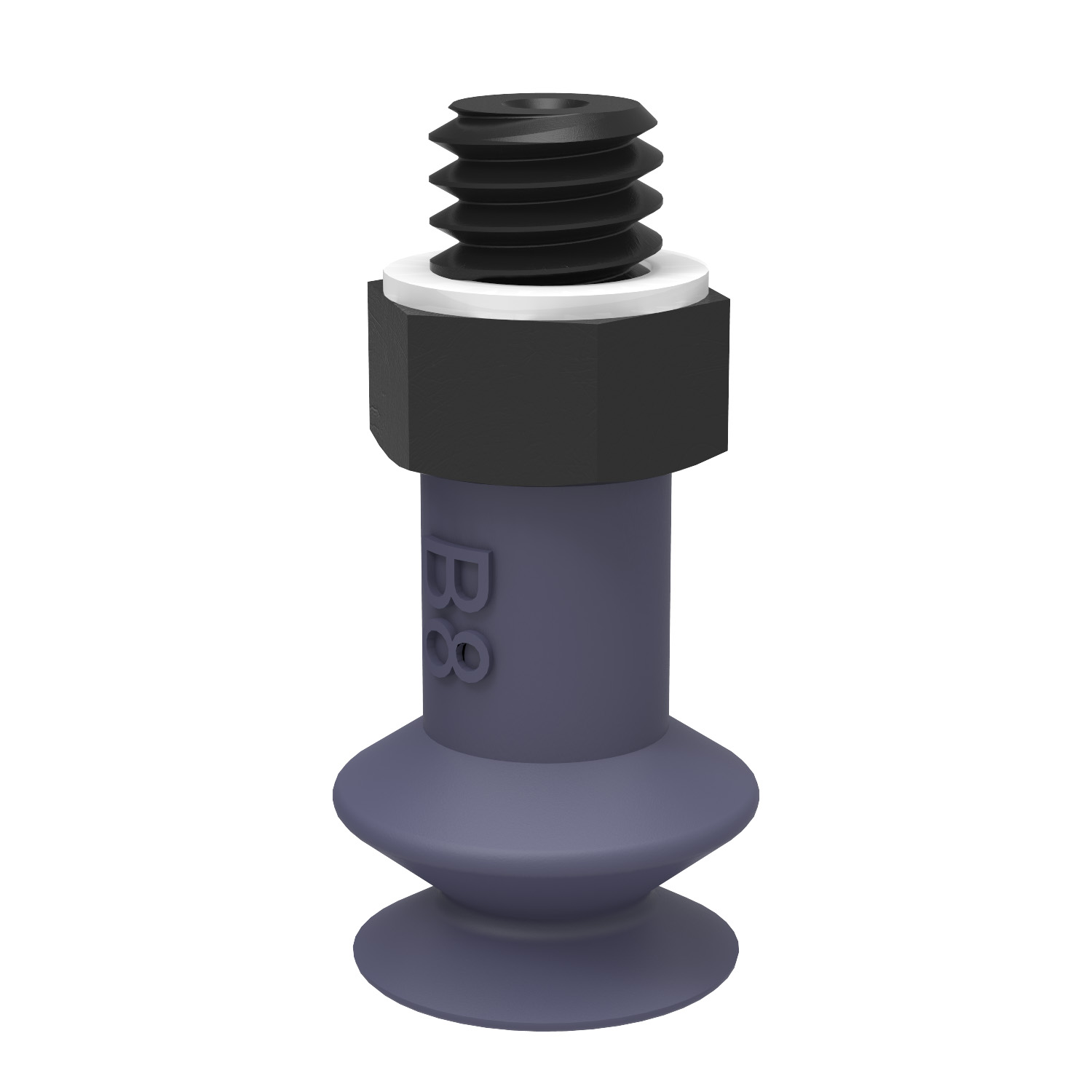

Piab Suction cup B8 HNBR, M5 male

Several short bellows cups in one lifting device can handle objects with height differences and varying shapes. The bellows also provide a slight lifting movement to separate thin items. Materials used are silicone, conductive silicone, semi-conductive EP.

$10.08
Part Number
  • B8.47.01AB
Highlights...

Features

  • Lifting movement to separate small and thin objects.
  • Only lightweight objects should be handled when the lifting force is parallel to the surface.
  • Suitable for level adjustment.
  • Suction cups of conductive silicone and semi-conductive EPDM are suitable for objects with sensitivity to static electricity.
  • Material: HNBR

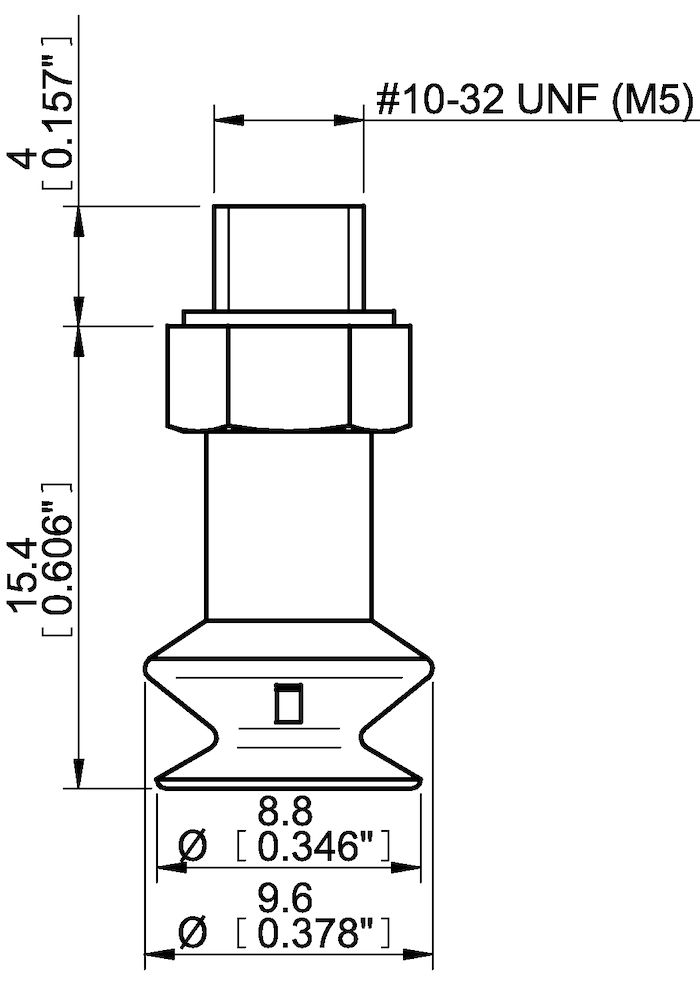

  • Dimensions: 0.76 in. (length), 0 lb. (weight)
  • Fitting Size: None mm.
